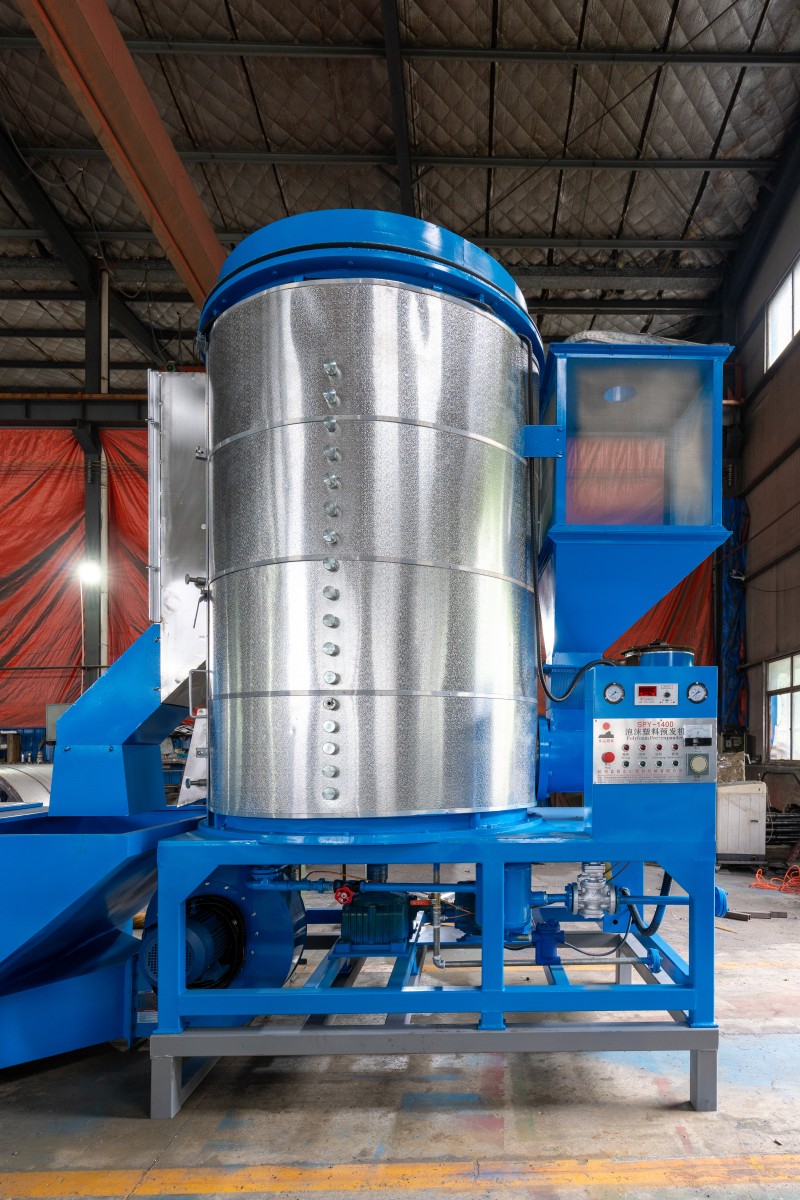

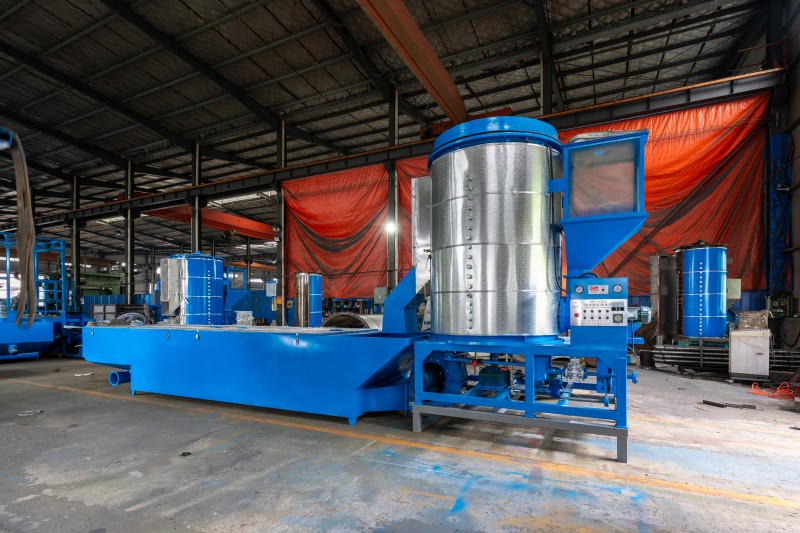

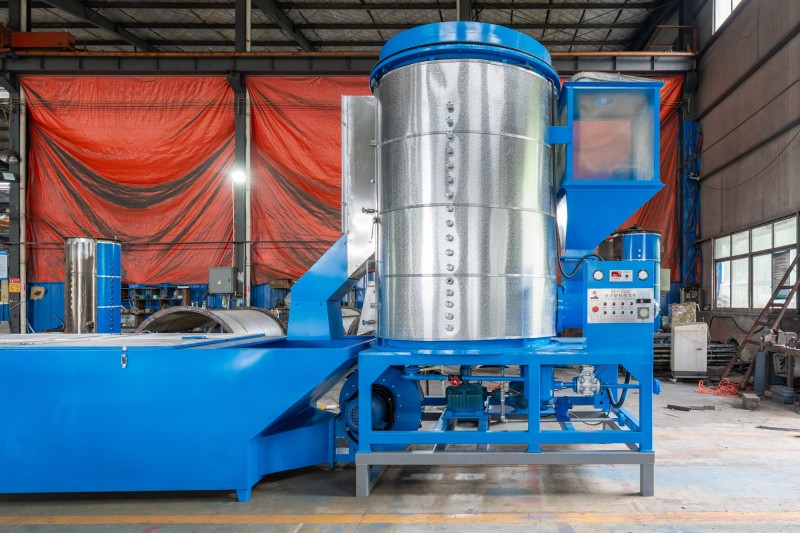

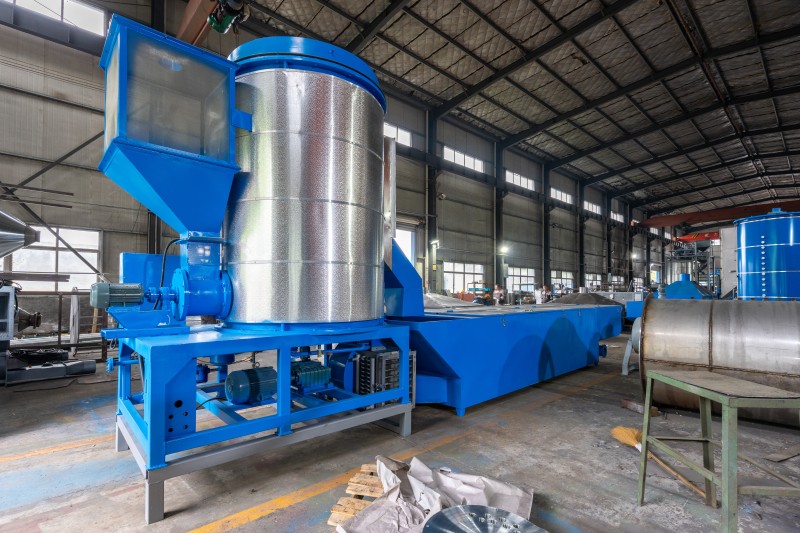

EPS Continuous Pre-Expander Machine Dongshan Plastic Machinery

The EPS continuous pre-foaming machine independently developed by Dongfeng Plastic Machinery is specially designed for high-efficiency foam production.

The equipment uses advanced steam heating and vacuum control technology to achieve uniform expansion and stable production of EPS particles, ensuring excellent quality of foam particles.

The whole machine has compact structure, easy operation, energy saving and environmental protection, and is suitable for large-scale EPS foam packaging, mold filling and the production of various foam products.

Dongshan Plastic Machinery Continuous Pre-foaming Machine not only improves production efficiency, but also significantly reduces labor costs. It is an ideal high-performance equipment choice for modern EPS production companies.

Products Detail

Control System

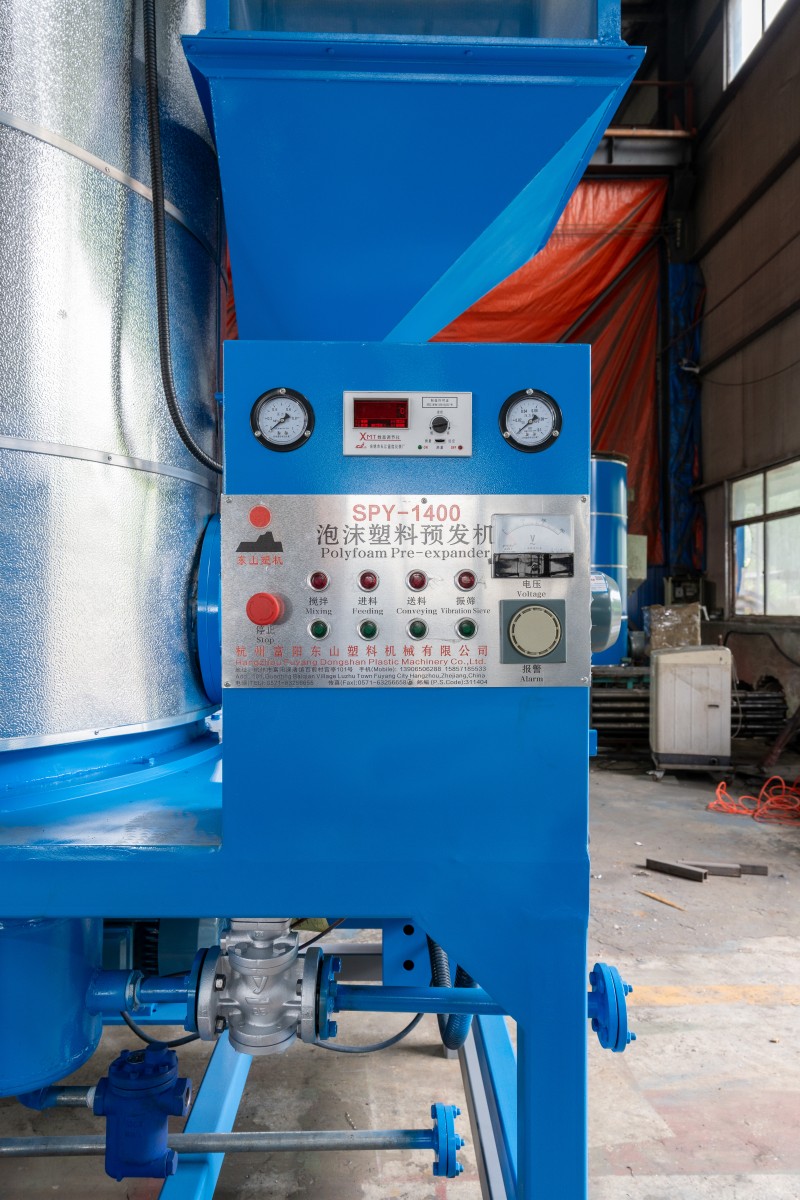

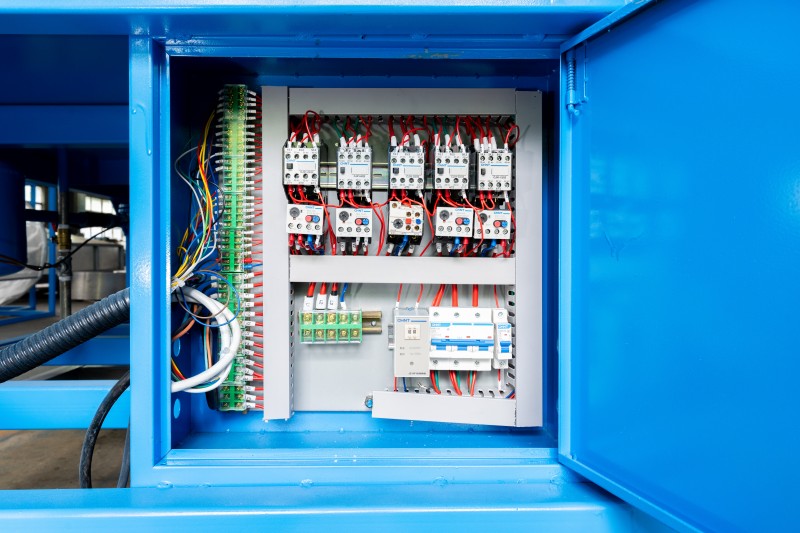

Instrument control cabinet, automatic operation, convenient maintenance.

Structure Design

Stainless steel and insulation measures

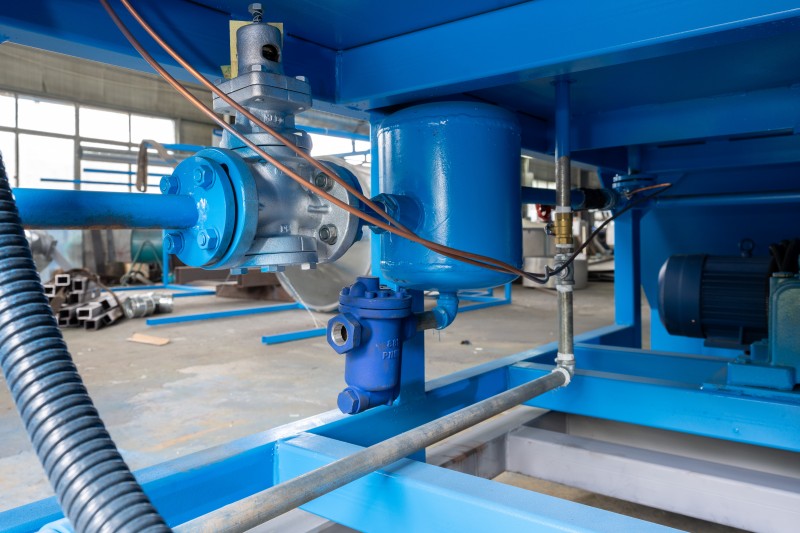

Set steam pressure reducing valve by user’s option.

Processes

Primary feed device and secondary feed device

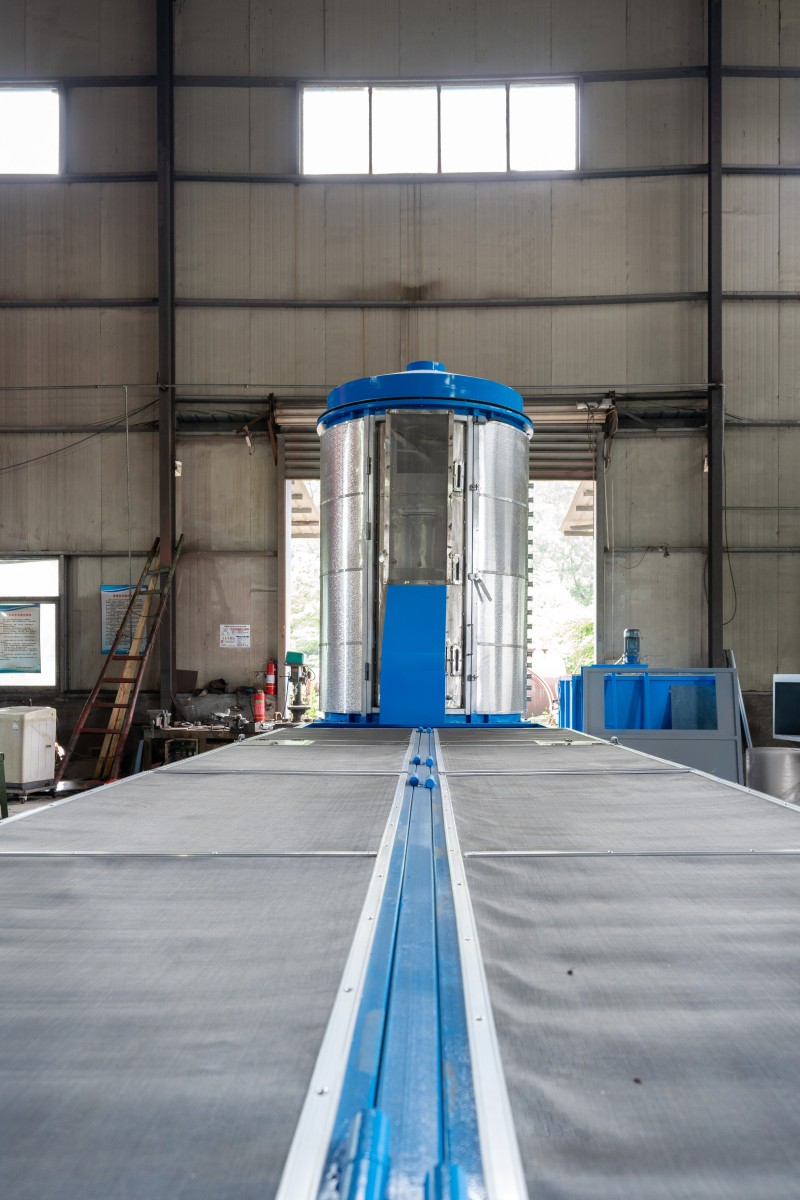

The EPS beads are fed into the fluidized drying bed (optional) by the feeding, foaming, and then enter the curing silo through the fan conveying device to complete the foaming process of the raw material. The above process can be circulated.

Production Efficiency

Stable quality and high production efficiency
Relatively uniform production density for 7-35kg/ m³
Energy saving

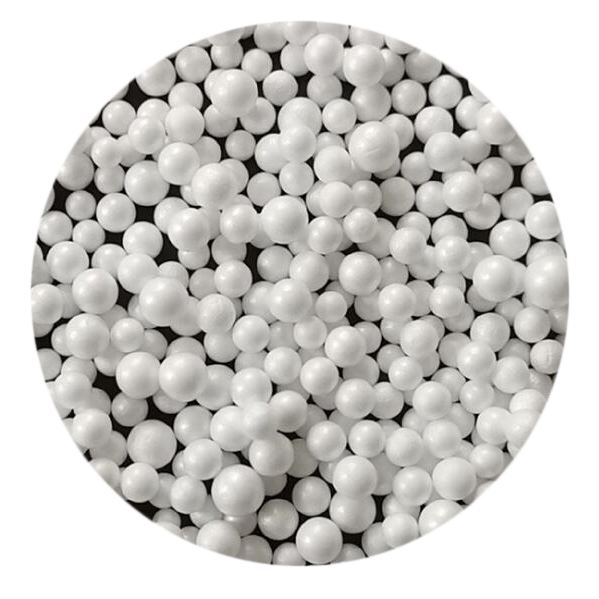

EPS foaming pellet4(1).png

Application

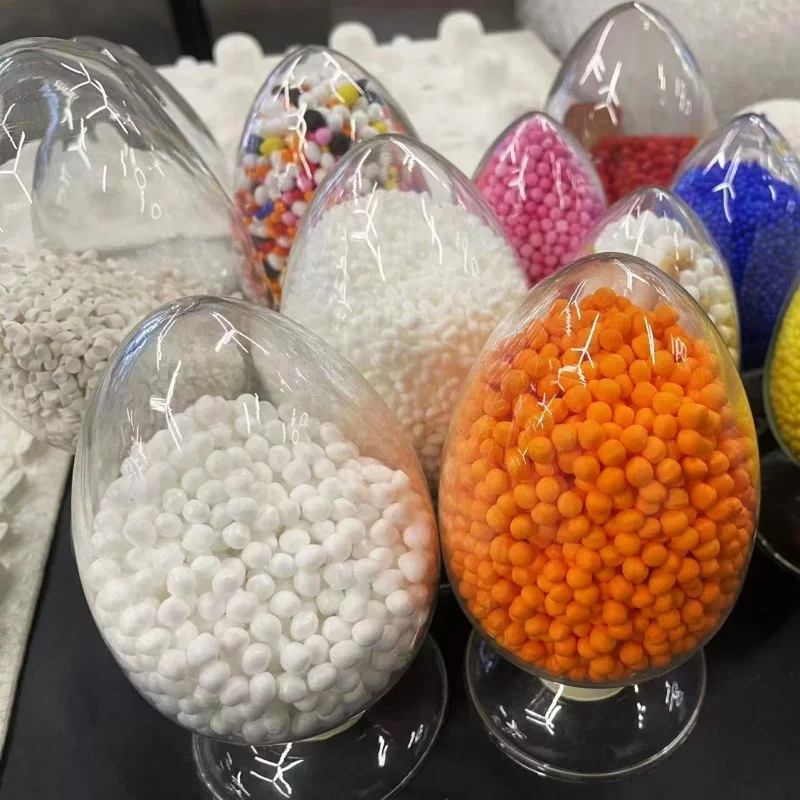

EPS Continuous Pre-Expander Machine (1).webp

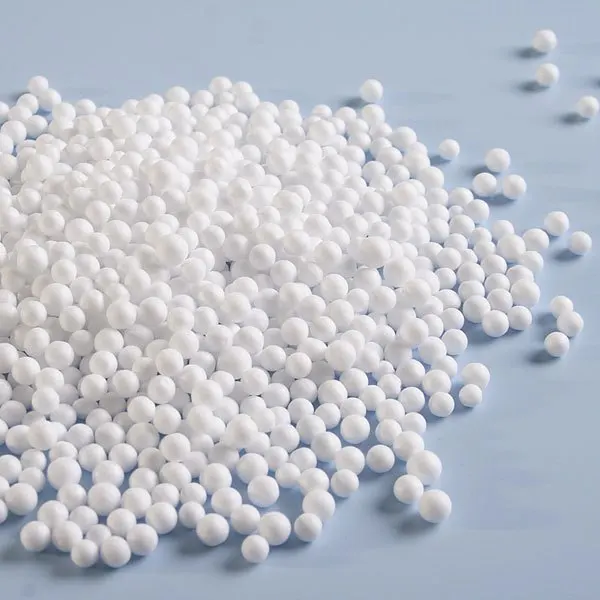

EPS Continuous Pre-Expander Machine (2).webp

EPS Continuous Pre-Expander Machine (3).webp

Technical Data

Item		Unit	SPY―900	SPY―1200
Expansion Chamber	Diameter	mm	DN900	DN1200
	Volume	m³	1.2m³	2.2mm³
	Usable Volume	m³	0.8m³	1.5m³
Steam	Entry	inch(mm)	1"(DN25)	1"(DN25)
	Consumption	kg/cycle	200～250Kg/h	300～350Kg/h
	Pressure	Mpa	0.6～0.8Mpa	0.6～0.8Mpa
Compressed Air	Entry	inch(mm)	0.75"(DN20)	0.75"(DN20)
Compressed Air	Pressure	Mpa	0.6～0.8Mpa	0.6～0.8Mpa
Drainage	Entry	inch(mm)	0.75"(DN20)	0.75"(DN20)
Capacity		7g/L	200Kg/h	350Kg/h
		12g/L	250Kg/h	450Kg/h
		15g/L	300Kg/h	\
		25g/L	380Kg/h	\
Material Conveying Line		inch(mm)	6"(DN150)	8"(DN200)
Connected Load/Power		KW	10	13
Expanded Density	First Expansion	g/l	\	\
Expanded Density	Secondary Expansion	g/l	7-12	7-12
Overall Dimension(LWH)		mm	470029003200	490032003200
Weight		kg	1600	2100
