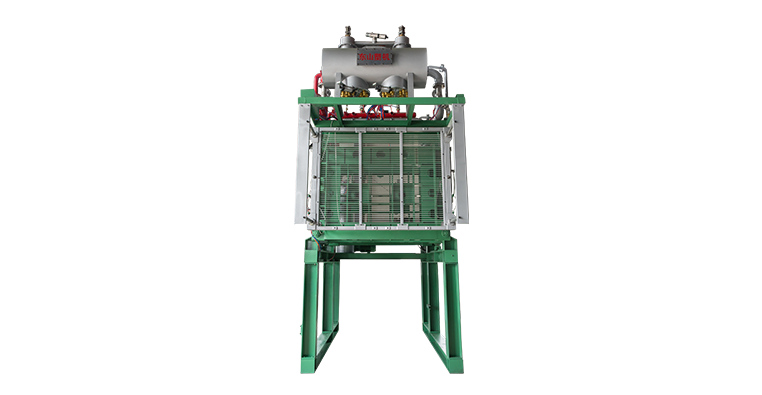

EPS Fast-Type Automatic Shape Molding Machine

The EPS rapid automatic forming machine adopts an efficient heating and cooling system to greatly shorten the production cycle and improve the forming speed and quality of foam products. The equipment is intelligent and convenient to operate, suitable for mass production, and is widely used in packaging, insulation materials, home appliances and auto parts.

Core advantages:

Rapid prototyping: Optimize heating/cooling cycles for higher production efficiency.

Fully automatic control: Intelligent operation reduces manual intervention.

High stability: Ensure product size accuracy and uniform density.

Multi-purpose applications: Suitable for the production of EPS products such as buildings and home appliances.

Products Detail

Technical Data

Item		Unit	FAV1200	FAV1400	FAV1750	FAV1800	FAV2000
Standard Mould Size		mm	1200*1050	1400*1250	1750*1450	1800*1600	2000*1800
Max Product's Size		mm	1050900420	12501100420	16001300420	16501450420	18501650420
Back Window Size		mm	1100*940	1300*1110	1650*1330	1700*1430	1900*1630
Striking Mould Range		mm	150～1500	150～1500	150～1500	150～1500	150～1500
Steam	Entry	inch(mm)	3"(DN80)	4"(DN100)	5"(DN125)	5"(DN125)	5"(DN125)
	Consumption	kg/cycle	4～6	5～7	7～10	8～12	9～15
	Pressure	Mpa	0.4～0.7	0.4～0.7	0.4～0.7	0.4～0.7	0.4～0.7
Cooling Water	Entry	inch(mm)	2.5"(DN65)	3"(DN80)	4"(DN100)	4"(DN100)	5"(DN125)
	Consumption	kg/cycle	45～130	50～150	55～180	60～190	90～220
	Pressure	Mpa	0.3～0.5	0.3～0.5	0.3～0.5	0.3～0.5	0.3～0.5
Compressed Air	Entry	inch(mm)	2"(DN50)	2.5"(DN65)	2.5"(DN65)	2.5"(DN65)	3"(DN80)
	Consumption	kg/cycle	1.5	1.8	2	2.2	2.5
	Pressure	Mpa	0.4～0.7	0.4～0.7	0.4～0.7	0.4～0.7	0.4～0.7

Drainage Vent		inch(mm)	5"(DN125)	6"(DN150)	6"(DN150)	6"(DN150)	8"(DN200)
Cycle Time		s	50～100	60～150	80～180	80～180	100～200
Connected Load/Power		Kw	11	14.5	16.5	16.5	20
Overall Dimension(LWH)		mm	475017503130	475019203250	475020303450	475020803600	475029004000
Weight		kg	5000	5500	6200	6500	7000
