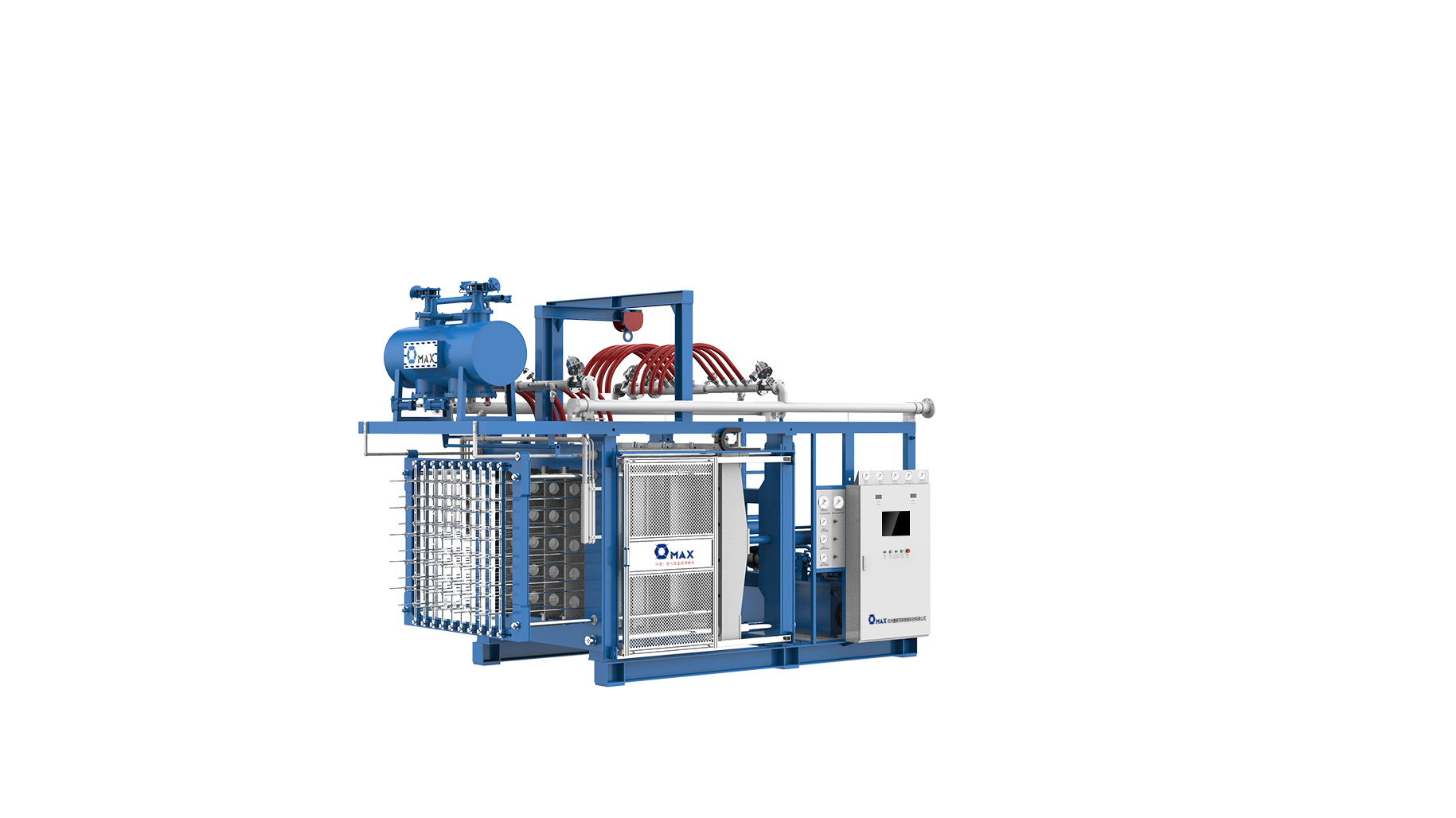

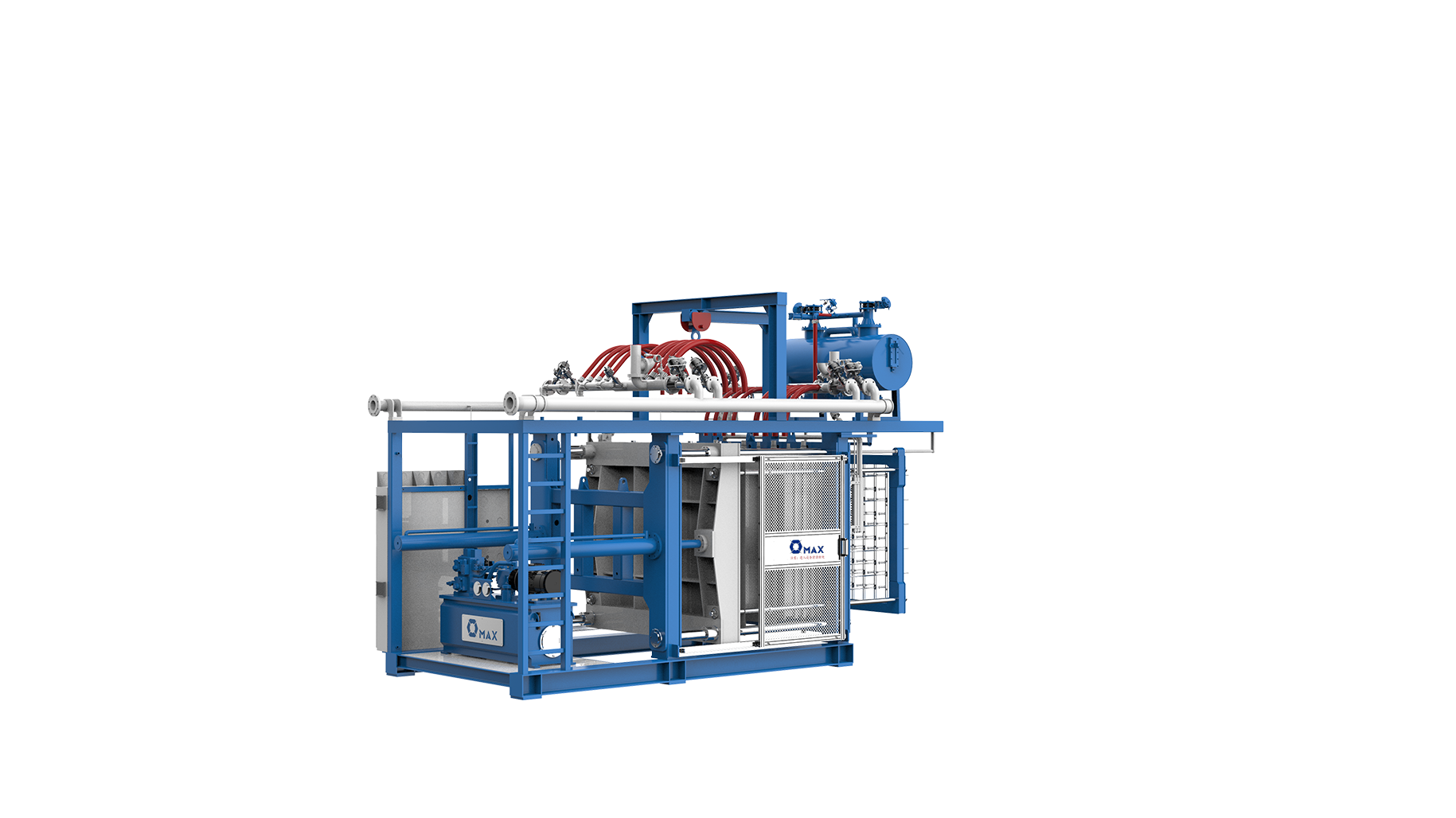

High-Efficiency Energy-Saving EPS Shape Molding Machine

This high-efficiency and energy-saving EPS molding machine uses advanced heating and steam control technology to ensure product molding quality while significantly reducing energy consumption.

The equipment has an intelligent operating system with a high degree of automation, reducing the burden of manual operations and improving production stability.

Its structural design is reasonable and suitable for the forming and processing of a variety of EPS products, including packaging, insulation and industrial materials.

This model not only shortens the production cycle, but also helps companies achieve energy conservation and cost reduction, which is suitable for long-term continuous production needs.

Products Detail

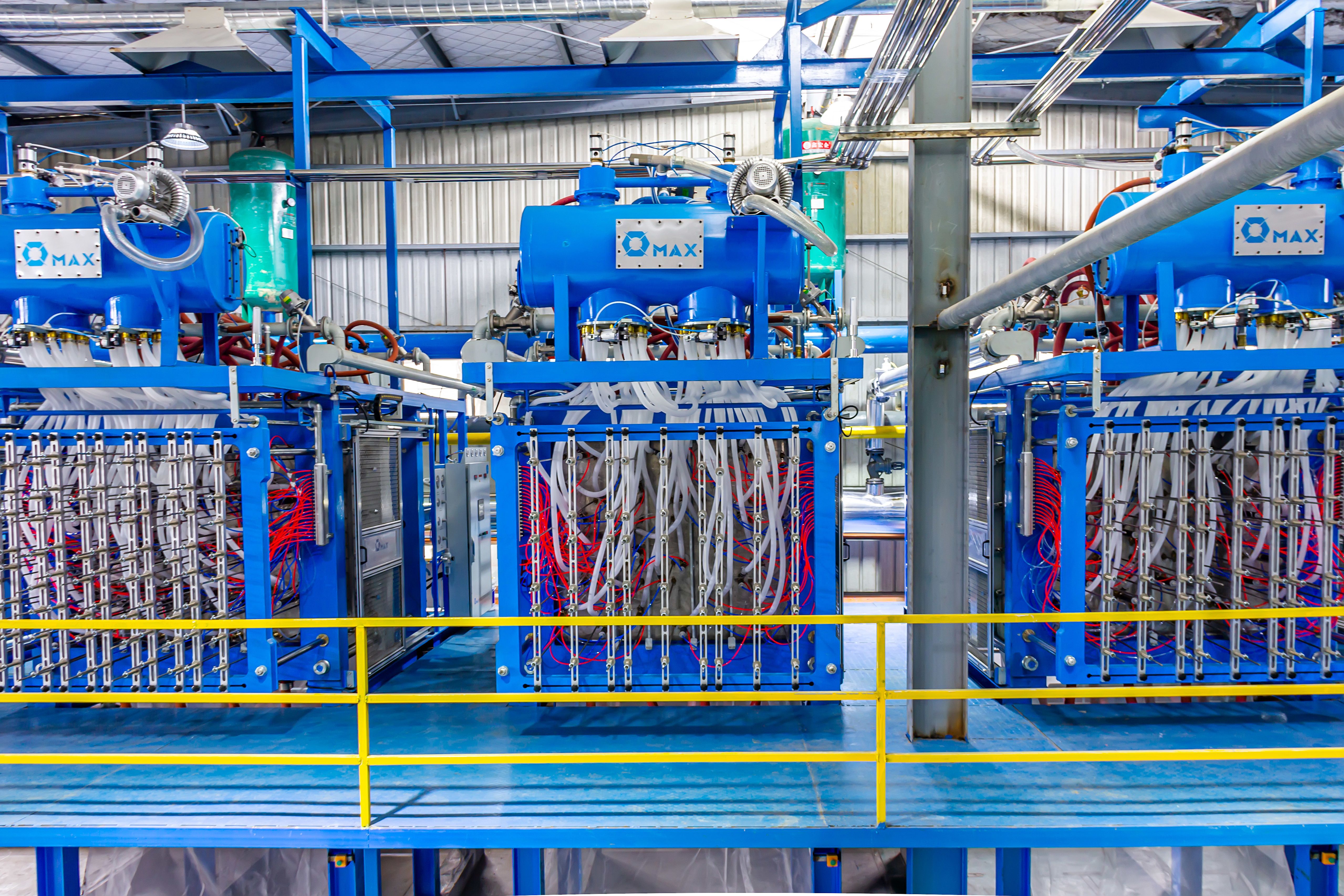

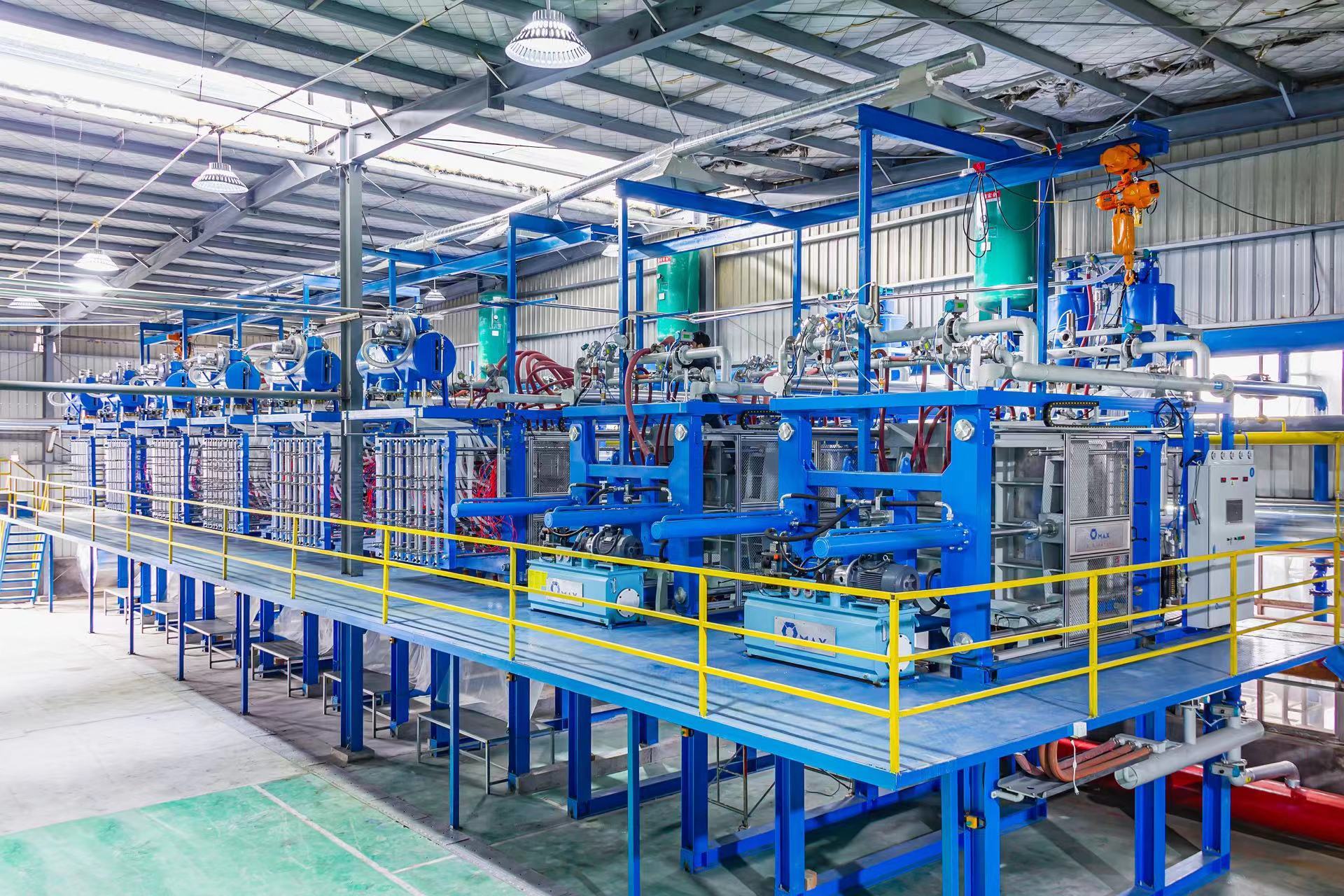

Machine in workshop

Specification

project		unit	EPS1412	EPS1513	EPS1715	EPS1816	EPS2018
mold size		mm	1400X1200	1500X1300	1700X1500	1800X1600	2000X1800
rear window size		mm	1250X1050	1350X1150	1600X1400	1680X1450	1850X1650
max product size		mm	1200X1000	1300X1100	1500X1300	1600X1400	1800X1600
max product height		mm	400	400	400	400	400
steam	pipe connector	DN	100	100	100	100	100
steam	mold connector	DN	40 X 6	40 X 6	40X8	40X8	40X8
air	pipe connector	DN	50	50	50	65	65
cooling water	pipe connector	DN	80	80	80	100	100
cooling water	mold connector	DN	25X6	25X6	25X6	25X8	25X8
drainage	vacuum connector;o8	DN	100	100	100	125	125
	fix,moving mold	DN	80	80	80	100	100
	drainage connector	DN	100	100	100	125	125
hydraulic	oil pump motor	Kw	5.5	5.5	5.5	7.5	7.5
	capacity of oil pump	L/min	25/75	25/75	25/94	25/94	25/94
	max clamping force	T	24	24	38	38	38
	open/close mold cylinder	mm	Φ100X1360/2	Φ100X1360/2	Φ125X1360/2	Φ125X1360/2	Φ125X1360/2
	demold cylinder	mm	Φ50X30 X 450	Φ50X30 X 450	Φ50X30 X 450	Φ50X30 X 450	Φ50X30 X 450
barrel	capacity of oil tank	M3	0.15	0.15	0.3	0.3	0.3
	supplying blower	Kw	1.5	1.5	2.2	2.2	2.2
	material outlet	piece	24	24	32	44	44
single motor power		Kw	7	7	7.7	9.7	9.7
outer size		LXWXH	5300X2400X3700	5300X2400X3700	5300X2500X3970	5300X2600X3970	5300X2800X3970
weight		T	6.5	7	7.5	8.5	9.0
