Automatic EPS Sheet Cutting Machine SPC4000 – Continuous Three-Table Design

The SPC4000 EPS cutting machine with three consecutive benches is an automated equipment specially designed for efficient production. This model adopts a three-station continuous operation mode, which can cut multiple EPS sheets at the same time, greatly improving production capacity. Equipped with precision guide rails and CNC system to ensure accurate cutting size and neat edges.

The equipment has a solid structure and smooth operation, which can meet the mass production needs of insulation boards, packaging boards and EPS boards for construction.

With the intelligent control system, it is easy to operate and convenient to maintain, providing customers with energy-saving and efficient solutions.

Products Detail

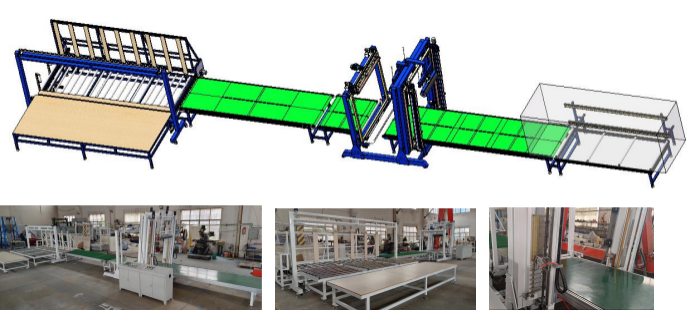

Picture of machine：

Character：

1. The voltage of Horizontal cut, vertical and cross cutting are adjusted individually by three set of transformer & multi stage switch

2. The movement of horizontal ,vertical and Cross cutting are also adjustable separately by frequency converters. 3, From Block alignment for horizontal cutting to the end , All process are controlled Automatically

4. Easy operation

A) Horizontal cutting wires can be set automatically

B) The Cross and vertical cutting wire can be set easily,both side of horizontal and vertical will set ruler.which will shorter wire setting time, Also wire movement is also easily . after wire setting ready, Then the cylinder will tension the wire to lock it.

C) Equipped the alignment for block setting ,so that you can put the block at exact position. Which will help the accuracy of block cutting. Meanwhile ,with steel roller, the block is easy for movement. Also doesn`t effect the conveyor cutting.

5. Vibrated cutting for horizontal and vertical . which will increase 30% capacity of cutter

6. strong fan for wire cooling for all horizontal ,vertical and cross cutting side.

7. set pause button in many position and set emergency stop bottom for any emergency stop

Basic technical data：

Item		UNIT	PARAMETER
Suitable for block size		mm	4000* 1300* 1300
Min. Cutting thickness		mm	10mm
Cutting speed		m/ min	0.5-1.5
Max. Wires in horizontal		piece	50
Max. Wires in vertical cutting		piece	15
Max wires in cross cutting		Piece	15
Hot wire specification		mm	0.4-0.8
Connected load		Kw	24.8
Weight		Kg	3500
Contour size		MM	1800030002420mm
	Auto wire setting in horizontal		yes
	Manually wire set in Vertical cut		yes
	Cross cutting wire set manually		yes
	Vibration wire cutting for horizontal		yes
	Vibration wire cutting for vertical		yes
Specification: 1)Belt conveyor for movement 2)Capacity : 7-10 blocks per hour for 4 meter blocks.
