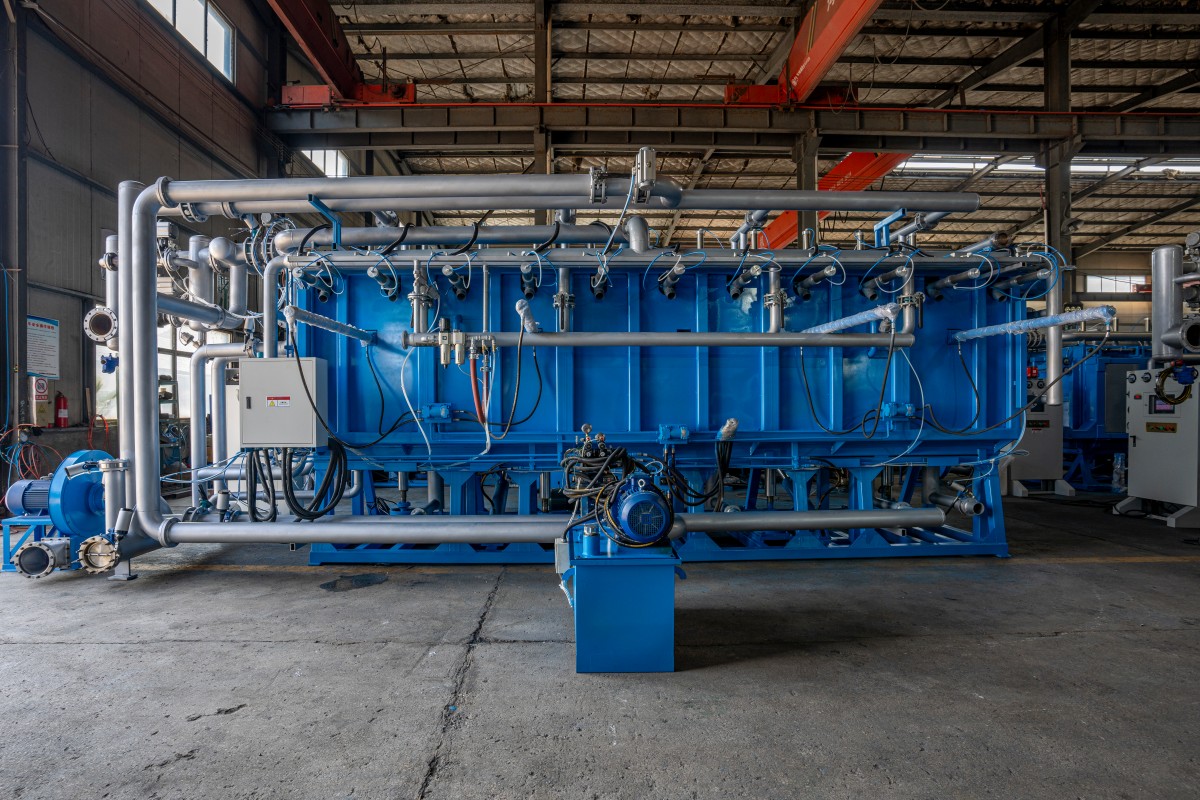

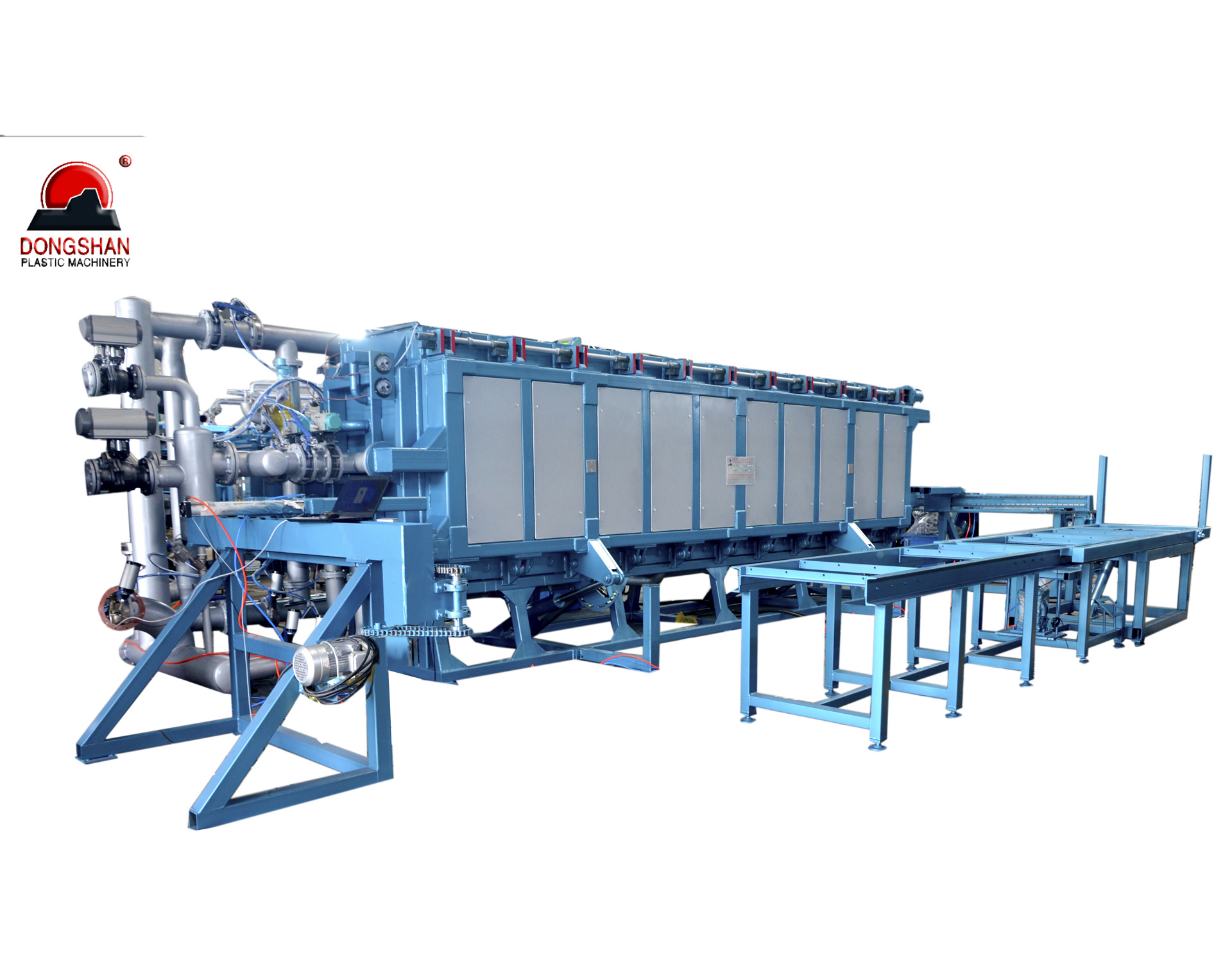

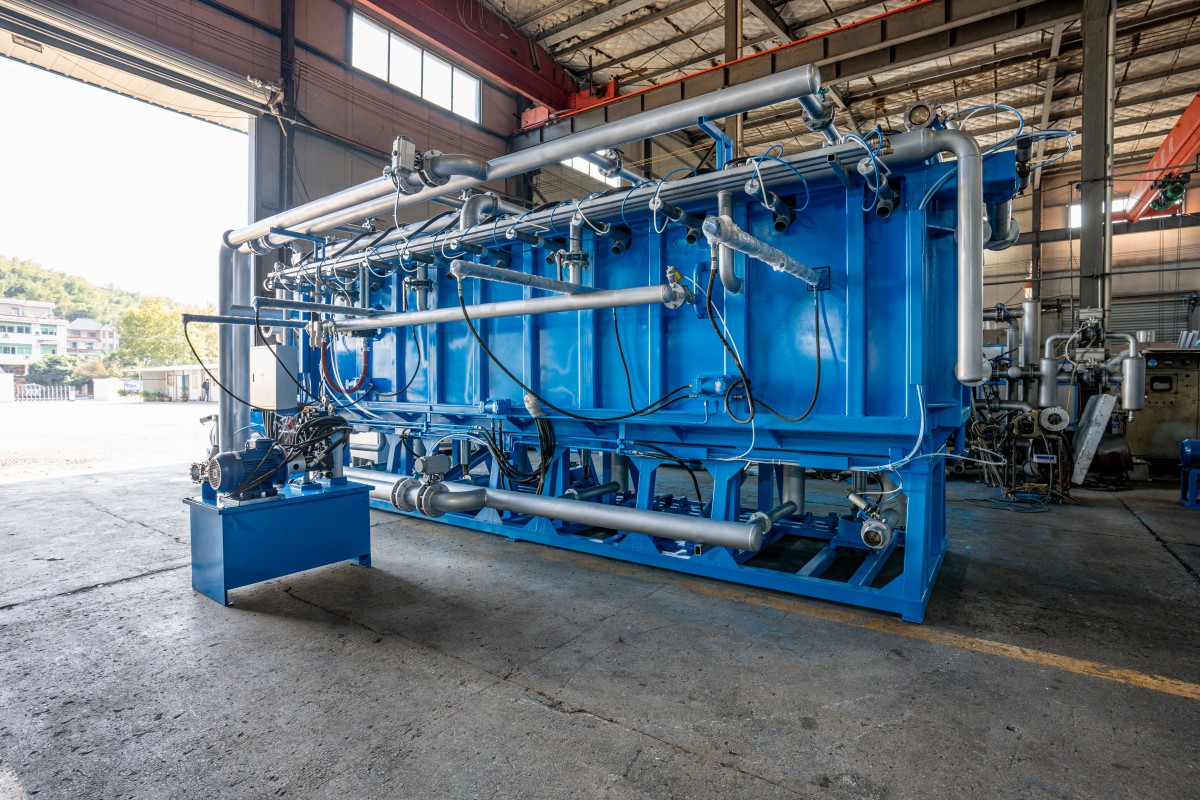

EPS Automatic Vacuum Block Molding Machine

EPS automatic vacuum block forming machine is an advanced equipment that integrates high efficiency and stability. This model adopts vacuum forming technology, which can effectively improve the density and forming quality of EPS foam and ensure accurate size and firm structure of the product.

Main advantages:

Fully automatic operation: Intelligent control system simplifies production processes and reduces labor dependence.

Vacuum forming technology: Reduce forming defects and improve foam block density and surface quality.

Energy-saving design: Optimize steam and cooling systems to reduce energy consumption while ensuring production capacity.

Flexible production: It can meet the molding needs of foam blocks of different size and adapt to multi-industry applications.

Strong structure: strong durability, easy maintenance, suitable for long-term high-intensity production.

Application scope:

It is widely used in building insulation materials, EPS decorative components, packaging foam boards and other fields, helping companies achieve efficient and low-cost mass production.

Products Detail

Technical Data

Item		Unit	PB2000VS	PB3000VS	PB4000VS	PB6000VS	PB8000VS
Mould cavity Size		mm	204010201030	306012401030	408012401030	610012401030	814012401030
Block Size		mm	200012001000	300012001000	400012001000	600012001000	800012001000
Steam	Entry	inch(mm)	4"(DN100)	5"(DN125)	8"(DN200)	8"(DN200)	8"(DN200)
	Consumption	kg/cycle	25~45	45~65	60~85	95~120	115~160
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Compressed Air	Entry	inch(mm)	2"(DN50)	2"(DN50)	3“(DN80)	3“(DN80)	3“(DN80)
	Consumption	m³/cycle	1.5~2	1.5~2.5	1.8~2.5	2~3	2.5~3
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Vacuum Cooling Water	Entry	inch(mm)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)
	Consumption	m³/cycle	0.4	0.6	0.8	1	2
	Pressure	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Drainage	Vacuum Vent	inch(mm)	4"(DN100)	5"(DN125)	5"(DN125)	5"(DN125)	5"(DN125)
	Steam Vent	inch(mm)	4"(DN100)	5"(DN125)	6"(DN150)	8"(DN200)	8"(DN200)
	Air Cooling Vent	inch(mm)	4"(DN100)	5"(DN125)	6"(DN150)	8"(DN200)	8"(DN200)
Capacity @15kg/m³		min/cycle	4	6	7	8	8
Connected Load/Power		Kw	19.75	23.75	24.5	32.25	40.25
Overall Dimension(LWH)		mm	570040002800	720045003000	1100045003000	1260045003100	1570046003500
Weight		kg	5000	6500	10000	14000	17000
