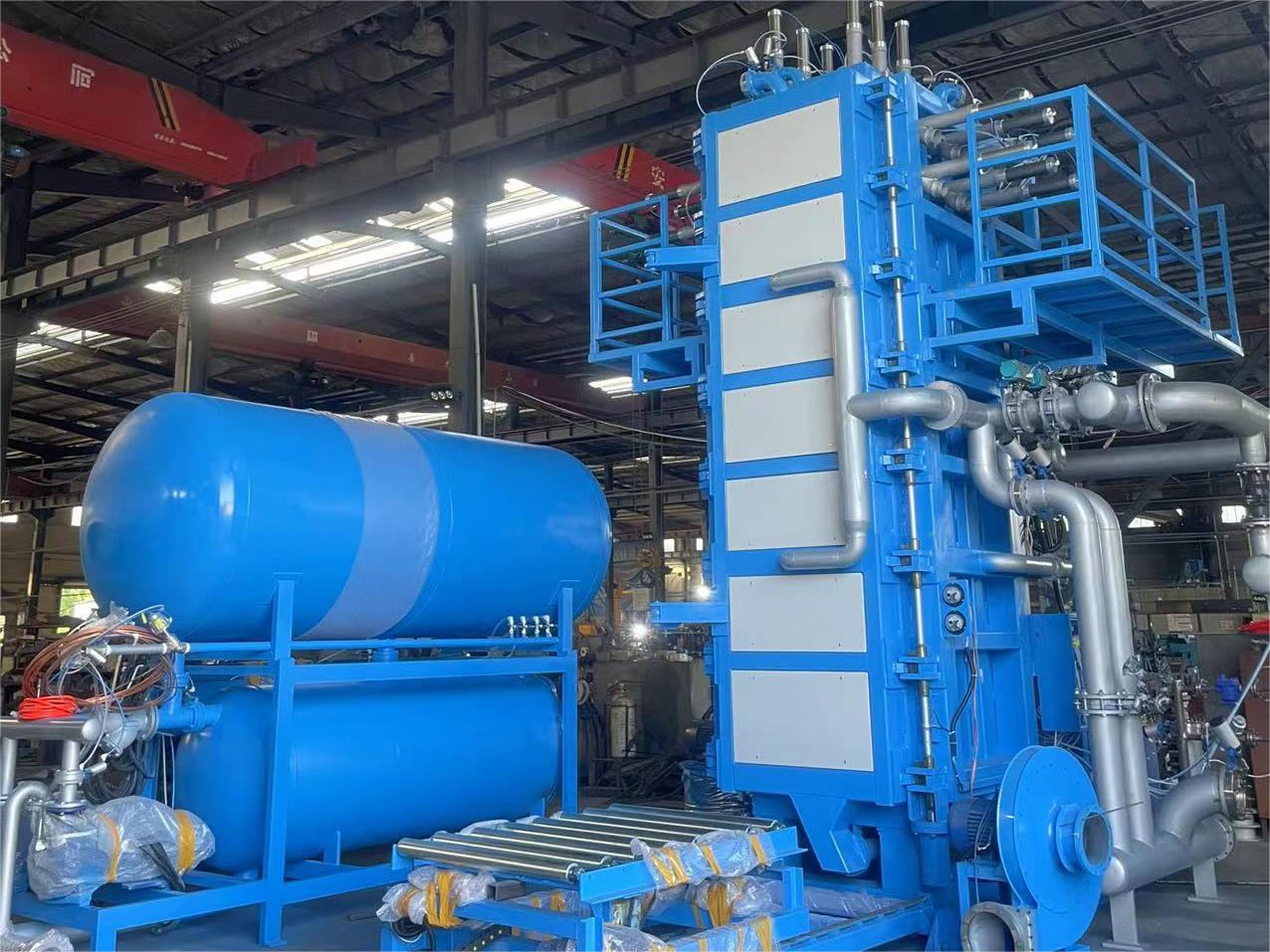

EPS Block Molding Machine for Expanded Polystyrene Panels, Boards, Sheets and Plates

EPS foam molding machine is specially designed to produce various expanded polystyrene (EPS) products and can be flexibly processed into insulation boards, insulation boards, foam sheets and EPS molded boards. The equipment adopts advanced steam heating and cooling processes to ensure uniform product density and smooth surface, meeting the diverse needs of building energy conservation, packaging materials and industrial applications.

Main features:

Multi-functional production: Support multiple specifications such as panels, plates, sheets, and plates;

High-precision forming: Ensure stable size and consistent product quality;

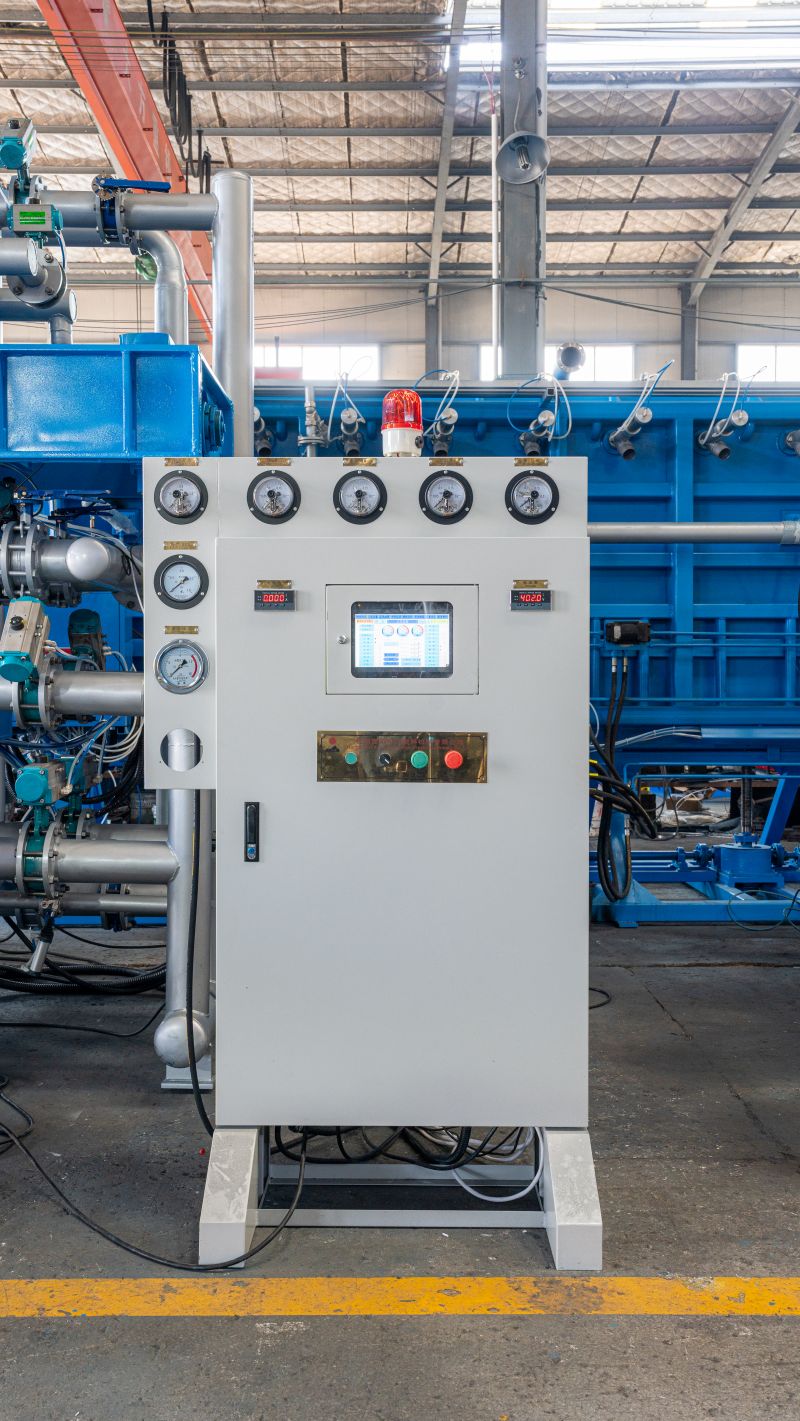

Automated control: Reduce manual operations and improve production efficiency;

Energy conservation and environmental protection: Optimize steam and energy consumption management to reduce cost and waste.

Products Detail

Specification

Item		Unit	SPB2000LZ	SPB3000LZ	SPB4000LZ	SPB6000LZ
Mould Cavity Size		mm	2040×1240×1030	3060×1240×1030	4080×1240×1030	6080×1240×1030
Block Size (12g/L)		mm	2000×1200×1000	3000×1200×1000	4000×1200×1000	6000×1200×1000
Steam	Inlet	Inch	4＂（DN100）	5＂（DN125）	6＂（DN150）	8＂（DN150）
	Consumption	Kg/Cycle	70～100	100～130	130～160	150～180
	Pressure	MPa	0.75～0.85	0.75～0.85	0.75～0.85	0.75～0.85
Compressed Air	Inlet	Inch	3＂（DN80）	3＂（DN80）	4＂（DN100）	4＂（DN100）
	Consumption	M³/Cycle	1.5～2.5	2～3	2.5～3.5	3.5～4.5
	Pressure	MPa	0.6	0.6	0.6	0.6
Vacuum	Inlet	Inch	2＂（DN50）	2.5＂（DN65）	3＂（DN80）	3＂（DN80）
Cooling Water	Consumption	Kg/Cycle	0.6～0.8	0.8～1.0	1.0～1.2	12～1.4
Cooling Water	Pressure	MPa	0.4～0.6	0.4～0.6	0.4～0.6	0.4～0.6
Drainage	Drain Outlet	Inch	5＂（DN125）	6＂（DN150）	8＂（DN200）	8＂（DN200）
	Air Outlet	Inch	6＂（DN150）	8＂（DN200）	8＂（DN200）	8＂（DN200）
	Vacuum drain Outlet	Inch	4＂（DN100）	5＂（DN125）	5＂（DN125）	5＂（DN125）
Produce time / Cycle（12g/L）		min/Cycle	6	7	8	12
Connected Load/Power		Kw	13/28	16.5/28.5	16.5/28.5	16.5/28.5
Overall Dimension(LWH)		mm	6700×4600×4100	6700×4600×5100	6700×4600×6100	6700×4600×8100
Weight		Kg	12200	14800	17200	19500
