Products Detail

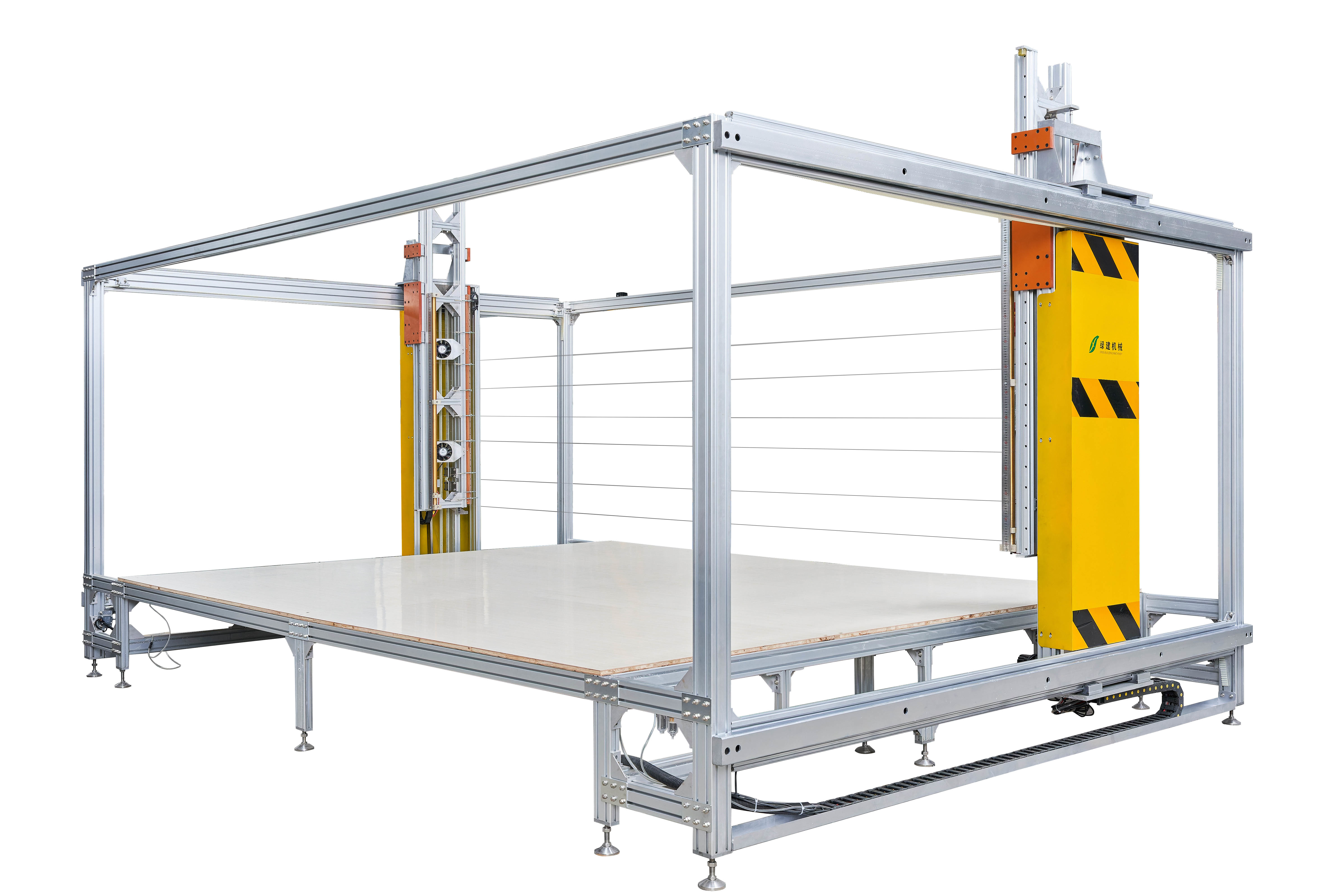

Mechanical features:
1. All the profiles of the machine are connected by aluminum alloy, and the appearance is simple Clean beauty, stable movement, high precision; at the same time, the equipment has a line.process protection Function, when the movement stroke exceeds the specified stroke, the equipment automatically protects to stop;
2. The machine adopts X,Y,U,V Directions are closed-loop stepper motors plus synchronization Belt drive (or ball screw), smooth operation, freespeed regulation, suitable Cutting special graphics requires constant speed change and mechanical control accuracy. is 0.05mm.
Controls and software:
1. Drawing software Drawing:AUTOCAD;
2. Cutting software: USB Controller；
3. Cutting file format:*NC,*.DXF；
4. Electrical components: SCHNEIDER;
5. Remote control handle: HaAnd;
6. Protection.
A. The cutting wire is broken, and the equipment will automatically stop heating
B. with four travel switch protection stroke
| NO | /Description | UNT | GB-FC300 | GB-FC400 | |
| 1 | Max. Net Cut Size/Max. Net Cutting Size | mm | 3000 × 2100 × 1300 | 4000 × 2100 × 1300 | |
| 2 | Heating Wire/Cutting Wire | mm | φ0.4 G20Ni80 | φ0.4 G20Ni80 | |
| 3 | Heating wire quantity/Max Hot Wire | pecs | 10 | 8 | |
| 4 | Stepper Motor Torque/Step Motor Torsion | N.M | 4-8.5 | 4-8.5 | |
| 5 | Cutting Speed Range/Cutting Speed Range | m/min | 0.3~0.8m/min | 0.3~0.8m/min | |
| 6 | Voltage Regulator/Voltage Regulator | Power/Power | KVA | 15 | 20 |
| Voltage/Voltage | V | 0 ~ 220 (adjustable) | 0 ~ 220 (adjustable) | ||
| 7 | Total Length/Overall Size | mm | 3900X3100X2500 | 4900X3100X2500 | |
| 8 | 重量/Gross Weight | Kg | 600 | 750 | |
