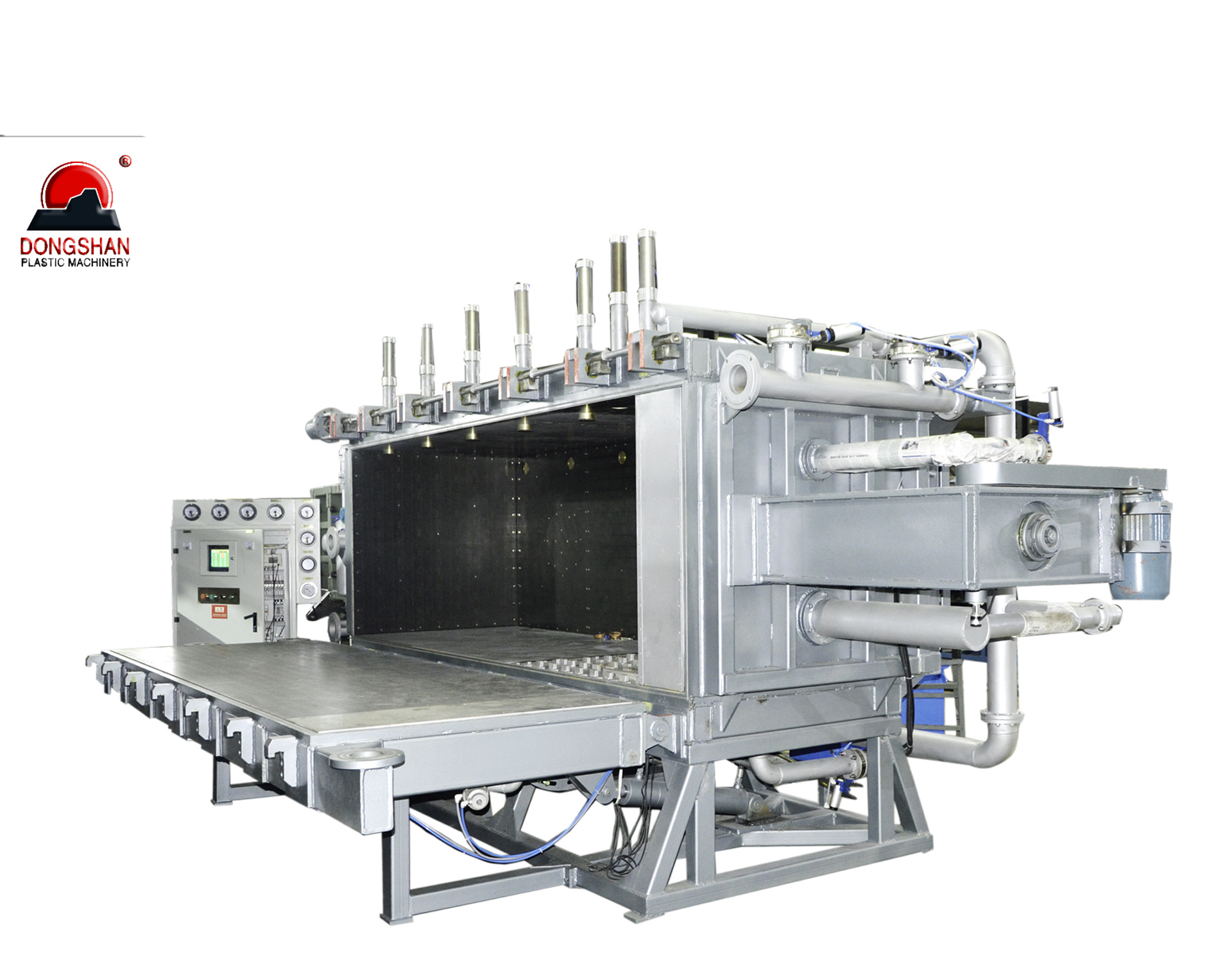

EPS Auto Length & Width Adjustable Block Molding Machine

EPS automatic length-width adjustable block forming machine is an efficient equipment specially designed for the production of foam boards with different specifications. This model adopts an automatic adjustment system, which can flexibly adjust the length and width of the forming block according to production needs, helping companies reduce cutting processes and improve production efficiency.

Main features:

Adjustable length and width: Support multi-specification production, one machine is used for multiple purposes, and adapt to different orders.

Automated control: Equipped with intelligent control system, easy operation and reduce labor costs.

Efficient and energy-saving: Optimize steam and cooling systems to reduce energy consumption while ensuring molding quality.

Stable forming: Ensure uniform foam density, accurate product size, and small errors.

Rugged and durable: The overall structure is reasonably designed to ensure long-term stable operation.

Application scope:

It is suitable for the production of a variety of EPS products such as building insulation boards, decorative materials, and packaging foam blocks. It is an ideal choice for energy conservation, environmental protection and large-scale production.

Products Detail

Auto Block Moulding Machine with Elevating Device

Control System

PLC and human-touch Control, automatic operation, convenient maintenance.
Automatic feeding system

Processes

Advanced EPS penetration heating molding process and pipeline layout, strong thermal penetration ability, good foam particle adhesion.
Automatic pneumatic feeding and vacuum assistant feeding devices
Once forming and circular production

Production Efficiency

Fast cooling speed and low cost.
High production efficiency: every board only takes 4-8min.
Energy saving.

Technical Data

Item		Unite	SPB2000V	SPB3000V	SPB4000V	SPB6000V	SPB8000V
Mould cavity Size		mm	20501240630	30801240630	41001240630	61201240630	81401240630
Block Size		mm	20001200600	30001200600	40001200600	60001200600	80001200600
Steam	Entry	inch(mm)	5"(DN125)	5"(DN125)	6"(DN150)	8"(DN200)	8"(DN200)
	Consumption	kg/cycle	25~45	45~65	60~85	95~120	115~160
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Compressed Air	Entry	inch(mm)	1.5"(DN40)	1.5"(DN40)	2"(DN50)	2.5"(DN65)	3“(DN80)
	Consumption	m³/cycle	1.5~2	1.5~2.5	1.8~2.5	2~3	2.5~3
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Vacuum Cooling Water	Entry	inch(mm)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)	1.5"(DN40)
	Consumption	m³/cycle	0.4	0.6	0.8	1	2
	Pressure	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Drainage	Vacuum Vent	inch(mm)	4"(DN100)	5"(DN125)	5"(DN125)	5"(DN125)	5"(DN125)
	Steam Vent	inch(mm)	5"(DN125)	6"(DN150)	6"(DN150)	8"(DN200)	8"(DN200)
	Air Cooling Vent	inch(mm)	4"(DN100)	5"(DN125)	6"(DN150)	8"(DN200)	8"(DN200)
Capacity @15kg/m³		min/cycle	4	6	7	8	8
Connected Load/Power		Kw	23.75	26.75	28.5	37.75	45.75
Overall Dimension(LWH)		mm	570040003300	720040003500	1100045003500	1260045003500	1570046003500
Weight		kg	8000	9500	15000	18000	21000
