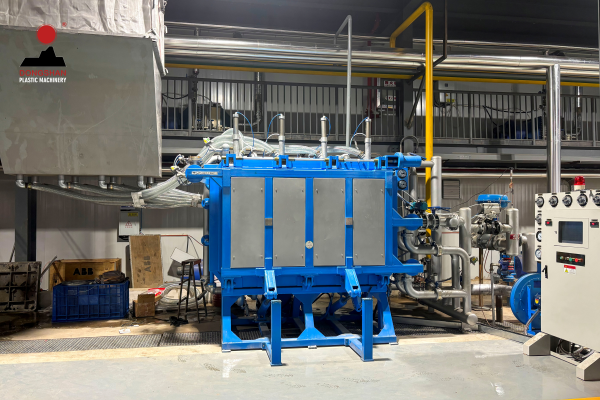

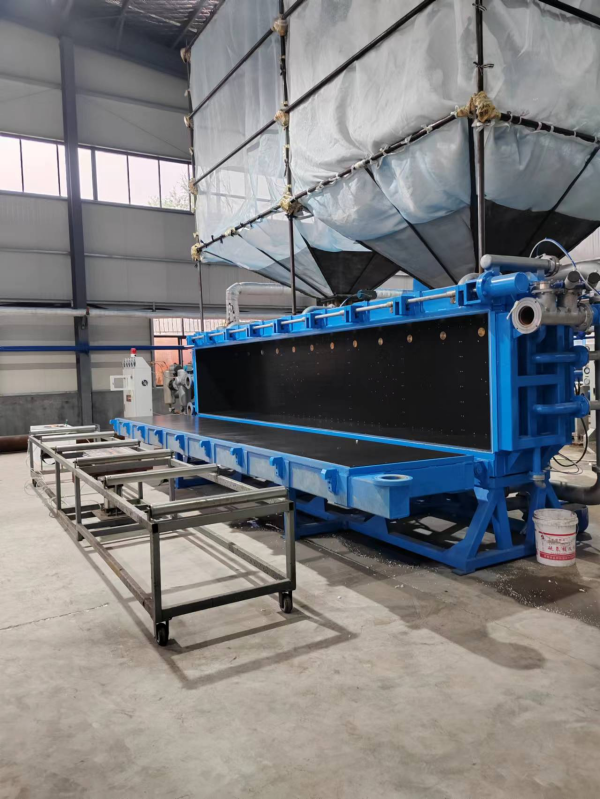

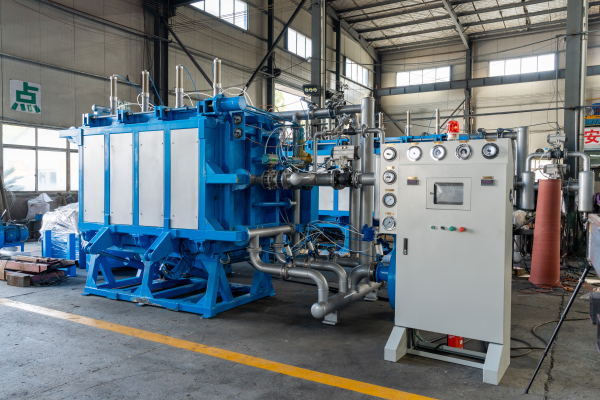

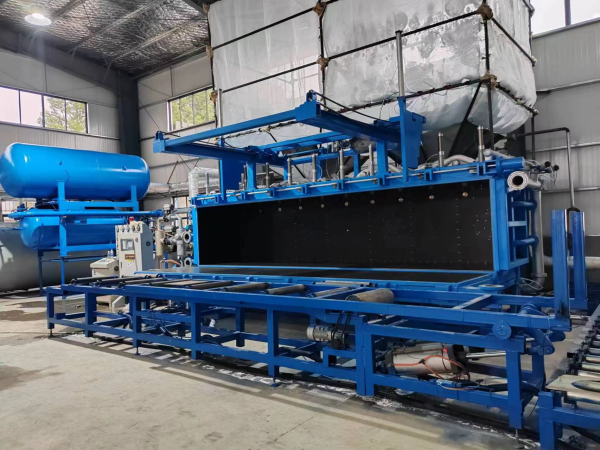

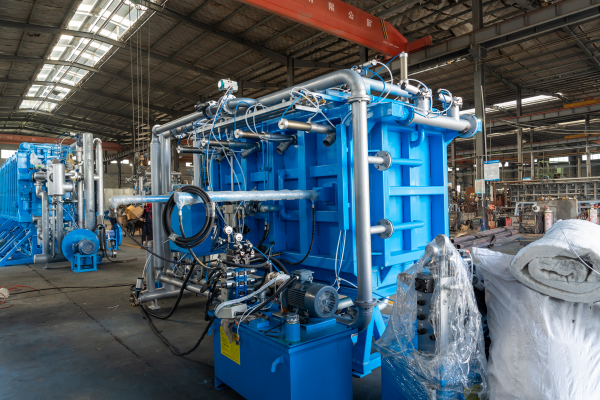

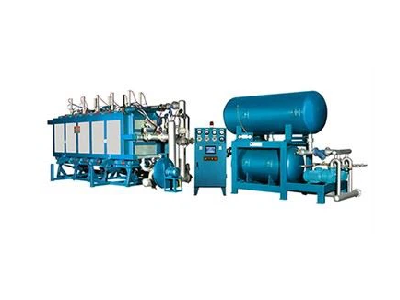

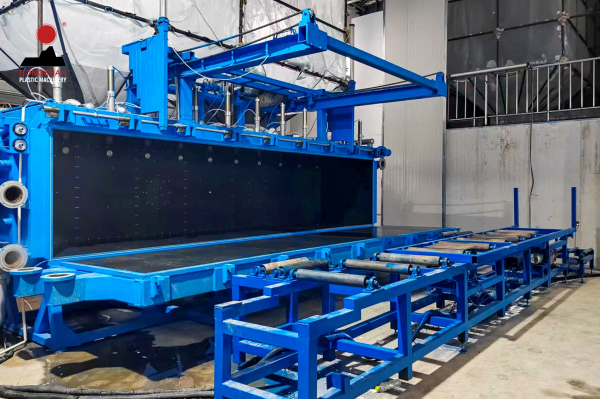

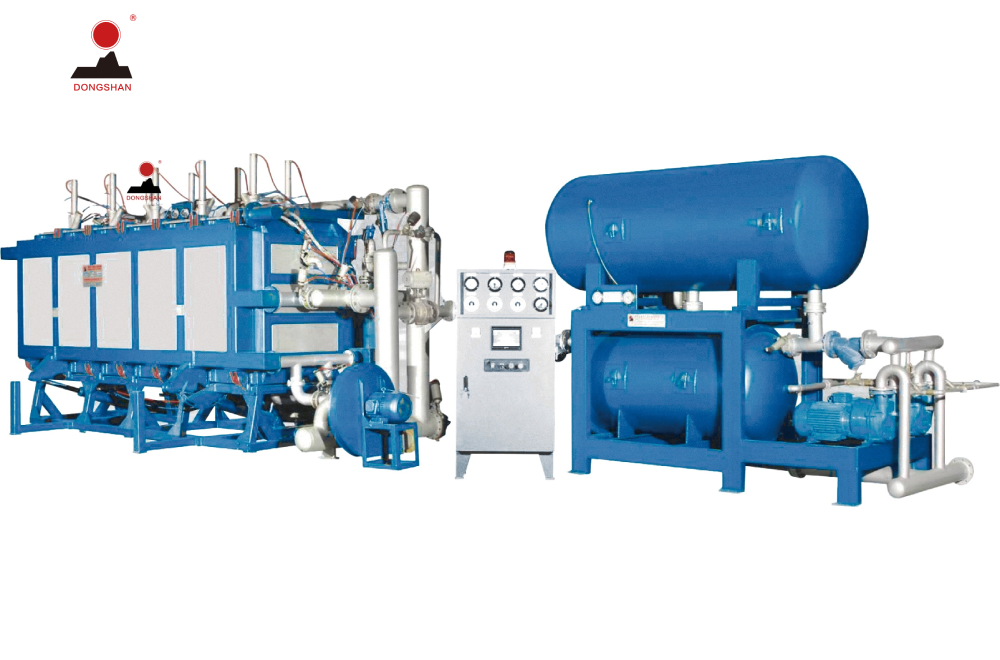

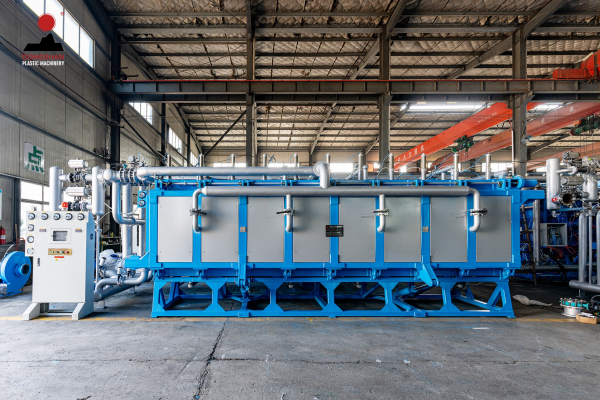

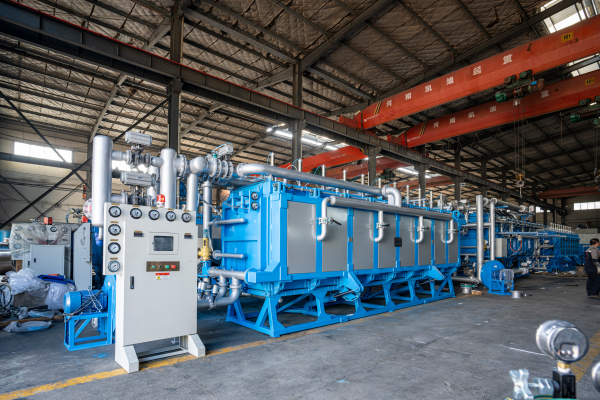

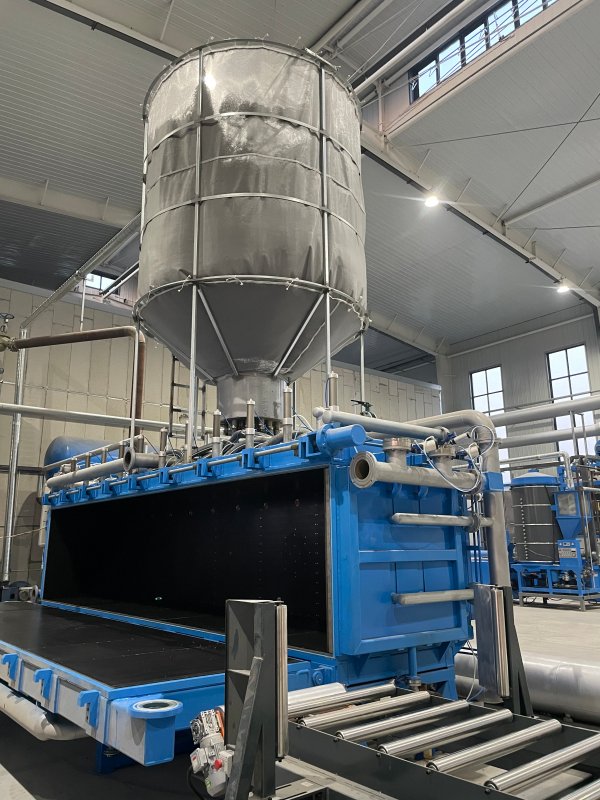

EPS Horizontal Block Molding Machine with Air Cooling & Vacuum System

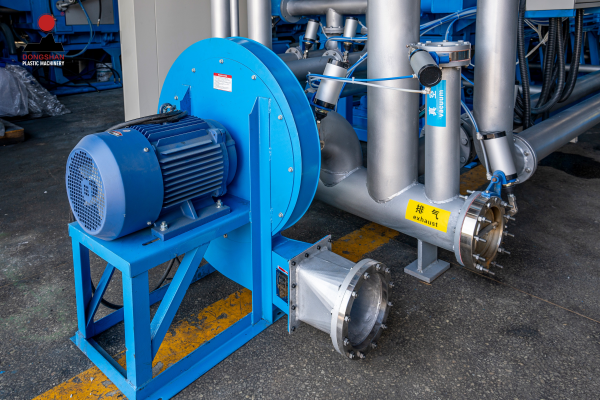

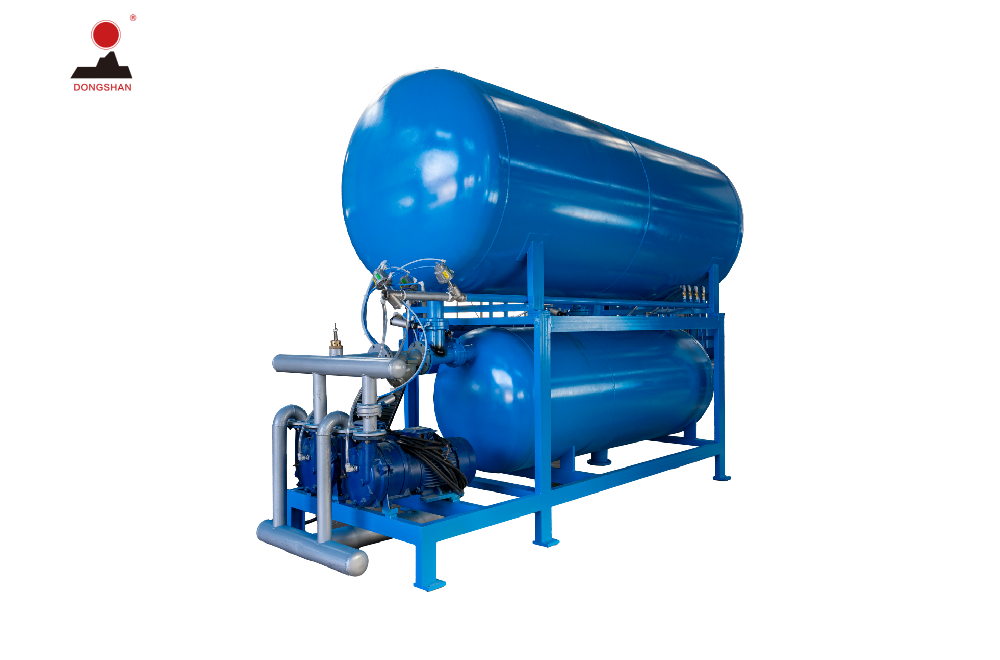

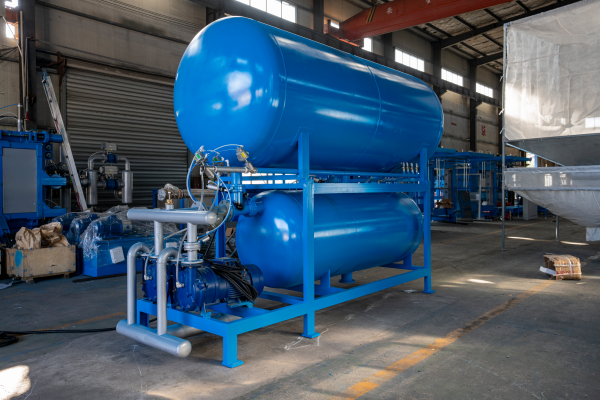

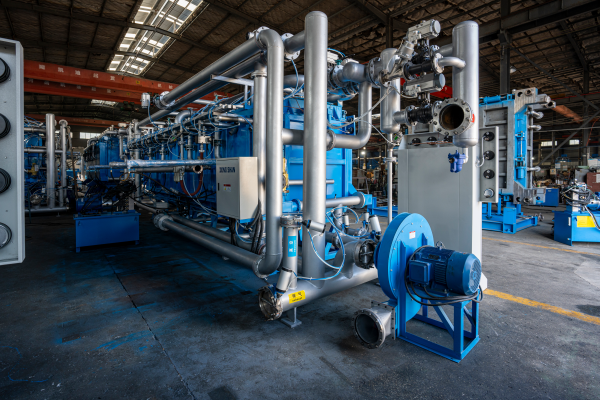

This EPS horizontal foam molding machine combines air cooling and vacuum systems to shorten production cycles while ensuring uniform product density.

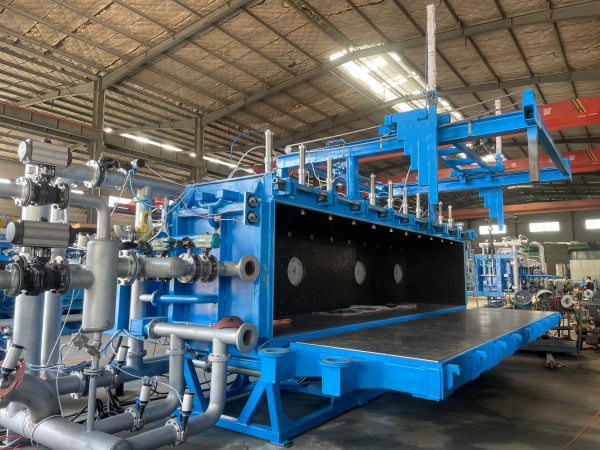

The equipment adopts fully automated control, the mold opens and closes stably, and the production efficiency is significantly improved.

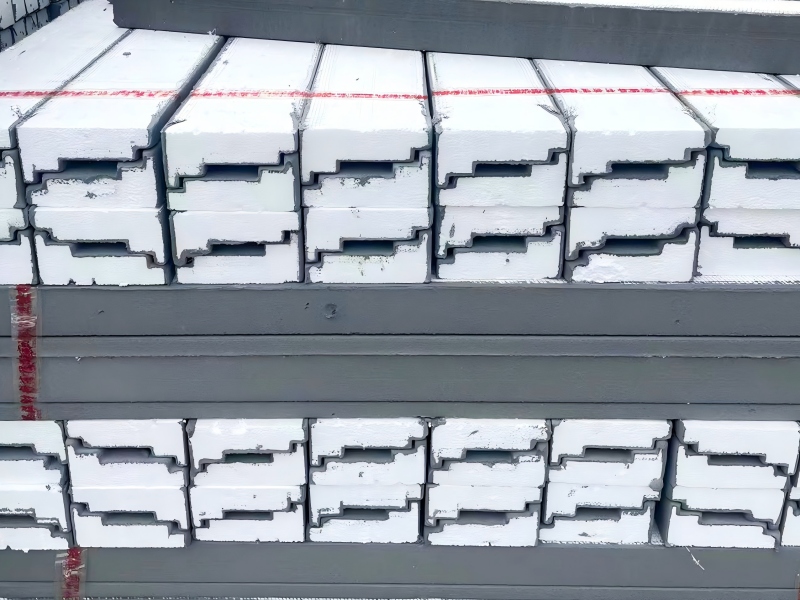

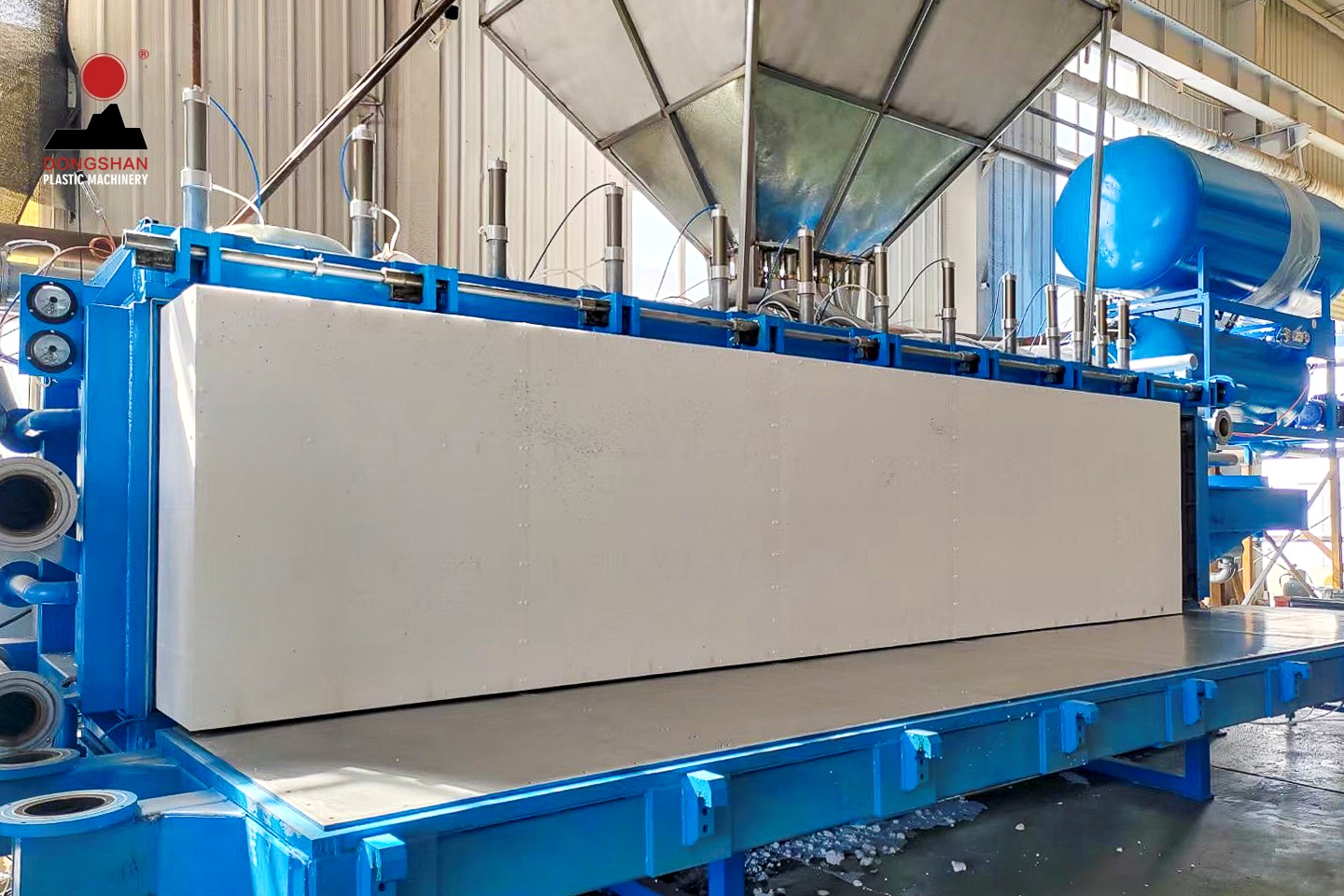

It is designed to be suitable for forming large EPS sheets and blocks, meeting the needs of various industries such as building insulation, packaging and transportation.

This model combines the advantages of high efficiency and energy conservation, simple operation and stable product quality, making it an ideal choice for large-scale production.

Products Detail

Product Introduction

Technical Data

Item Mould cavity Size		Unit mm	PB2000VS 2040×1020×1030	PB3000VS 3060×1240×1030	PB4000VS 4080×1240×1030	PB6000VS 6100×1240×1030	PB8000VS 8140×1240×1030
Block Size		mm	2000×1200×1000	3000×1200×1000	4000×1200×1000	6000×1200×1000	8000×1200×1000
Steam	Entry	inch(mm)	4＂(DN100)	5＂(DN125)	8＂(DN200)	8＂(DN200)	8＂(DN200)
	Consumption	kg/cycle	25~45	45~65	60~85	95~120	115~160
	Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Compressed Air	Entry	inch(mm)	2＂(DN50)	2＂(DN50)	3＂(DN80)	3＂(DN80)	3＂(DN80)
	Consumption	m3/cycle	1.5~2	1.5~2.5	1.8~2.5	2~3	2.5~3
	Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Vacuum Cooling Water	Entry	inch(mm)	1.5＂(DN40)	1.5＂(DN40)	1.5＂(DN40)	1.5＂(DN40)	1.5＂(DN40)
	Consumption	m3/cycle	0.4	0.6	0.8	1	2
	Pressure	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Drainage	Vacuum Vent	inch(mm)	4＂(DN100)	5＂(DN125)	5＂(DN125)	5＂(DN125)	5＂(DN125)
	Steam Vent	inch(mm)	4＂(DN100)	5＂(DN125)	6＂(DN150)	8＂(DN200)	8＂(DN200)
	Air Cooling Vent	inch(mm)	4＂(DN100)	5＂(DN125)	6＂(DN150)	8＂(DN200)	8＂(DN200)
Capacity @15kg/m3		min/cycle	4	6	7	8	8
Connected Load/Power		KW	19.75	23.75	24.5	32.25	40.25
Overall Dimension(LWH)		mm	5700×4000×2800	7200×4500×3000	11000×4500×3000	12600×4500×3100	15700×4600×3500
Weight		KG	5000	6500	10000	14000	17000
