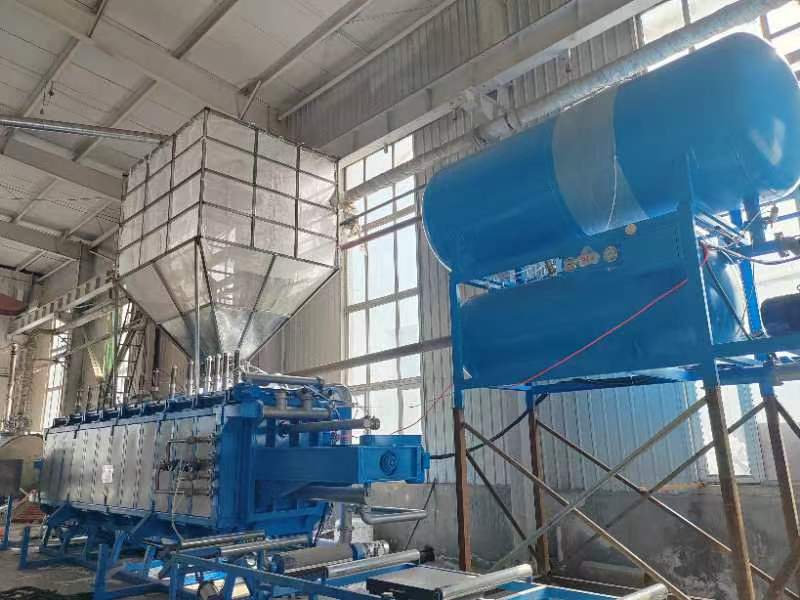

Length Adjustable EPS Foam Block Molding Machine

The adjustable length EPS foam block forming machine is specially designed to meet the production needs of foam blocks of different size. The equipment supports flexible length adjustment and can quickly switch production specifications according to customer needs, improve production efficiency and reduce raw material waste.

Main features:

Adjustable length: Meet the production needs of diversified EPS foam boards and blocks.

Efficient and energy-saving: Advanced heating and steam control systems reduce energy consumption.

High forming accuracy: Adopt automated control to ensure stable product size.

Widely used: suitable for building insulation boards, packaging cushioning materials, decorative products, etc.

Products Detail

Advantages of plate machine equipment
The description of equipment performance advantages is mainly organized from four perspectives: safety perspective, quality perspective, efficiency perspective, and energy saving perspective.

Specification

Item		Unit	SPB2000LZ	SPB3000LZ	SPB4000LZ	SPB6000LZ
Mould Cavity Size		mm	2040×1240×1030	3060×1240×1030	4080×1240×1030	6080×1240×1030
Block Size (12g/L)		mm	2000×1200×1000	3000×1200×1000	4000×1200×1000	6000×1200×1000
Steam	Inlet	Inch	4＂（DN100）	5＂（DN125）	6＂（DN150）	8＂（DN150）
	Consumption	Kg/Cycle	70～100	100～130	130～160	150～180
	Pressure	MPa	0.75～0.85	0.75～0.85	0.75～0.85	0.75～0.85
Compressed Air	Inlet	Inch	3＂（DN80）	3＂（DN80）	4＂（DN100）	4＂（DN100）
	Consumption	M³/Cycle	1.5～2.5	2～3	2.5～3.5	3.5～4.5
	Pressure	MPa	0.6	0.6	0.6	0.6
Vacuum	Inlet	Inch	2＂（DN50）	2.5＂（DN65）	3＂（DN80）	3＂（DN80）
Cooling Water	Consumption	Kg/Cycle	0.6～0.8	0.8～1.0	1.0～1.2	12～1.4
Cooling Water	Pressure	MPa	0.4～0.6	0.4～0.6	0.4～0.6	0.4～0.6
Drainage	Drain Outlet	Inch	5＂（DN125）	6＂（DN150）	8＂（DN200）	8＂（DN200）
	Air Outlet	Inch	6＂（DN150）	8＂（DN200）	8＂（DN200）	8＂（DN200）
	Vacuum drain Outlet	Inch	4＂（DN100）	5＂（DN125）	5＂（DN125）	5＂（DN125）
Produce time / Cycle（12g/L）		min/Cycle	6	7	8	12
Connected Load/Power		Kw	13/28	16.5/28.5	16.5/28.5	16.5/28.5
Overall Dimension(LWH)		mm	6700×4600×4100	6700×4600×5100	6700×4600×6100	6700×4600×8100
Weight		Kg	12200	14800	17200	19500
