Automatic Continuous EPS Cutting Line

Adjustable width EPS module forming machine is specially designed for EPS foam production, supporting the production of different specifications of plates and modules, improving production flexibility and efficiency.

Product features:

Adjustable width: Quickly adjust the forming width according to production needs to adapt to multiple product specifications.

Efficient forming: Optimize hydraulic system and mold design to achieve stable and uniform EPS block forming.

Durable and reliable: Made of high-quality materials to ensure long-term stable operation.

Application scenarios:

EPS foam board production

EPS insulation module manufacturing

Large EPS molding product line

Model: SPC 4000 ( three table )

Products Detail

CHARACTER

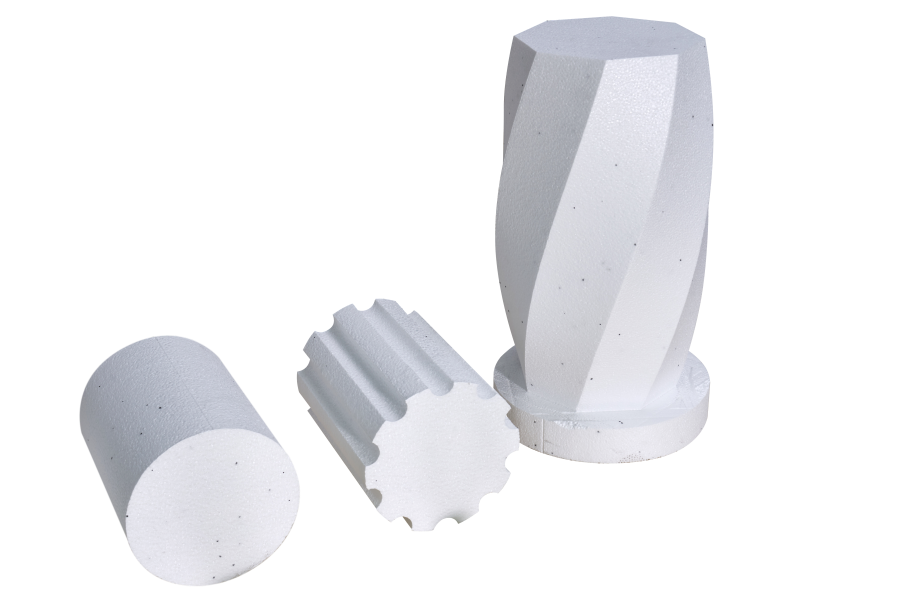

Automatic continuous cutting line (1).png

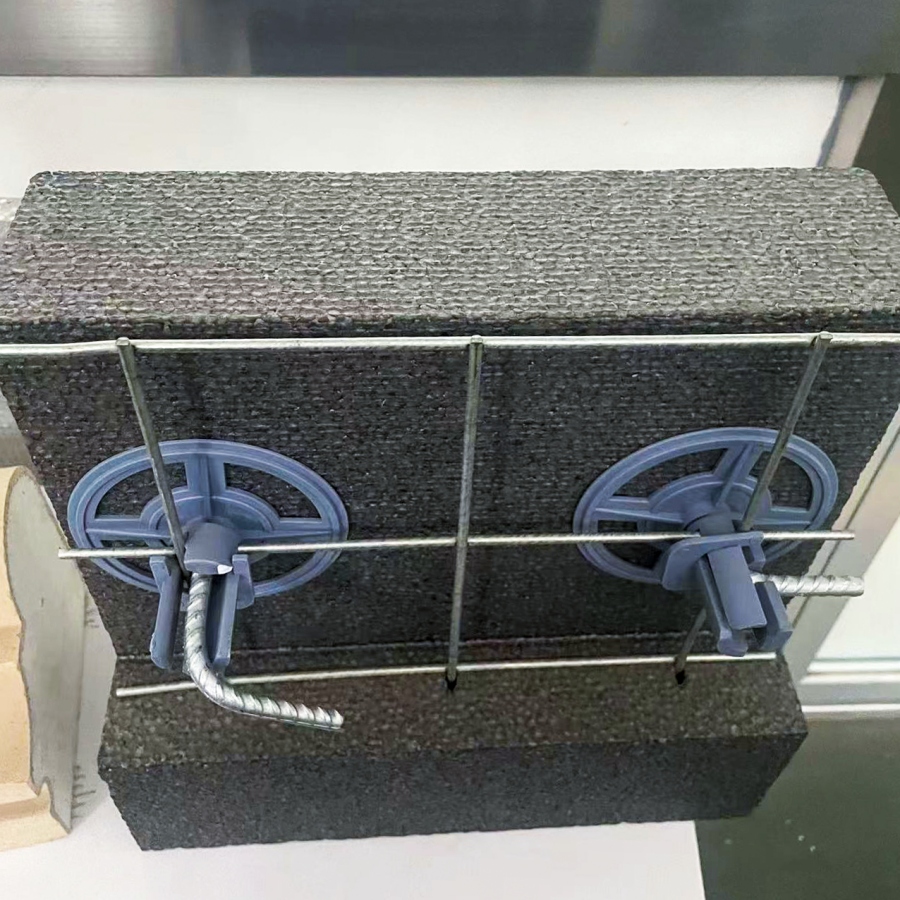

Automatic continuous cutting line (3).png

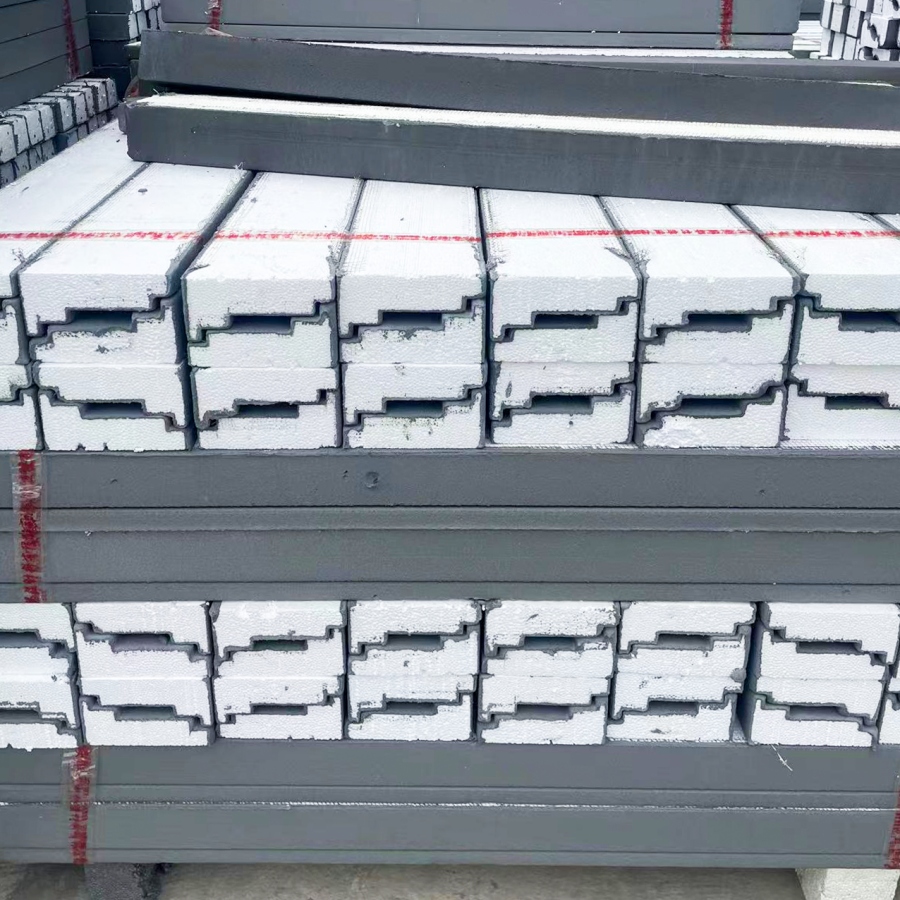

Automatic continuous cutting line (4).png

Basic technical data

Item	UNIT	PARAMETER
Suitable for block size	mm	4000* 1300* 1300
Min. Cutting thickness	mm	10mm
Cutting speed	m/ min	0.5-1.5
Max. Wires in horizontal	piece	50
Max. Wires in vertical cutting	piece	15
Max wires in cross cutting	Piece	15
Hot wire specification	mm	0.4-0.8
Connected load	Kw	24.8
Weight	Kg	3500
Contour size	MM	1800030002420mm
Auto wire setting in horizontal		yes
Manually wire set in Vertical cut		yes
Cross cutting wire set manually		yes
Vibration wire cutting for horizontal		yes
Vibration wire cutting for vertical		yes
Specification: 1) Belt conveyor for movement 2) Capacity : 7-10 blocks per hour for 4 meter blocks.
