Hangzhou Fuyang Dongshan Plastic Machinery Co., Ltd.

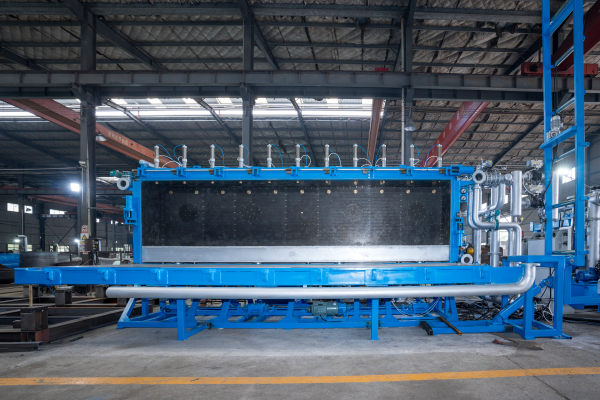

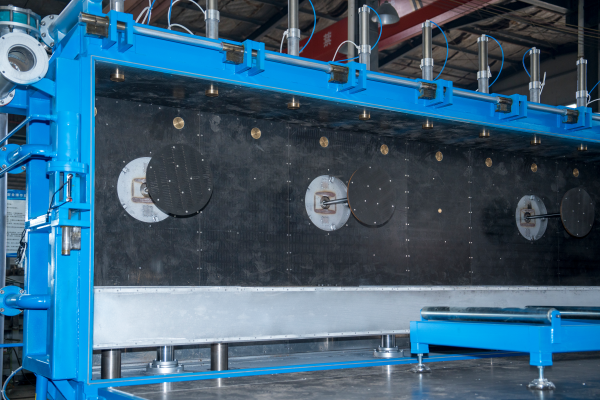

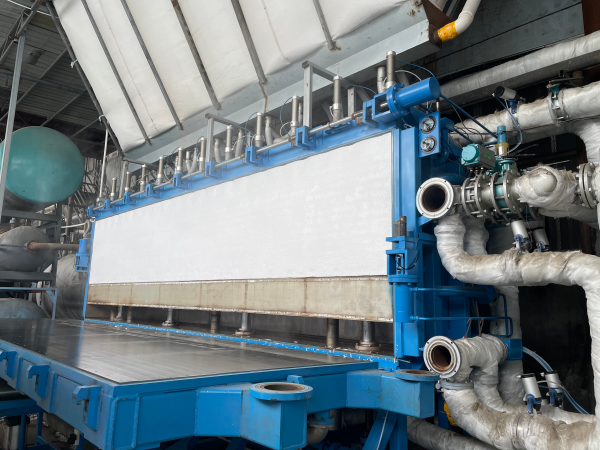

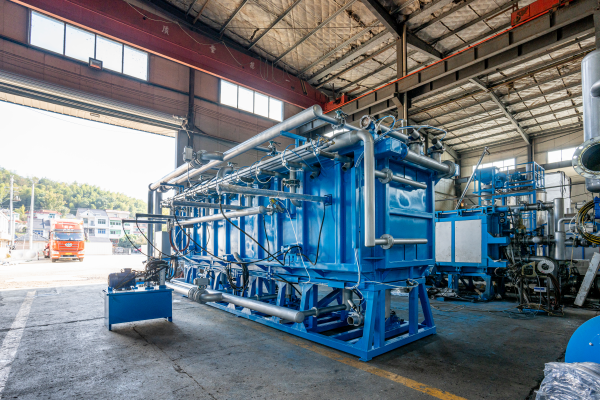

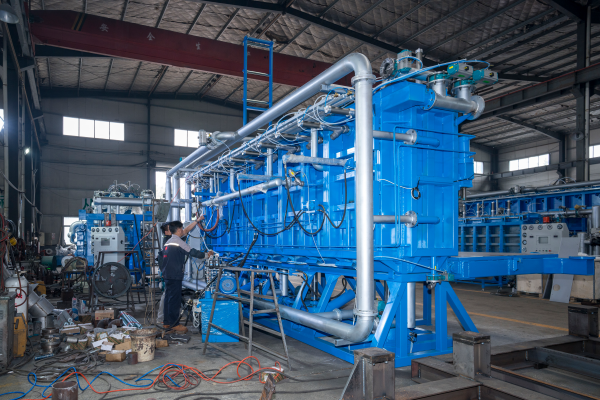

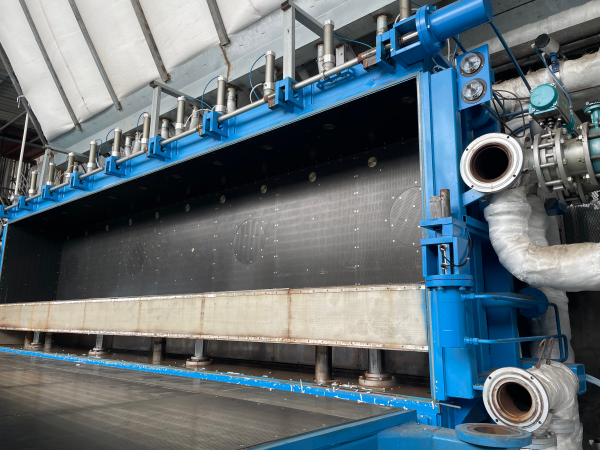

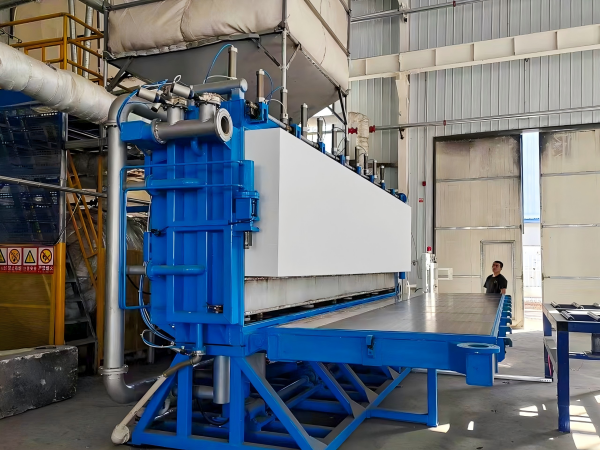

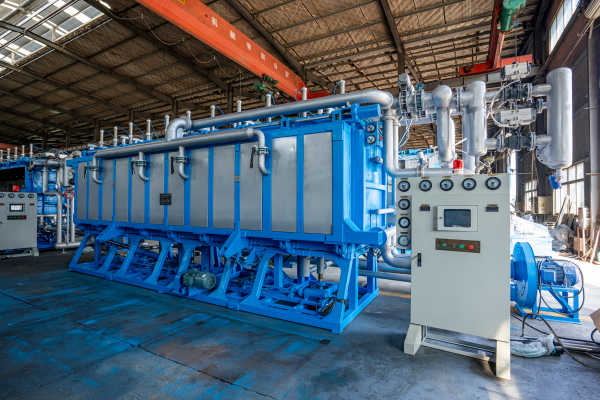

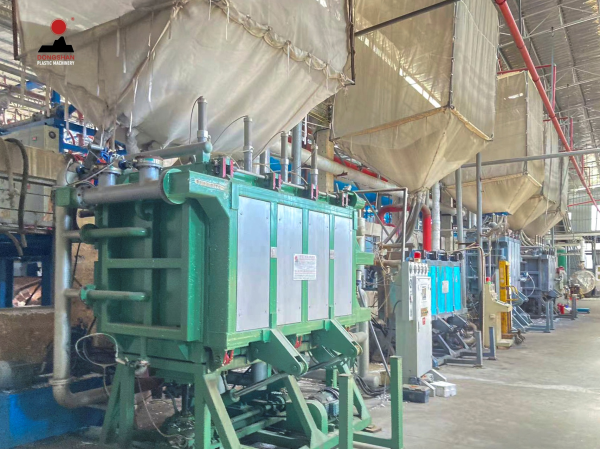

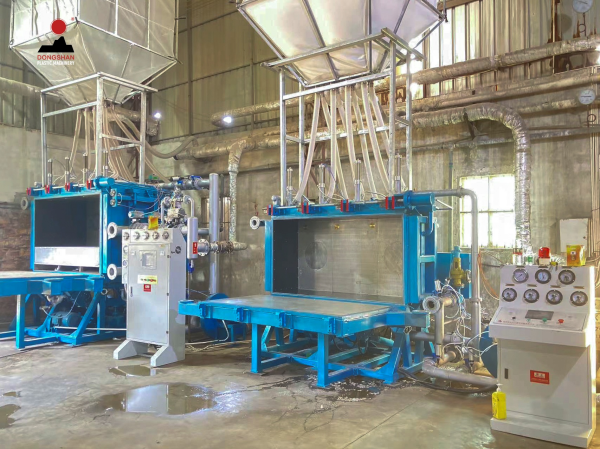

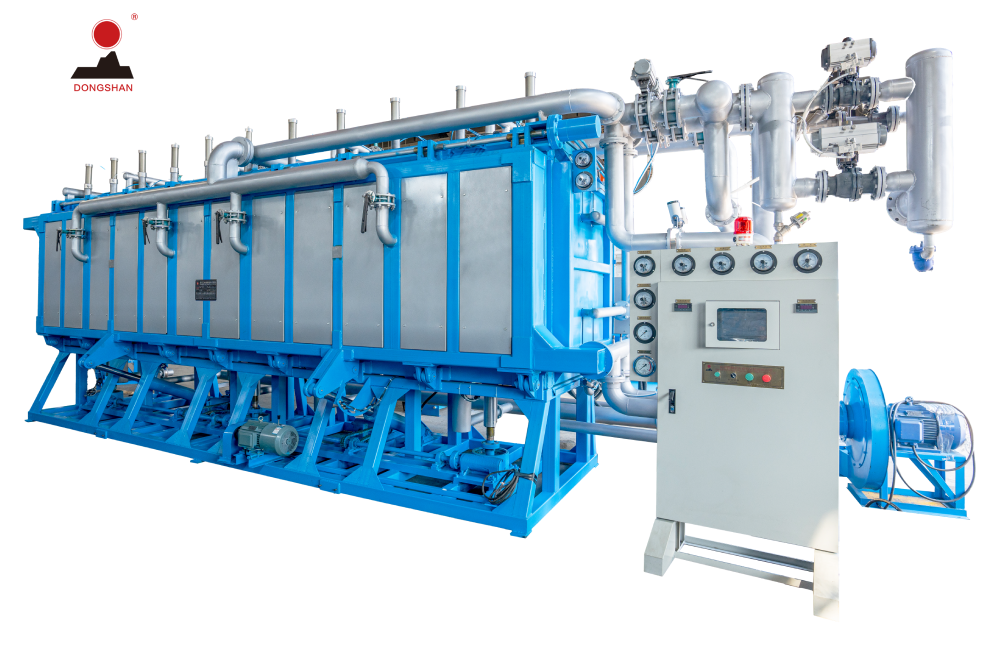

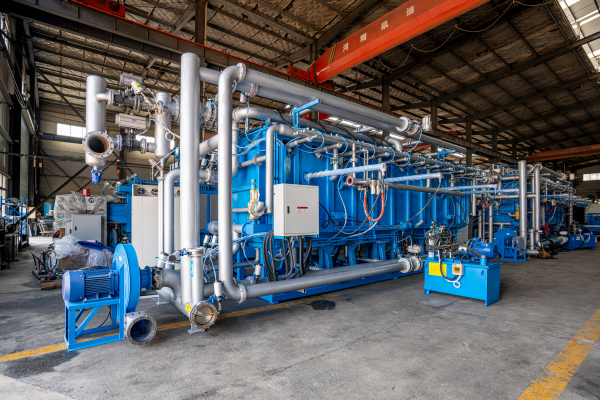

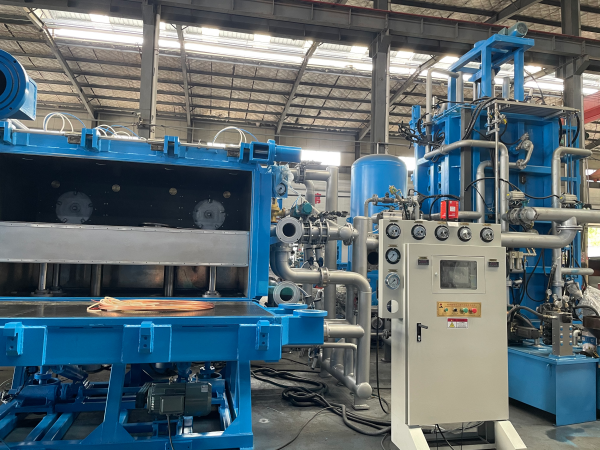

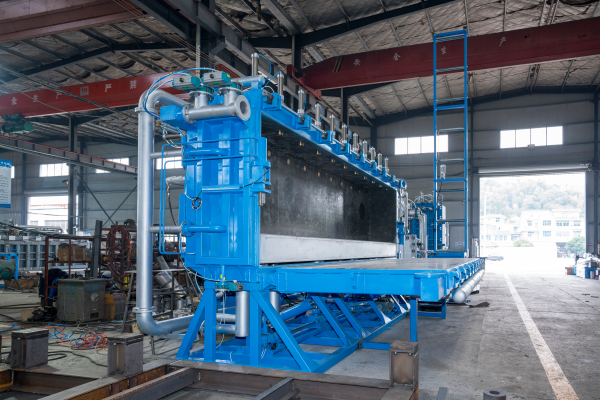

This EPS height-adjustable block forming machine is suitable for the production of foam blocks of a variety of size.
The equipment adopts an automated control system that can flexibly adjust the forming height to meet the needs of different customers for plates, plates or building materials.
Its energy-saving steam heating and efficient cooling system ensures uniform density and stable structure of the molded blocks.
The machine has a solid design and simple operation. It is suitable for long-term continuous production and is widely used in the manufacturing of building insulation boards, packaging boards and industrial foam products.
Products Detail
Applications
Video
Customer Cases
 |
 |
 |
 |
 |
 |
 |
 |
Technical Data
| ltem | Unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | SPB8000V | |
| Mould cavity Size | mm | 2080×(1240-800)×630 | 3080×(1240-800)×630 | 4100×(1240-800)×630 | 6120×(1240-800)×630 | 8140×1240×630 | |
| Block Size | mm | 2000×(1200-800)×600 | 3000×(1200-800)×600 | 4000×(1200-800)×600 | 6000×(1200-800)×600 | 8000×1200×600 | |
| Steam | Entry | inch(mm) | 5"(DN125) | 5"(DN125) | 6"(DN150) | 8"(DN200) | 8"(DN200) |
| Consumption | kg/cycle | 25~45 | 45~65 | 60~85 | 95~120 | 115~160 | |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Entry | inch(mm) | 1.5"(DN40) | 1.5"(DN40) | 2"(DN50) | 2.5"(DN65) | 3"(DN80) | |
| Compressed Air | Consumption | m³/cycle | 1.5~2 | 1.5~2.5 | 1.8~2.5 | 2~3 | 2.5~3 |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Vacuum Cooling Water |
Entry | inch(mm) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) |
| Consumption | m³/cycle | 0.4 | 0.6 | 0.8 | 1 | 2 | |
| Pressure | Mpa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | |
| Drainage | Vacuum Vent | inch(mm) | 4"(DN100) | 5"(DN125) | 5"(DN125) | 5"(DN125) | 5"(DN125) |
| Steam Vent | inch(mm) | 4"(DN100) | 6"(DN150) | 6"(DN150) | 8"(DN200) | 8"(DN200) | |
| Air Cooling Vent | inch(mm) | 4"(DN100) | 5"(DN125) | 6"(DN150) | 8"(DN200) | 8"(DN200) | |
| Capacity @15kg/m³ | min/cycle | 4 | 6 | 7 | 8 | 8 | |
| Connected Load/Power | KW | 20/35 | 20/35 | 25/40 | 29/51 | 31/55 | |
| Overall Dimension(L*W*H) | mm | 5700×4000×3300 | 7200×4000×3500 | 11000×4500×3500 | 12600×4500×3500 | 15700×4600×3500 | |
| Weight | KG | 8000 | 9500 | 15000 | 18000 | 21000 | |
