High-Precision Width-Adjustable EPS Vertical Block Molding Machine for Zero-Waste Custom Packaging

Specification

Machine Introduce

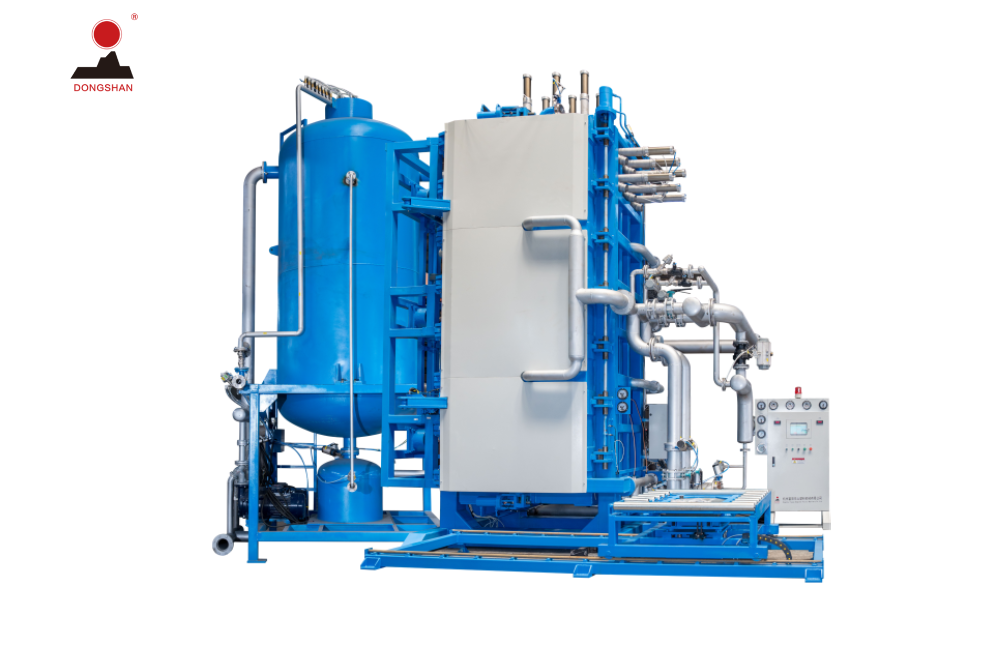

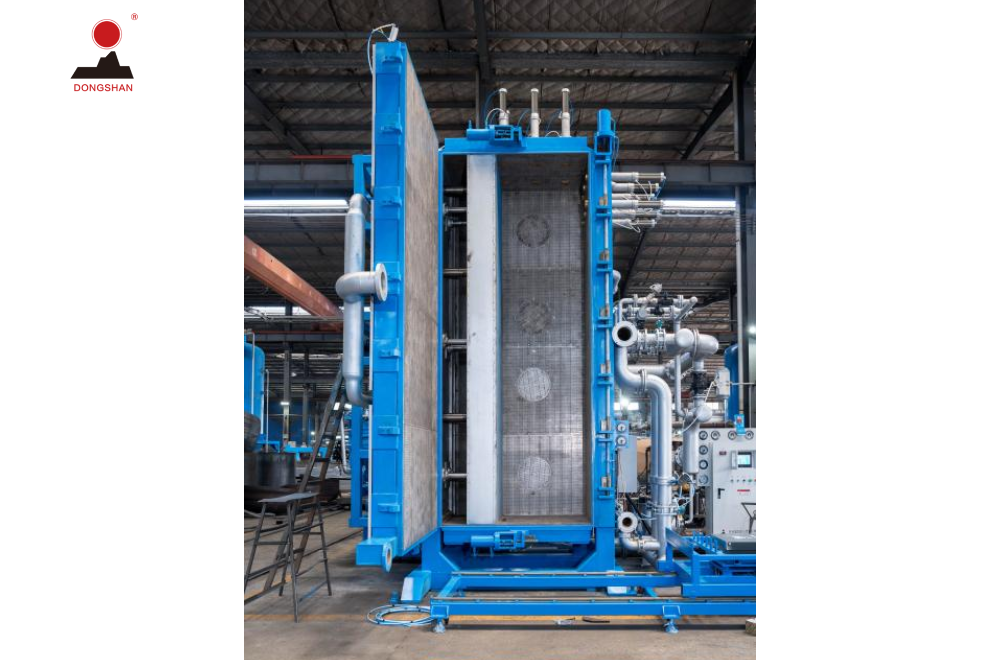

EPS European Vertical Adjustable Block Molding Machine: Precision, Efficiency, and Flexibility
Introducing the new EPS European Vertical Adjustable Block Molding Machine from Fuyang Dongshan Plastic Machinery Co., Ltd. This machine is engineered for superior performance, offering high precision, energy efficiency, and unparalleled production flexibility for EPS block molding.
I. Core Feature: Adjustable Dimensions & Waste Reduction
Adjustable Width Mechanism (New): The machine features a left-and-right adjustable mold width, allowing customers to freely set the size based on product orders. This crucial feature significantly minimizes edge waste (scrap material), enhancing material utilization and overall profitability.
Dual-Head Precision (Recap): The adjustable mechanism is controlled by a high-precision encoder closed-loop system, ensuring fast, efficient, and accurate size configuration within the working range (e.g., 4m to 5m).
II. Robust Machine Structure & Durability (01)
The machine is built for long-term reliability and safety:
High-Strength Frames: Inner molds are welded with robust rectangular tubes and steel plates. They undergo electric furnace stress-relieving annealing to ensure superior frame strength and ultimate operational safety.
Heat-Treated Molds: All block mold frames are heat-treated to release welding pressure, effectively preventing long-term deformation and guaranteeing stable performance.
Enhanced Corrosion Resistance: Post-heat-treatment, sandblasting is applied to boost rust resistance and improve coating adhesion, providing superior corrosion protection and significantly extending machine life.
Safety Assurance: The machine is equipped with three German gauges and safety valves and subjected to rigorous multiple water pressure and steam tests to certify stability and safety standards.
III. Optimized Steam and Energy System (02)
Designed for maximum efficiency and longevity:
Steam Efficiency: Utilizing three smaller ball valves instead of a single large valve can save up to 20% of steam consumption.
Stable Components: Features ISO-standard butterfly valves for enhanced system stability and component longevity.
Energy-Saving Heating: Advanced 3D heating penetration technology shortens the overall heating time and significantly reduces energy use.
Heavy-Duty Compatibility: The stainless steel platen surface is perfectly suited for high-density block production, further extending the machine’s operational lifespan.
IV. Intelligent Control and Process Automation (03 & 04)
The advanced control system ensures user-friendly operation and process reliability:
User-Friendly Operation: Adopts a reliable Mitsubishi PLC and a Schneider touch screen interface for intuitive and easy operation.
Precise Filling Control: Equipped with material level sensors to accurately regulate and control the filling process.
Fully Automatic Cycle: The block cooling process is precisely controlled by foam pressure sensors, enabling full automation of the entire cycle: filling, heating, cooling, and mold opening.
Space-Efficient Design: The vertical frame structure not only saves floor space but also features excellent drainage, which significantly reduces the final block moisture content.
Remote Oversight: A remote control system is integrated for real-time process monitoring and simplified remote troubleshooting.
