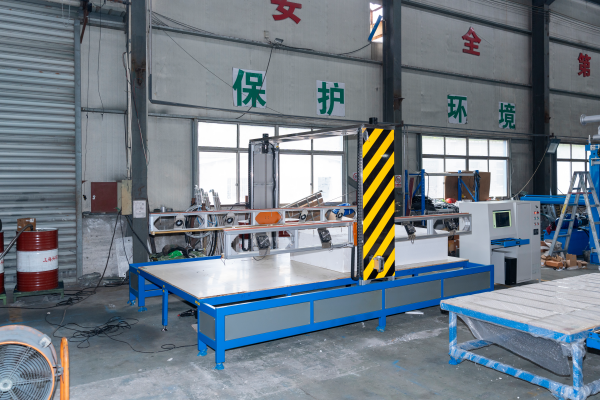

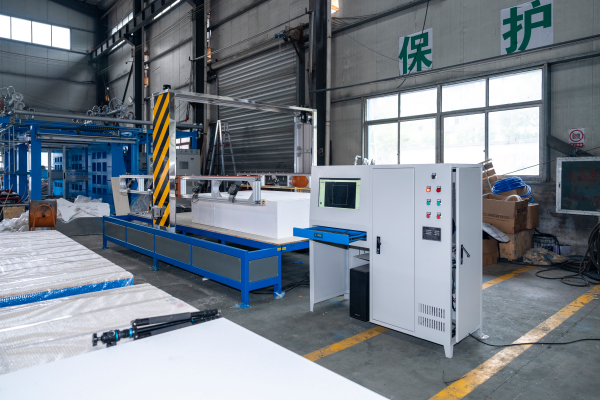

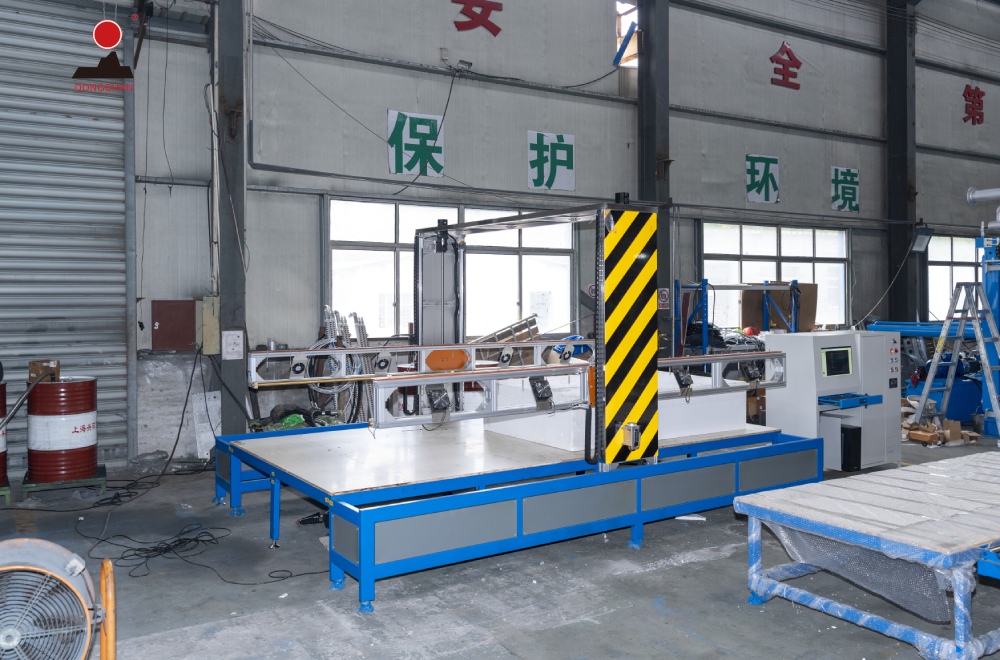

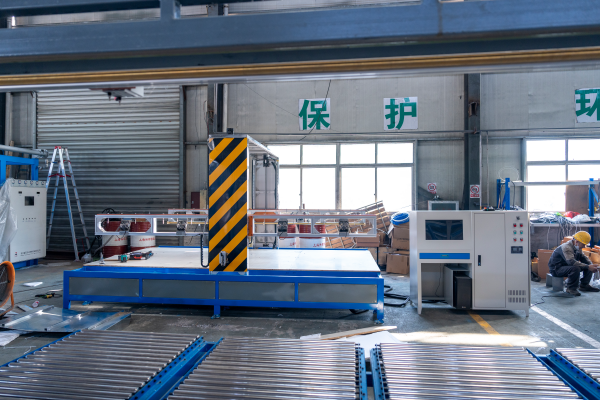

CNC 2D EPS Foam Cutting Machine

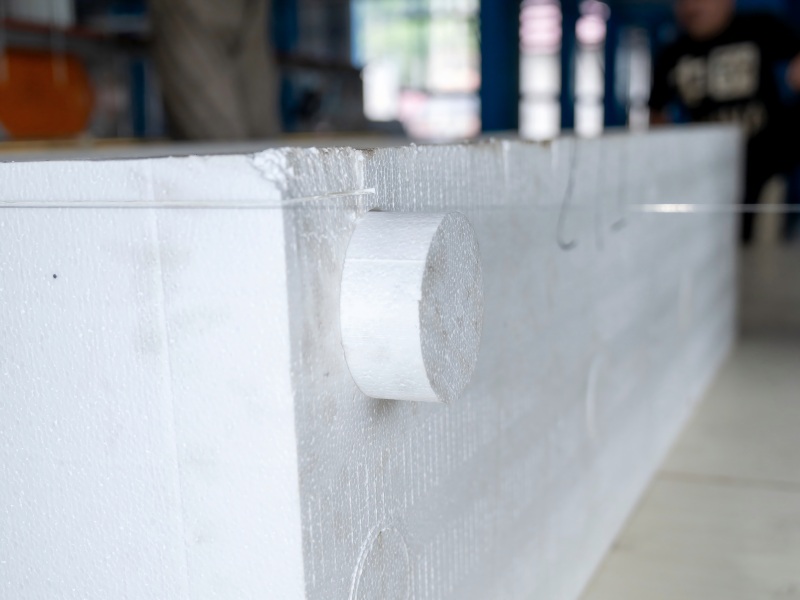

This CNC 2D EPS foam cutting machine is controlled by a CNC system and can achieve high-precision two-dimensional cutting. It is suitable for the production of EPS sheets, packaging parts and decorative components.

The equipment is simple to operate, fast cutting speed, and stable precision. It supports multiple graphics and size customization to meet different needs of building insulation, advertising display and industrial applications.

Efficient automated control not only improves production efficiency, but also reduces labor costs, making it an ideal choice for EPS processing plants.

Products Detail

Mechanical features:

1. All the profiles of the machine are connected by aluminum alloy, and the appearance is simple Clean beauty, stable movement, high precision; at the same time, the equipment has a line.process protection Function, when the movement stroke exceeds the specified stroke, the equipment automatically protects to stop;

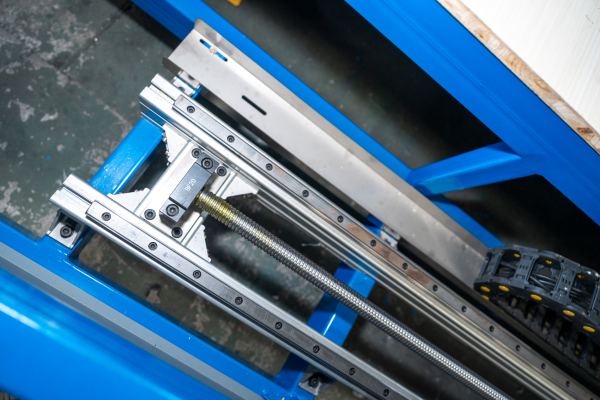

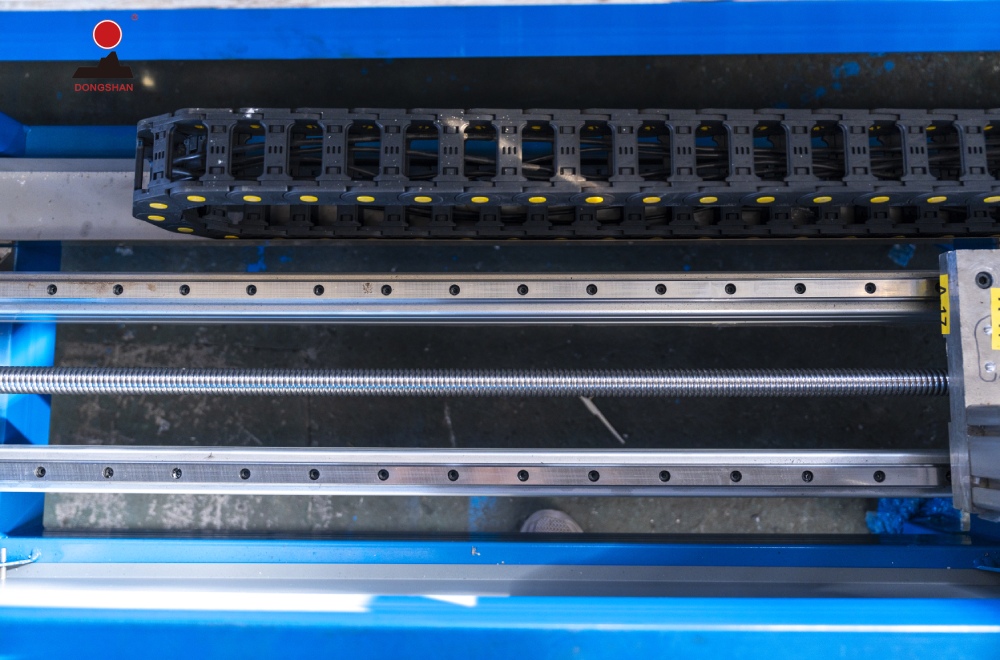

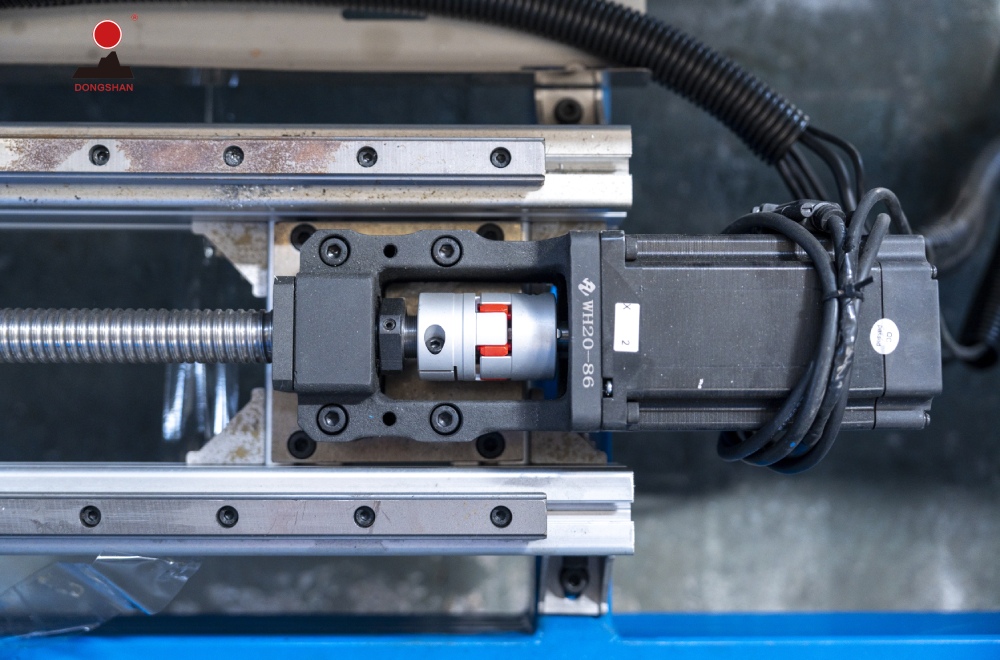

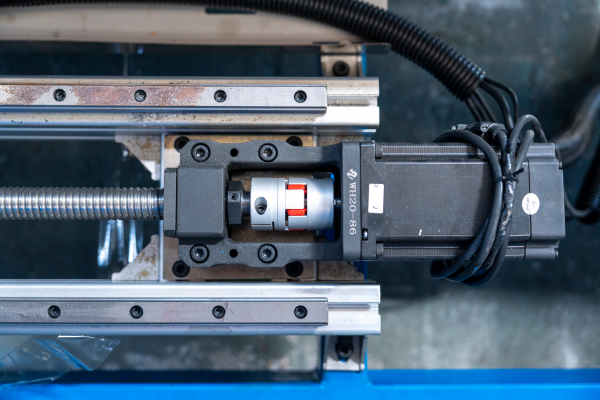

2. Machine adoptionX,Y,U,V Directions are closed-loop stepper motors plus synchronization Belt drive(or ball screw), smooth and free operationspeed regulation, suitable Cutting special graphics requires constant speed change and mechanical control accuracy. For0.05mm。

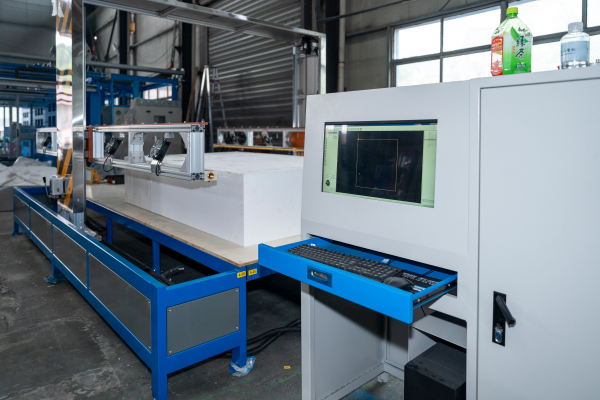

Control and Software:

1. Drawing software:AUTOCAD;

2. Cutting software:USB Controller;

3. Cutting file format:*NC,*.DXF;

4. Electrical components: SCHNEIDER;

5. Remote control handle;

6. Protection.

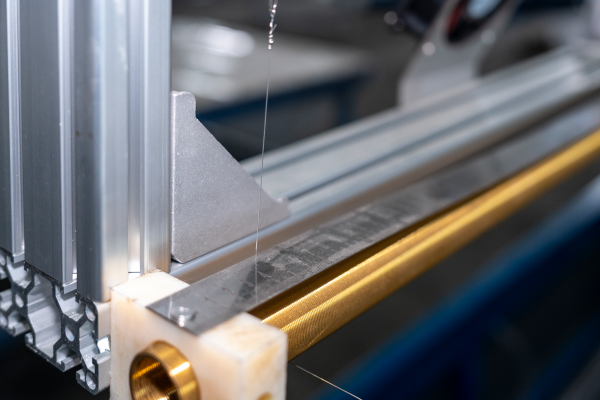

A.The cutting wire is broken, and the equipment will automatically stop heating

B.With four travel switch protection stroke

Technical Data

NO	Deseription		UNIT	FC200	FC250	FC200(4 blocks)
1	Max. Net Cut Size/Max. Net Cutting Size		mm	2100 × 2100 × 1300	2500 × 2100 × 1300	2000 × 2100 × 1300


2	Cutting steel wire material/specification/ Cuting Wire Material/Specification		mm	φ0.4G20Ni80	φ0.4G20Ni80	φ0.4G20Ni80


3	Max Hot Wire/Max Hot Wire		pecs	12	10	10
4	Stepper Motor Torque/Step Motor Torsion		N.M	4-8.5	4-8.5	4-8.5
5	Total Capacity/Total Capacity		KW	19	19	19
6	Cutting Speed Range/Cutting Speed Range		m/min	0.3~0.8m/min	0.3~0.8m/min	0.3~0.8m/min
7	Voltage Regulator/VoltageRegulator	Power/Power	KVA	15	15	20

		Voltage/Voltage	v	0 ~ 220 (adjustable)	0 ~ 220 (adjustable)	0 ~ 220 (adjustable)
8	Cutting Length/Cutting Size		mm	1400	1400	3500
9	Total Length/Overall Size		mm	3200 × 3100x2500	3200 × 3600 × 2500	4580x3100 × 2500
10	Gross Weight		Kg	700	750	850
