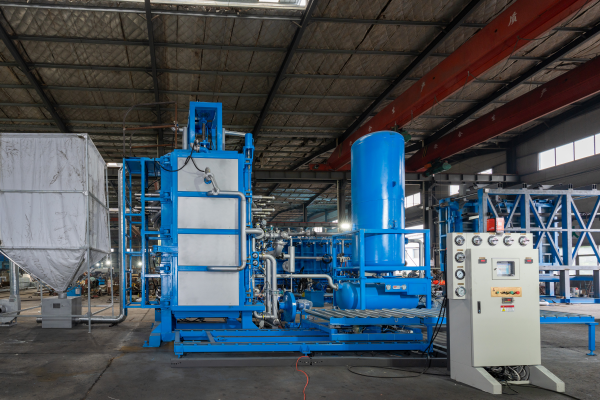

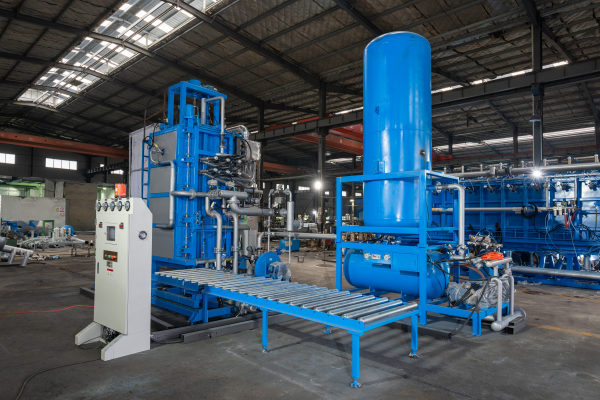

The blocking moulding machine has all advantages including the features of V type block molding machine.

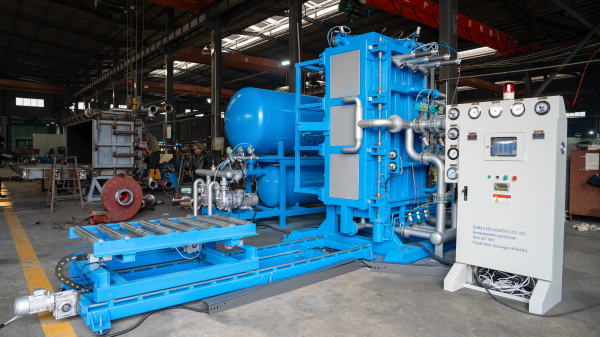

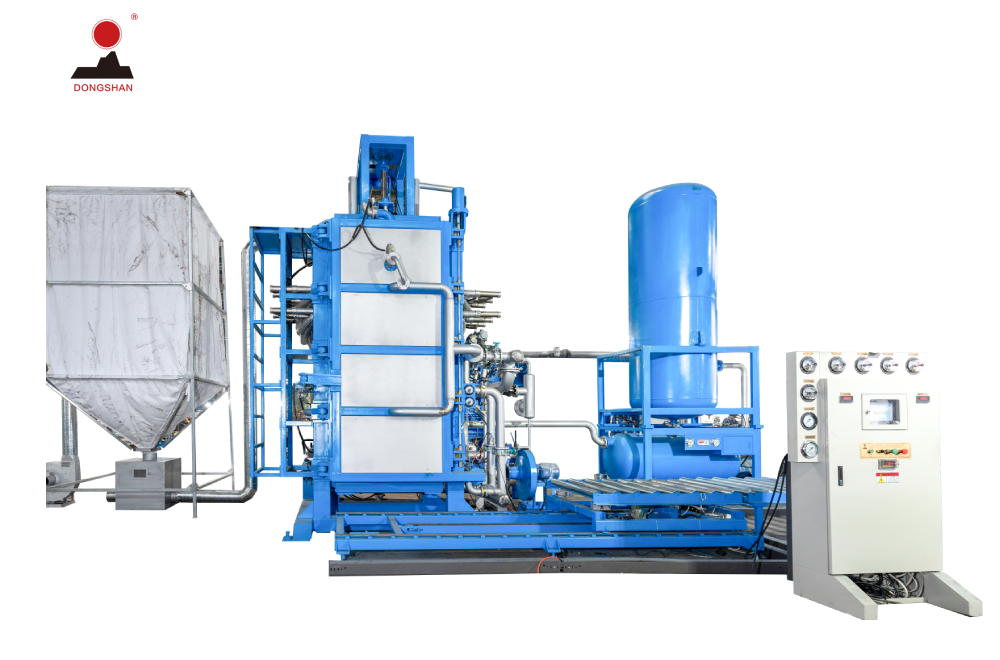

Products Detail

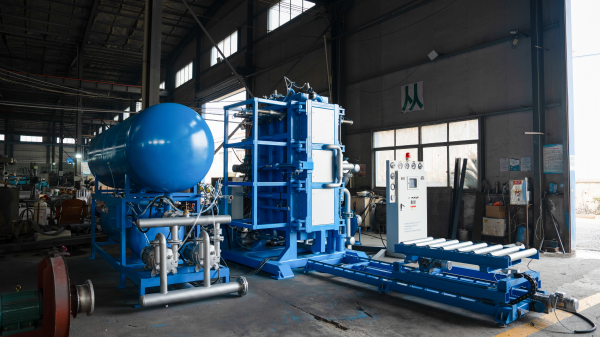

Less space Requirements.
The final block size can be single continuous adjustment in height

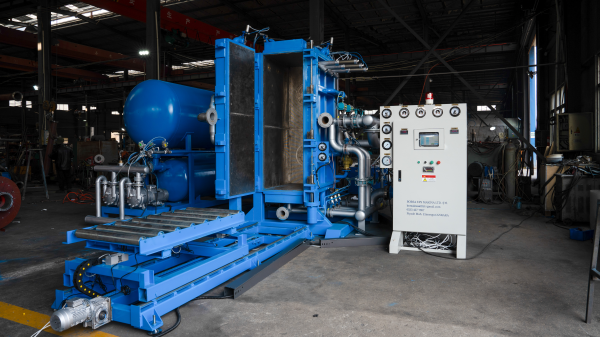

The polystyrene mould is welded onto strong rectangular tubes and steel plates to ensure a high strength frame, for more security
All block mould frames are processed by heat-treatment,to release the welding pressure and avoid deforming. The EPS automatic shape moulding machine can maintain good performance and supply a long life term.
All mould frames with heat treatment are processed by sand blasting treatment to get rust prevention, so that the under coat and final coat are greatly improved for anticorrosion perfor- mance.
Adopts three German gauges and safety valve for increased protection, the EPS styrofoam block moulding machine passed water pressure and steam many testing to ensure the machine more stable and safety.

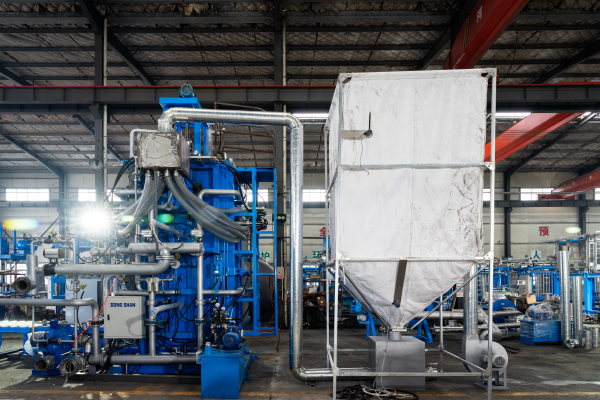

Steam system

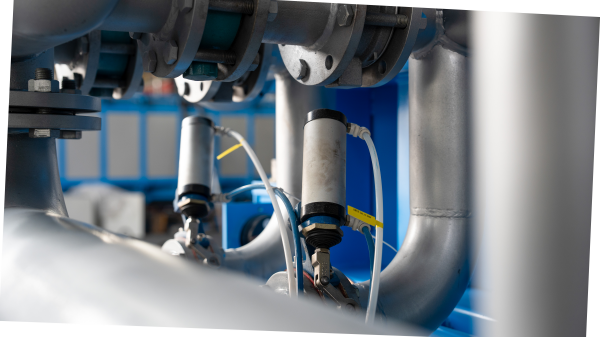

Three ball valves can save 20% steam compared with one big valve.

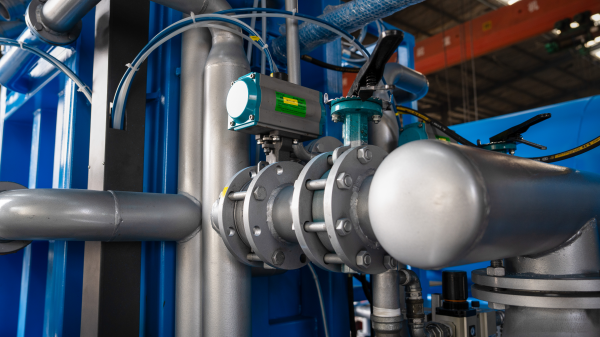

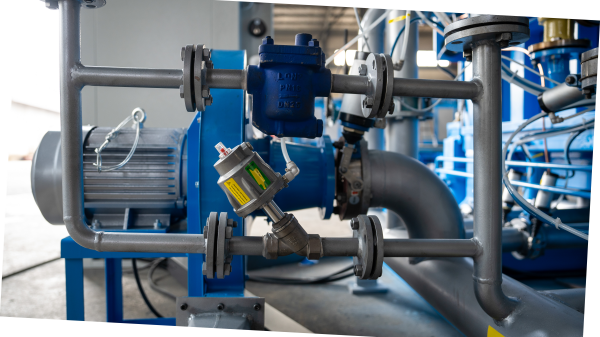

With ISO-standard butterfly valves,which can improve greatly the stability and long life of the thermocol block moulding machine.
3 dimension heating penetrating to shorten the heating time and energy saved.
Control system
Adopts industrial PLC (Mitsubishi) and touch screen weinview), these make the thermocol block moulding machine easy to operate.
Fully integrable with customer ERP software for controlling the production
The machine equipped with material level sensor for control filling process. Block cooling is controlled by foam pressure sensor to sense the filling,heating,cooling and opening of the block mould.The whole process is automatic.
Remote Control for distance support

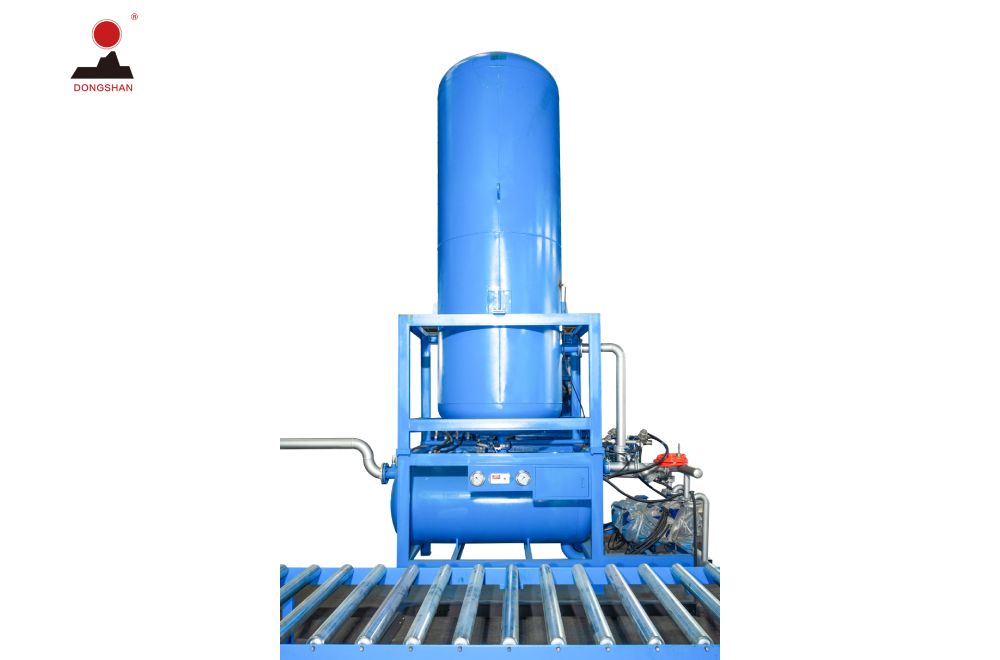

Less space occupied,with good drainage performance,reducing moisture content of block. The remote control system can watch the whole process timely.
 |
 |
 |
 |
 |
 |
 |
 |
Technical Data
|
Item Mould cavity Size |
Unit mm |
SPB2000LZ 2040×1240 ×1030 |
SPB3000LZ 3060×1240 ×1030 |
SPB4000LZ 4080×1240 ×1030 |
SPB6000LZ 6080×1240 ×1030 |
|
|
Block Size(12g/L) |
mm |
1850-2000×2000 ×1000 |
2850-3000×1200 ×1000 |
3850-4000×1200 ×1000 |
5850-6000×1200 ×1000 |
|
|
Steam |
Inlet |
inch |
4＂(DN100) |
5＂(DN125) |
6＂(DN150) |
8＂(DN200) |
|
Consumption |
kg/cycle |
70~100 |
100~130 |
130~160 |
150~180 |
|
|
Pressure |
Mpa |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
|
|
Compressed Air |
Inlet |
inch |
3＂(DN80) |
3＂(DN80) |
4＂(DN100) |
4＂(DN100) |
|
Consumption |
m3/cycle |
1.5~2.5 |
2~3 |
2.5~3.5 |
3.5~4.5 |
|
|
Pressure |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Vacuum |
Inlet |
inch |
2＂(DN50) |
2.5＂(DN65) |
3＂(DN80) |
3＂(DN80) |
|
Cooling Water |
Consumption |
kg/cycle |
0.6~0.8 |
0.8~1.0 |
1.0~1.2 |
1.2~1.4 |
|
Pressure |
Mpa |
0.4~0.6 |
0.4~0.6 |
0.4~0.6 |
0.4~0.6 |
|
|
Drainage |
Drain Outlet |
inch |
5＂(DN125) |
6＂(DN150) |
8＂(DN200) |
8＂(DN200) |
|
Air Outlet |
inch |
6＂(DN150) |
8＂(DN200) |
8＂(DN200) |
8＂(DN200) |
|
|
Vacuum drain Outlet |
inch |
4＂(DN100) |
5＂(DN125) |
5＂(DN125) |
5＂(DN125) |
|
|
Produce time / Cycle（12g/L） |
min/cycle |
6 |
7 |
8 |
12 |
|
|
Connected Load/Power |
KW |
13/28 |
16.5/28.5 |
16.5/28.5 |
16.5/28.5 |
|
|
Overall Dimension(L*W*H) |
mm |
6700×4600×4100 |
6700×4600×5100 |
6700×4600×6100 |
6700×4600×8100 |
|
|
Weight |
KG |
12200 |
14800 |
17200 |
19500 |
|
