High-Precision EPS Automatic Batch Pre-Expander Machine Dongshan Plastic Machinery

The machine runs stably, is energy-saving and environmentally friendly, is easy to operate, reduces manual intervention and production costs, and is very suitable for mass production of EPS electrical packaging, foam trays, foam boards and other foam products. At the same time, Dongshan Machinery provides customized solutions that can flexibly adapt to production requirements of different specifications and production capacity.

Choosing Dongshan EPS automatic batch pre-foaming machine means choosing high efficiency, low energy consumption and reliable quality, helping companies improve production efficiency and market competitiveness.

Products Detail

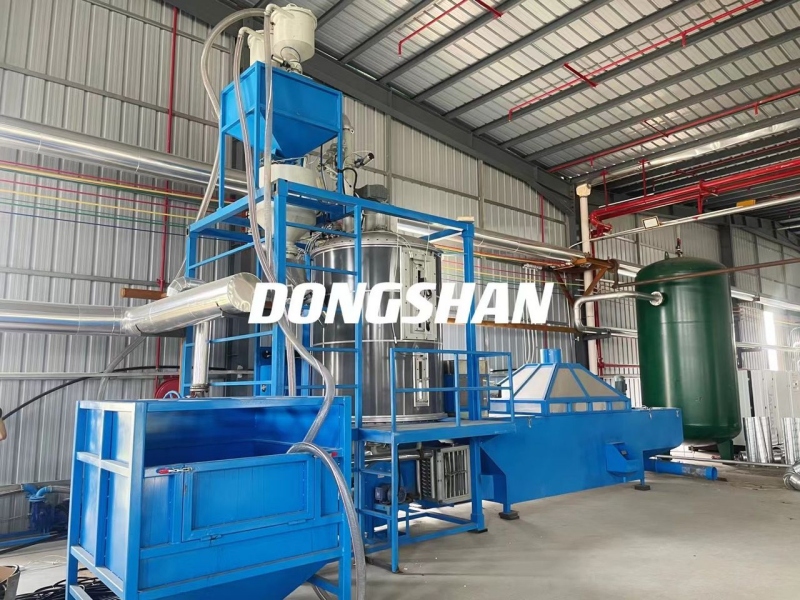

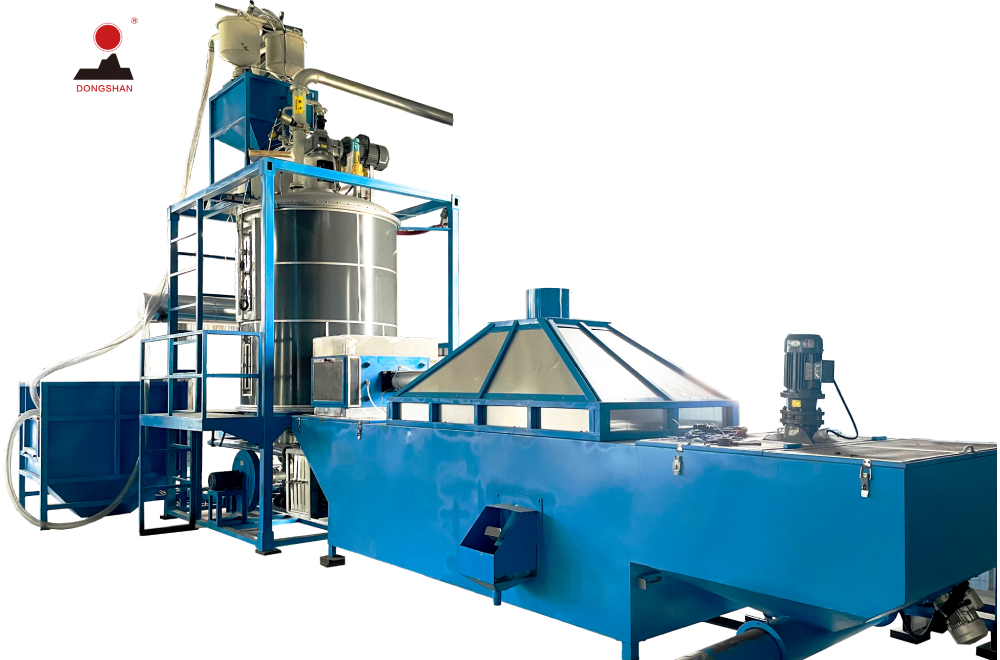

Auto Batch Pre-expander Machine

Control System
Controlled by PLC with human-touch screen, automatic operation, and convenient maintenance.
Easy and fast working process switching with computer memory function.
Structure Design
High-quality closed hot air drying system
Spare parts and fittings are from well-known brands which keep the machine in a long service life.

Processes
Electronic weighing system, photoelectric level control system, and automatic negative pressure filling device, keep the weight of expandable material accurately and the error rate of density ≤3%.
The temperature and steam pressure in the barrel are controlled by advanced Japanese high-precision pilot pressure reducing valve, ensure the pressure at the outlet of the reducing valve is always constant. The temperature in the barrel Temperature fluctuation control within ± 1% ℃
Closed constant pressure foaming is suitable for foaming production in high altitude anoxic areas.
The automatic discharge of the barrel adopts compressed air blowing
Once forming and circular production.

Production Efficiency
High efficiency and low labor intensity
Energy saving and low cost.

Application

Technical Data

Item		Unit	FDS1100	FDS1400 I-Il	FDS1500 I-Il	FDS1600 I-Il
Expansion Chamber	Diameter	mm	DN1100	DN1400	DN1500	DN1660
	Volume	m³	1.4	2.1	3.5	4.8
	Usable Volume	m³	1	1.5	2.5	3.5
Steam	Entry	inch(mm)	2"(DN50)	2"(DN50)	2"(DN50)	2"(DN50)
	Consumption	kg/cycle	6-8	8~10	9~12	11~14
	Pressure	Mpa	0.6~0.8	0.4~0.8	0.4~0.8	0.4~0.8
Pressure Air	Entry	inch(mm)	2"(DN50)	2"(DN50)	2"(DN50)	2"(DN50)
	Consumption	m³/cycle	0.9-1.1	0.5-0.8	0.6-0.9	0.7-1.1
	Pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Drainage	Upper Outlet	inch(mm)	4"(DN100)	5"(DN125)	5"(DN125)	6"(DN150)
	Down Outlet	inch(mm)	4"(DN100)	4"(DN100)	4"(DN100)	5"(DN125)
	Blower Outlet	inch(mm)	3"(DN80)	3"(DN80)	3"(DN80)	4"(DN100)
Material Conveying Pipe		inch(mm)	6"(DN150)	8"(DN1200)	8"(DN1200)	8"(DN2000)
Capacity(kg/h)		4g/L	一	230	310	390
		7g/L	一	350	435	520
		9g/L	320	450	575	700
		15g/L	550	750	975	1200
		20g/L	750	820	1160	1500
		30g/L	850	一	一	一
Total Power		kw	19	22.5	23.5	24.5
Expanded Density	Frist expanded(1)	kgm³	10~40	10~30	10~30	10~30
Expanded Density	Second expanded(II)	kgm³	一	4~9	4~9	4~9
Density Tolerance		%	±3%	±3%	±3%	±3%
Overall Dimension(LWH)		mm	4000×4500×5900	6500×4500×4500	7750×4500×4500	9000×3500×5500
Weight		kg	3200	4500	4600	4800
