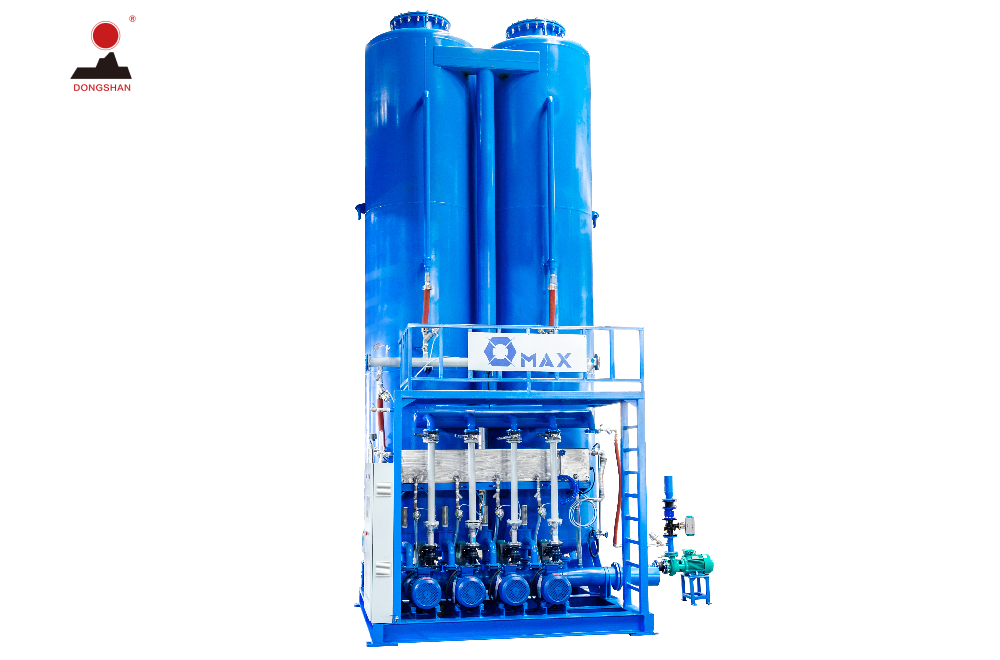

This efficient central vacuum system is specially designed for EPS foam production and provides stable suction and reliable air flow control to ensure efficient and smooth mold drying and forming processes.
The system is simple to operate and low to maintain, which can significantly improve the efficiency of the production line. It is suitable for various EPS pre-foaming, molding and cutting equipment, helping enterprises achieve stable production in large quantities.
Products Detail
Technical Data
| Number | Item | Spec | Qt′y | Remark |
| 1 | bucket | 7.5m³ | 2 | 15m³ |
| 2 | water pump | 5.5KW | 1 | / |
| 3 | vacuum pump | 11KW | 3 | / |
| 4 | connection of vacuum pipe | DN600 | 1 | / |
| 5 | drainage of vacuum pipe | DN200 | 1 | Two ends is exchangeable in position |
| 6 | inlet of cooling water | DN100 | 1 | |
| 7 | drainage of vacuum pump | DN200 | 1 | |
| 8 | inlet of air | DN25 | 1 | / |
| 9 | overall size | 3000X2900X7500mm | ||
| 10 | weight | 10000KG | ||
Video

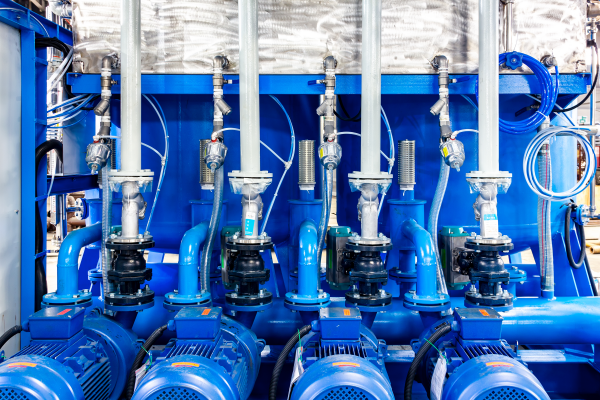

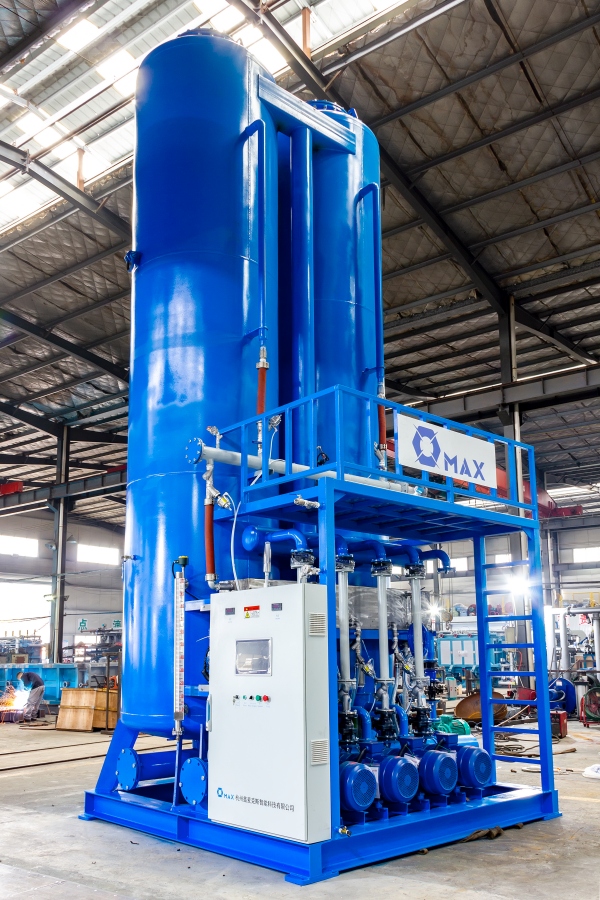

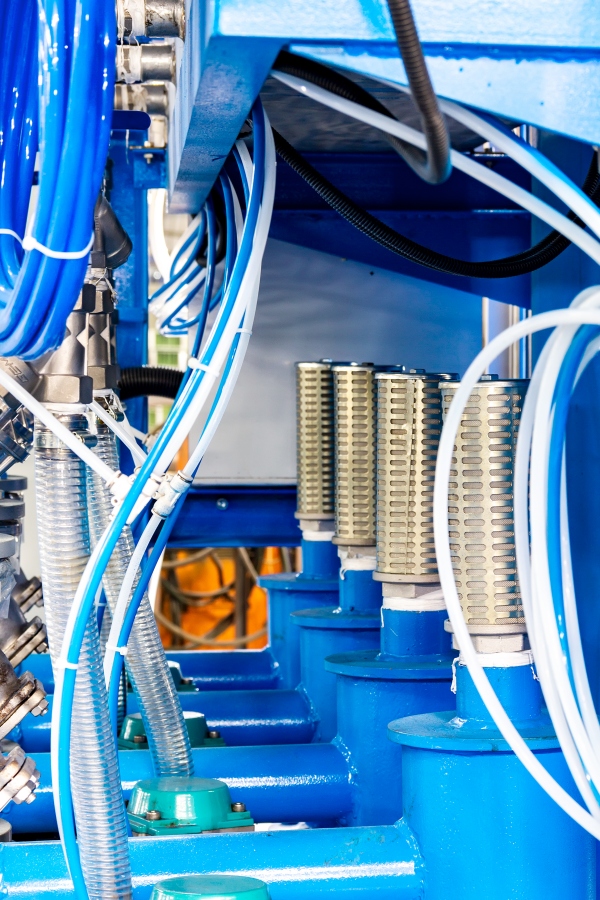

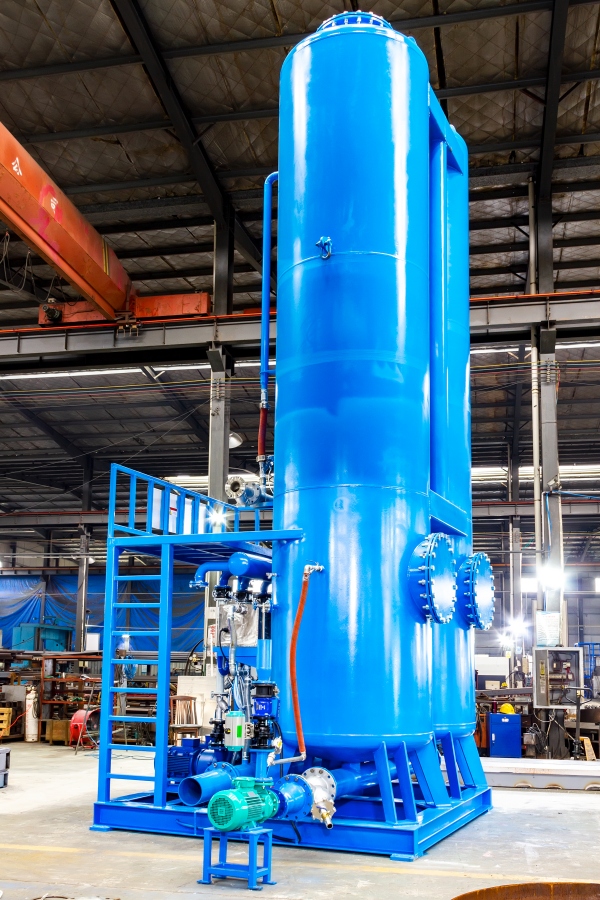

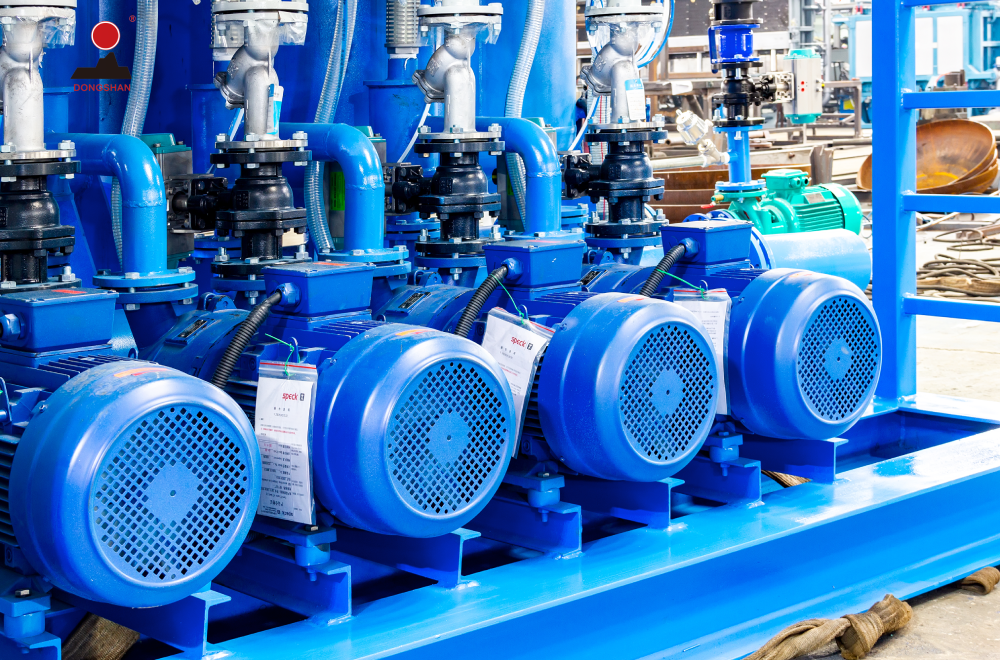

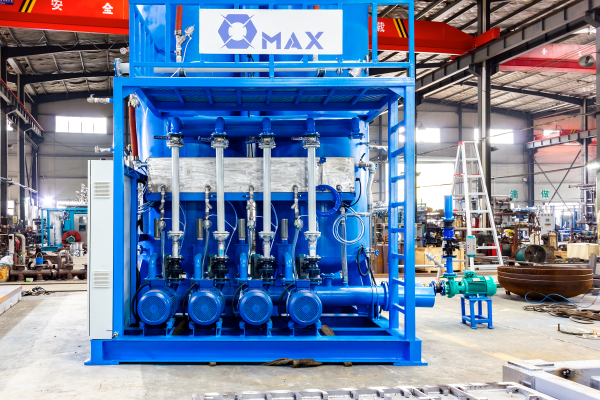

Detail
 |
 |
 |
 |
 |
 |

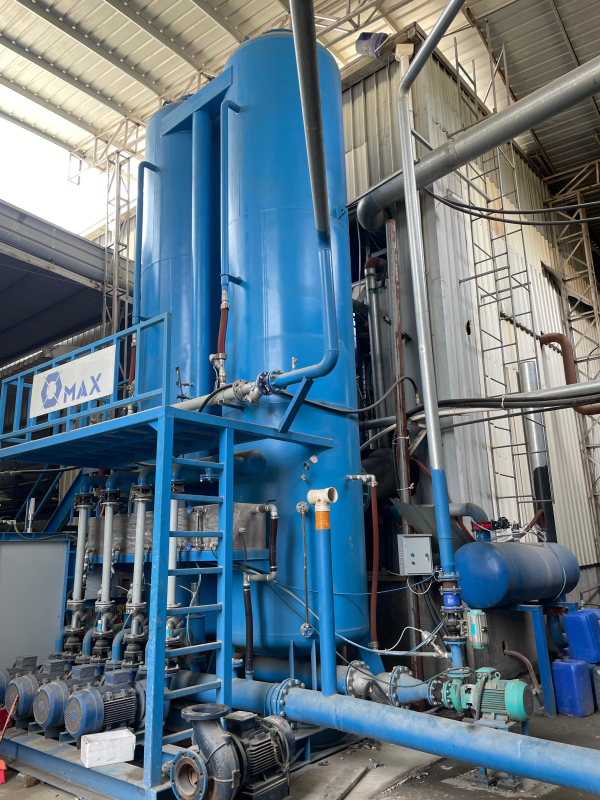

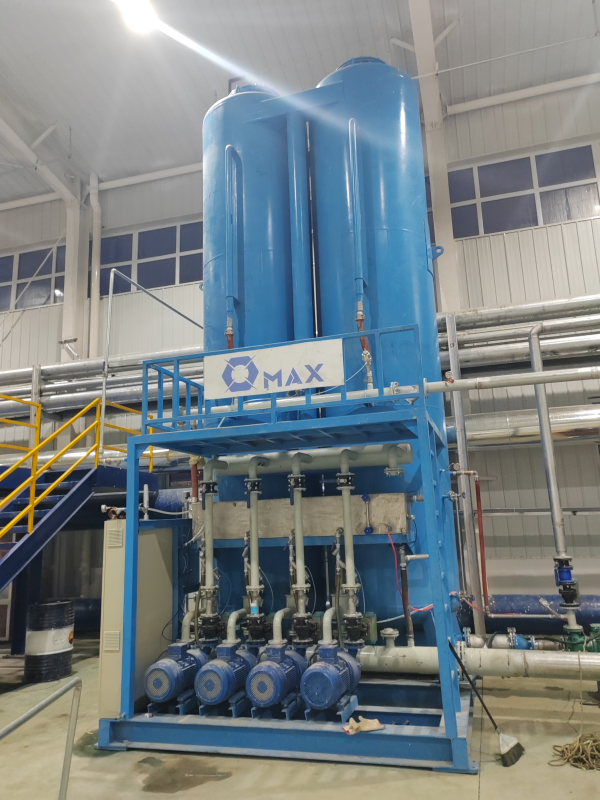

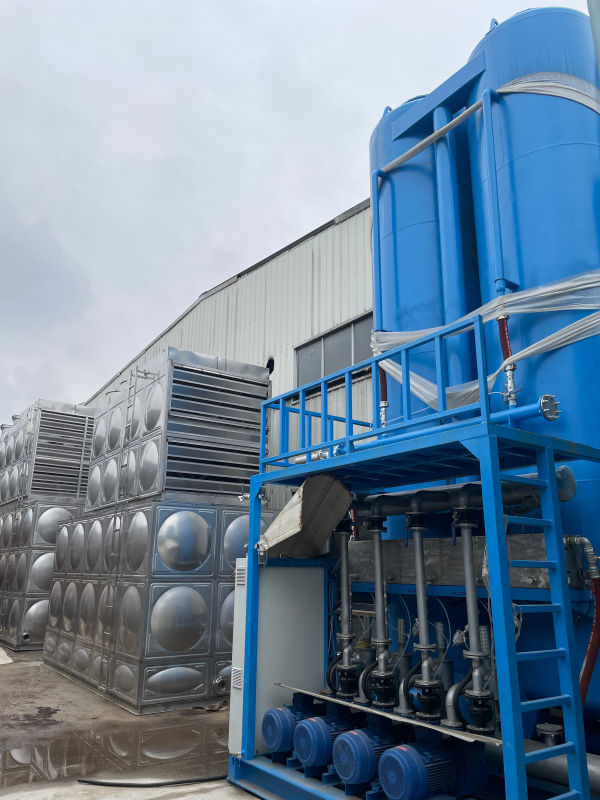

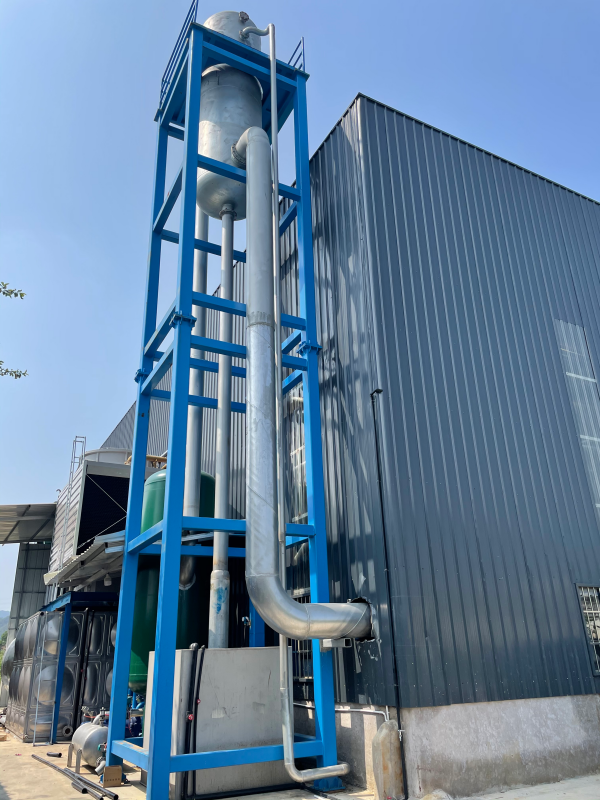

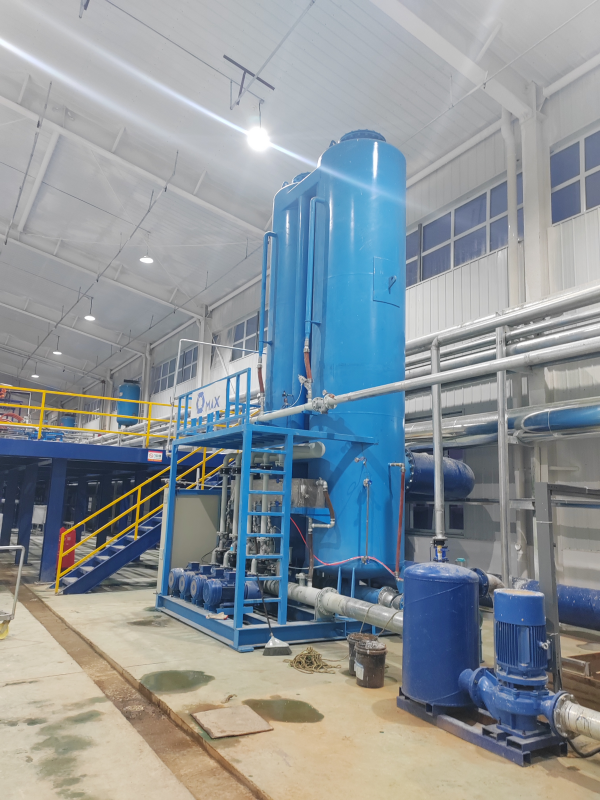

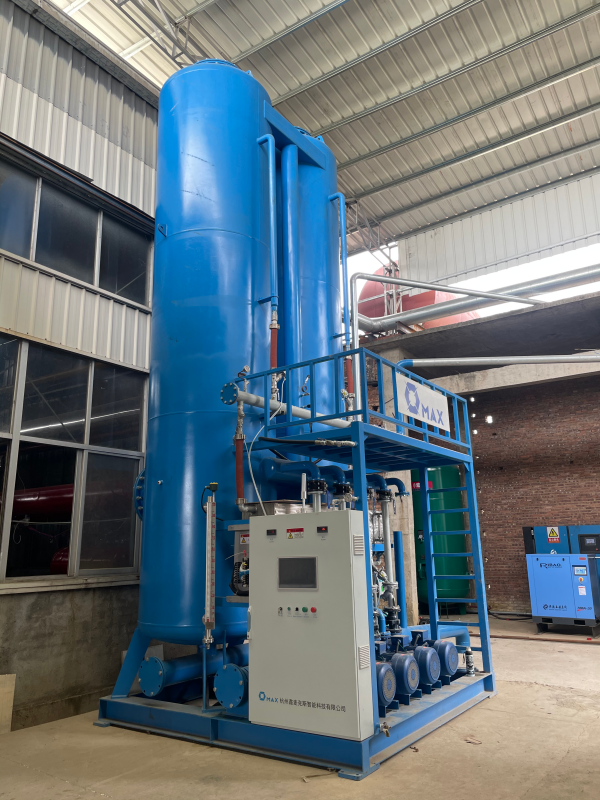

Customer Cases
 |
 |
 |
 |
 |
 |

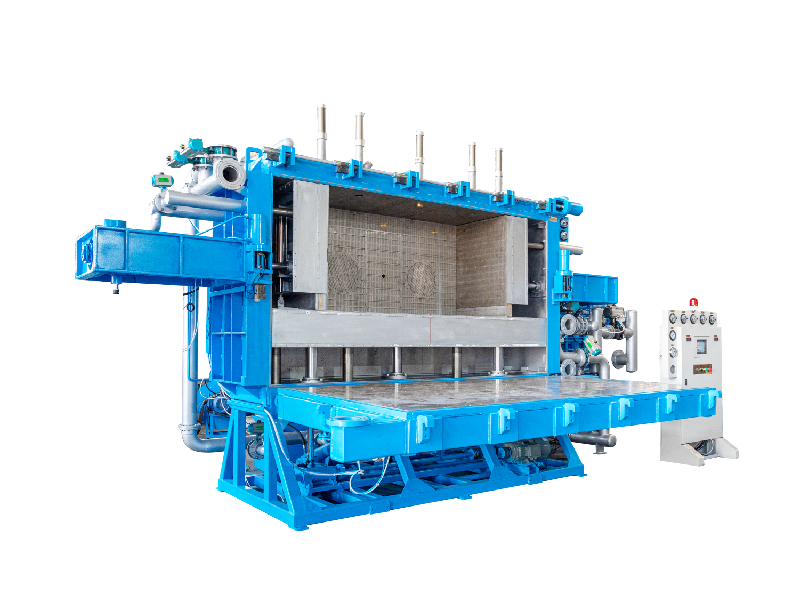

Related Products
