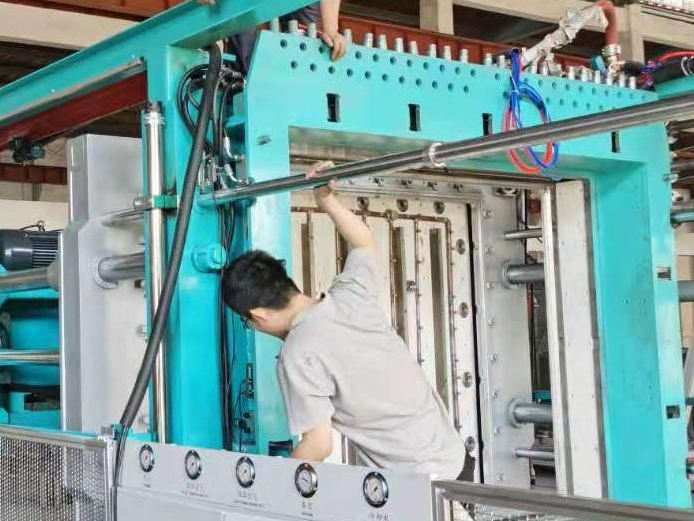

New type Quick mold changing machine

01. Mechanical Structure and Pipeline System：

· Self - contained insulated mold cavity cuts heating & demoulding heat loss, saving 30% steam energy.

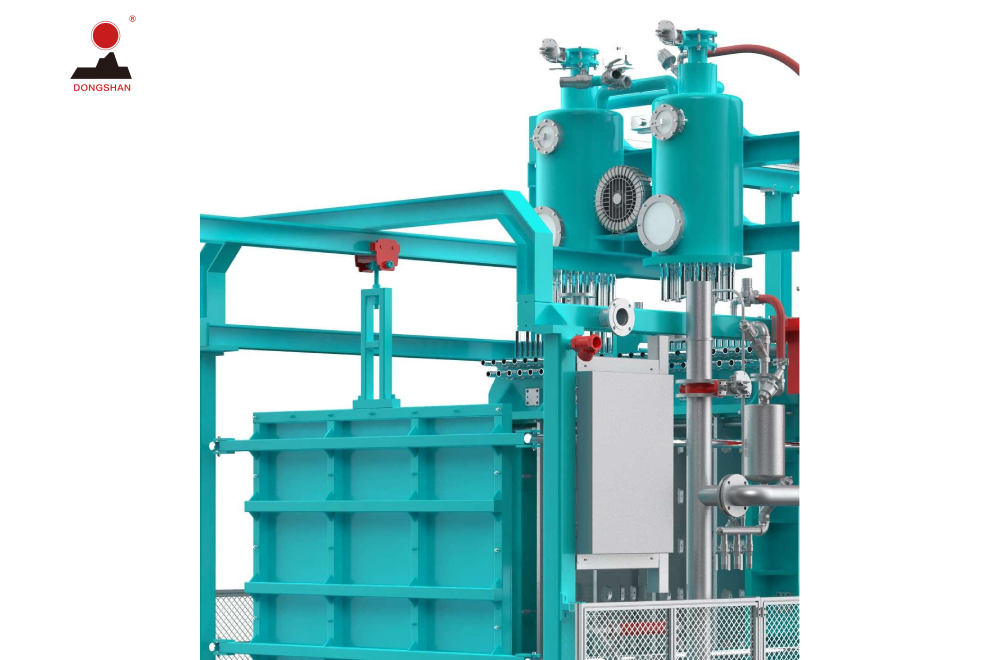

· Horizontal dual - material barrels enable dual - density production with feeding, vacuum & pulse feeding.

· Stainless - steel quick - plug material gun connector for fast, accurate connection.

· Mold body of high - strength steel, workpieces beveled, gas - welded, then annealed.

· 4 x Φ100mm 45# steel guide columns, high - frequency quenched, 0.08 - 0.1mm hard - chrome plated.

02. Hydraulic System:

· Digital encoder controls smooth - shifting mold stroke. Triple (mechanical, hydraulic, electrical) safety interlocks meet standards.

03. Steam Heating System：

· Remote - controlled steam valve for stable flow, ±0.2 bar accuracy.

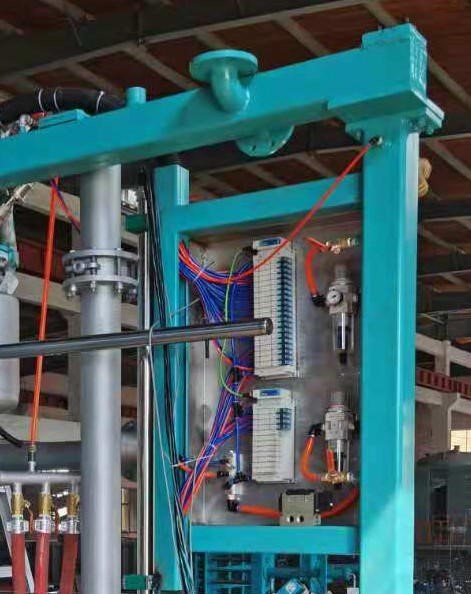

· Electrical proportional valve adjusts air pressure to control steam, demoulding, feeding & barrel pressures via touch - screen.

· Pressure sensor gives accurate cavity pressure feedback.

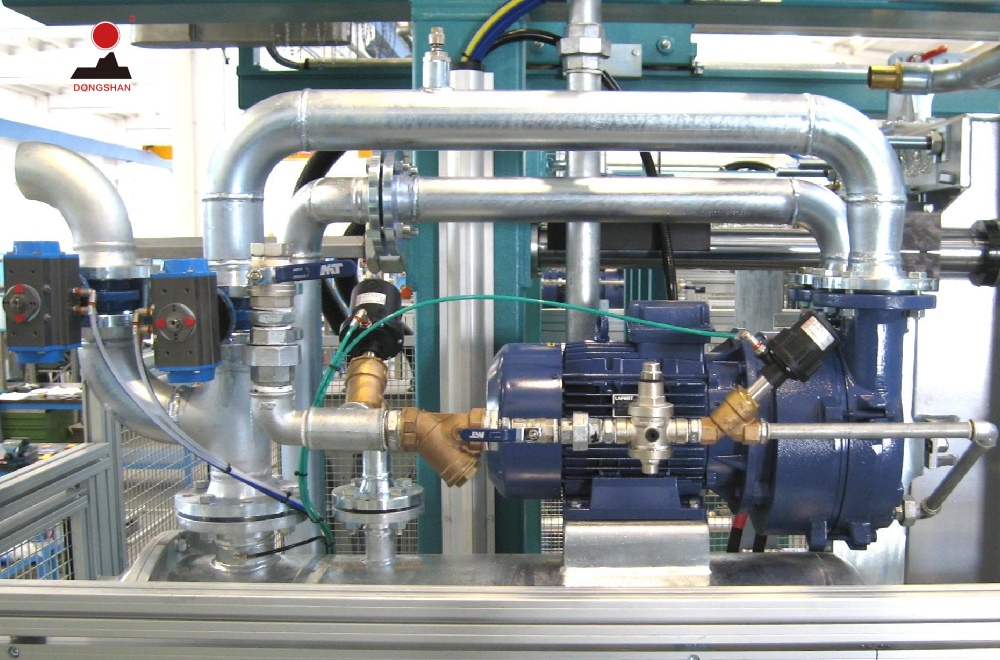

· Single - machine energy recovery boosts vacuum efficiency, cuts vacuum power by >50%.

04. Electrical Control System：

· First - tier PLC and touch - screen monitor equipment in real - time, with fault alarms and operation protection.

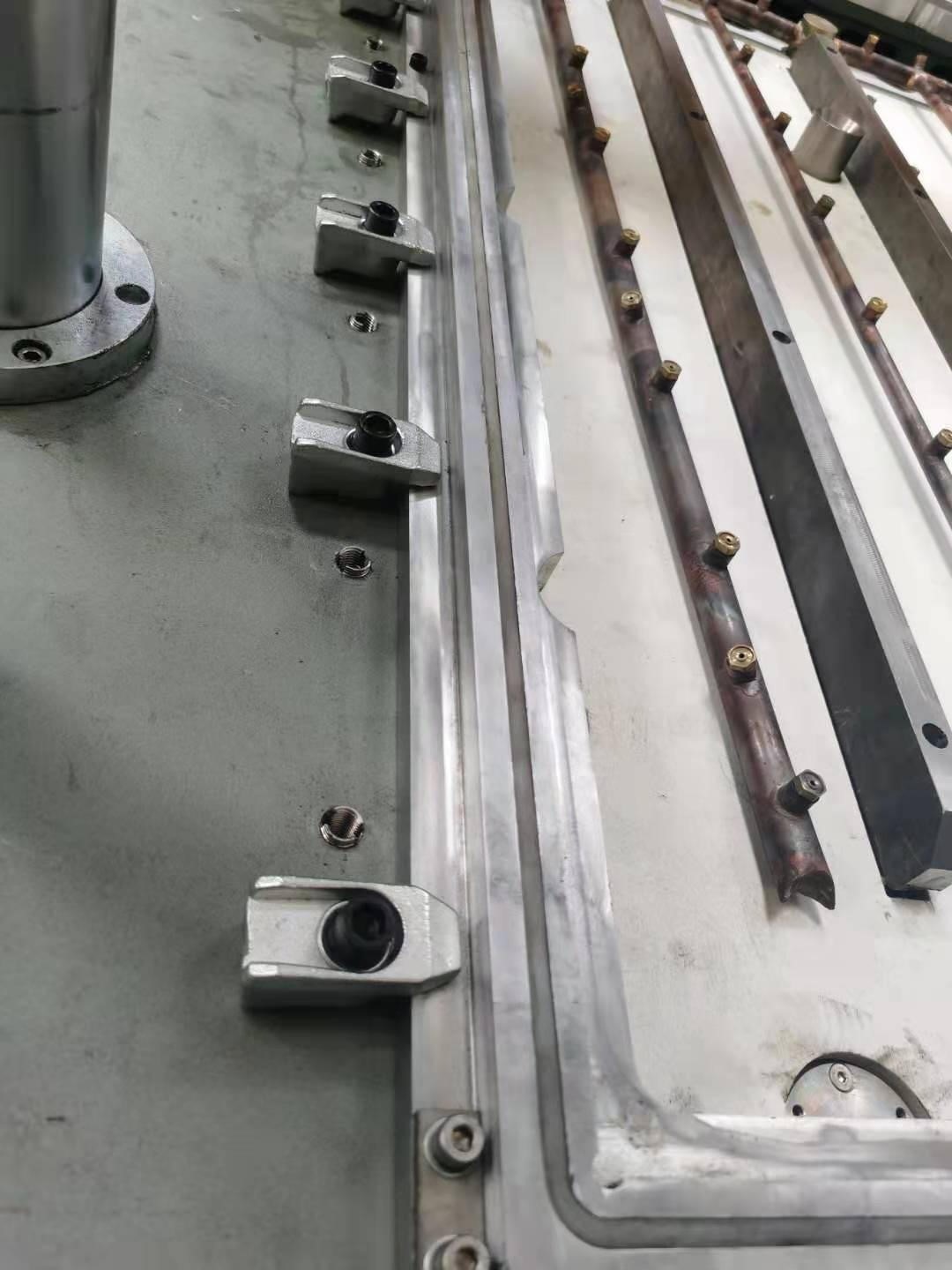

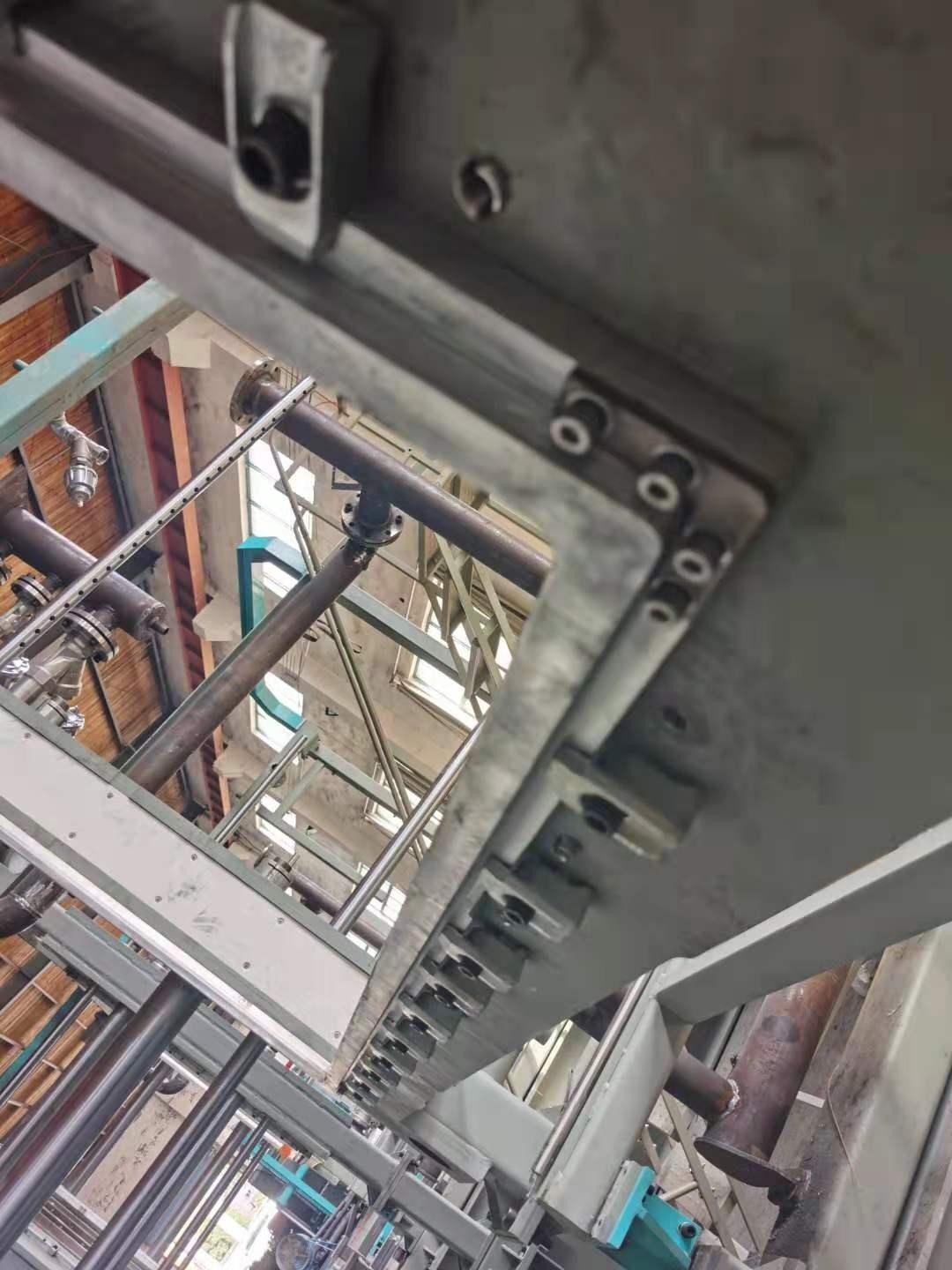

5. ·  mins quick mold change system.
