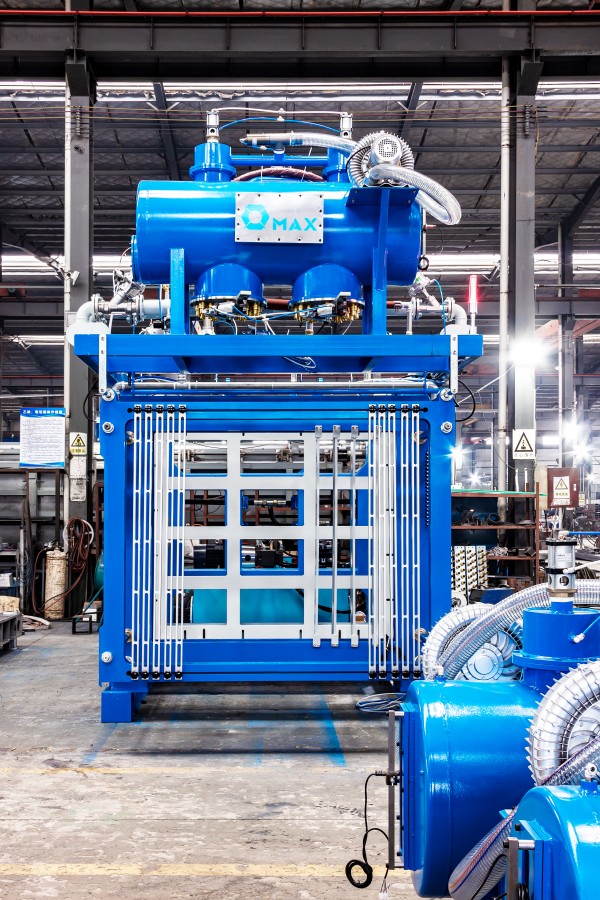

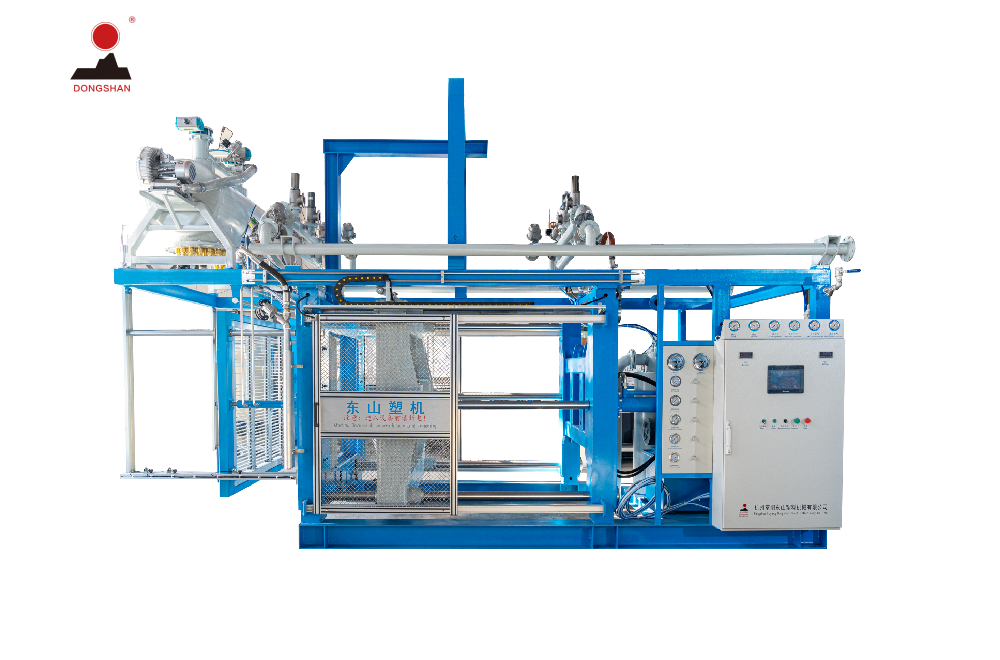

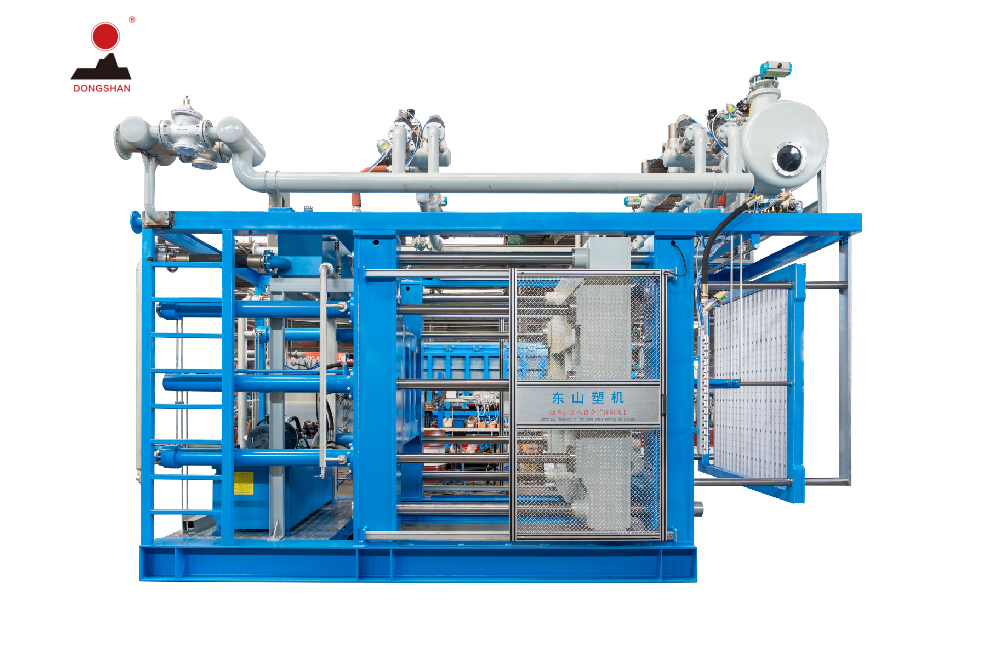

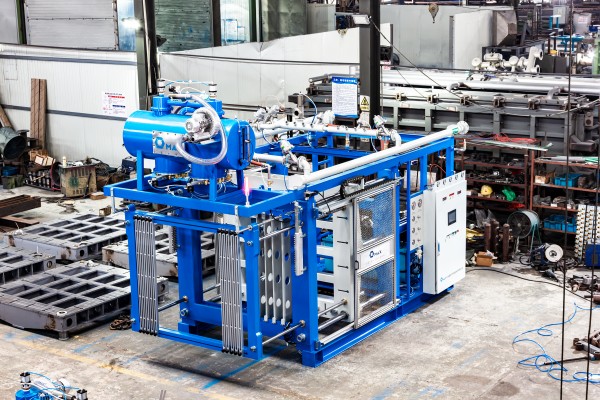

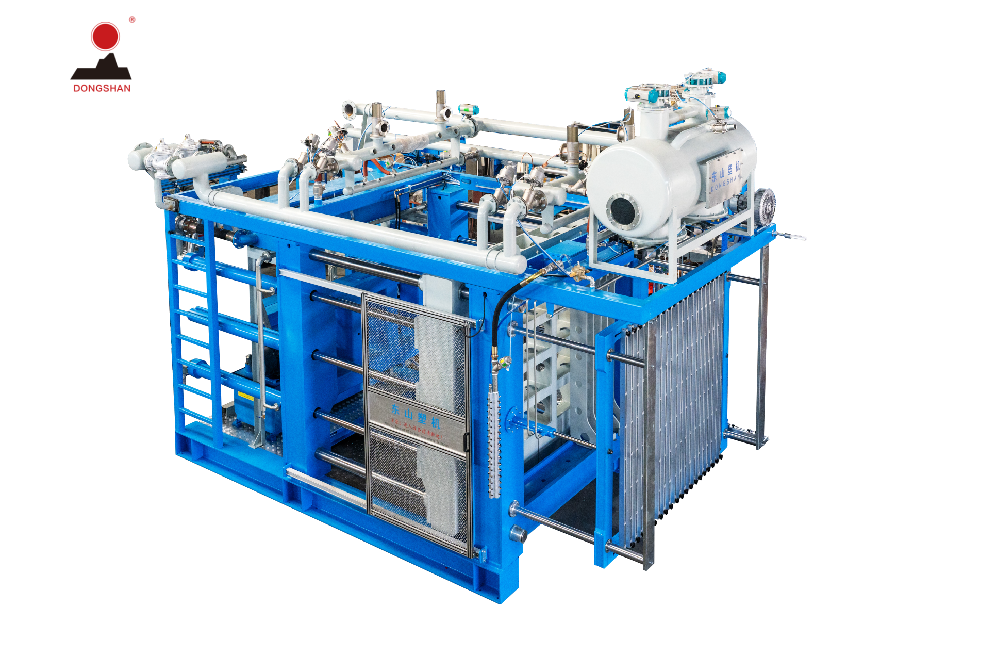

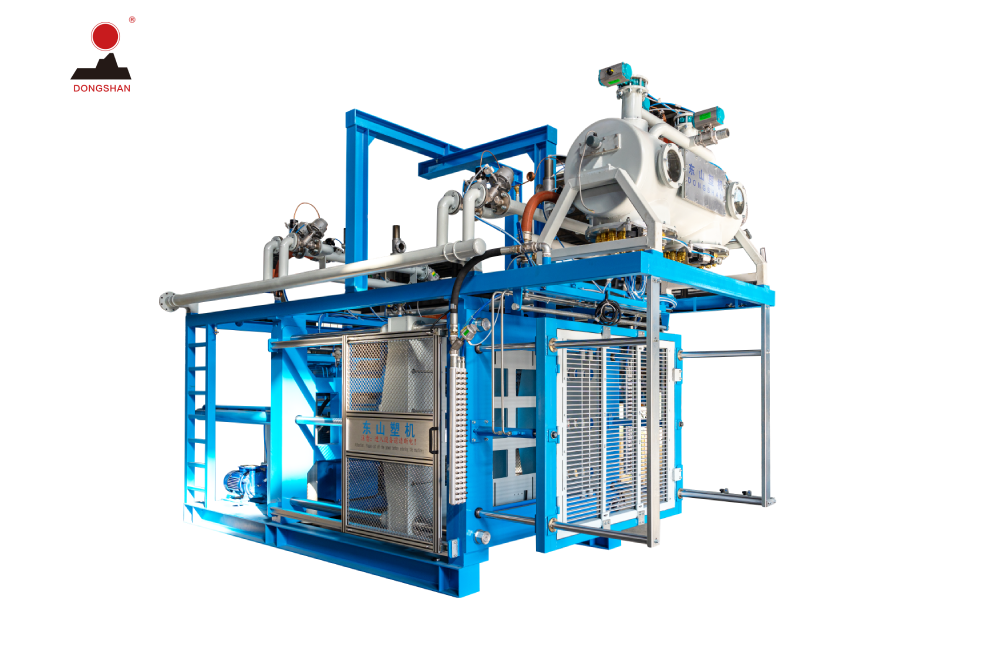

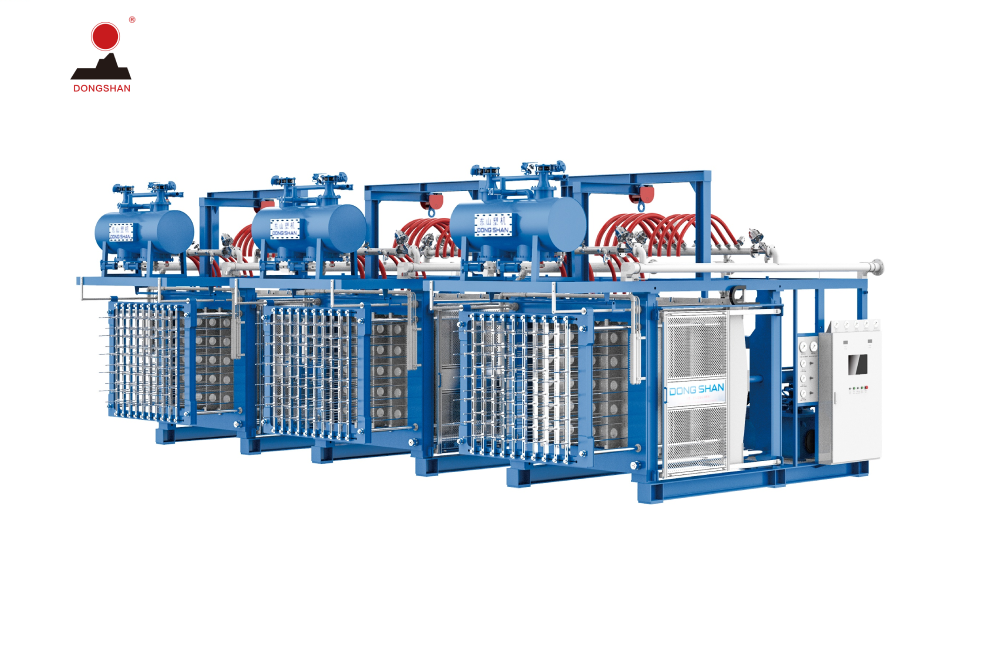

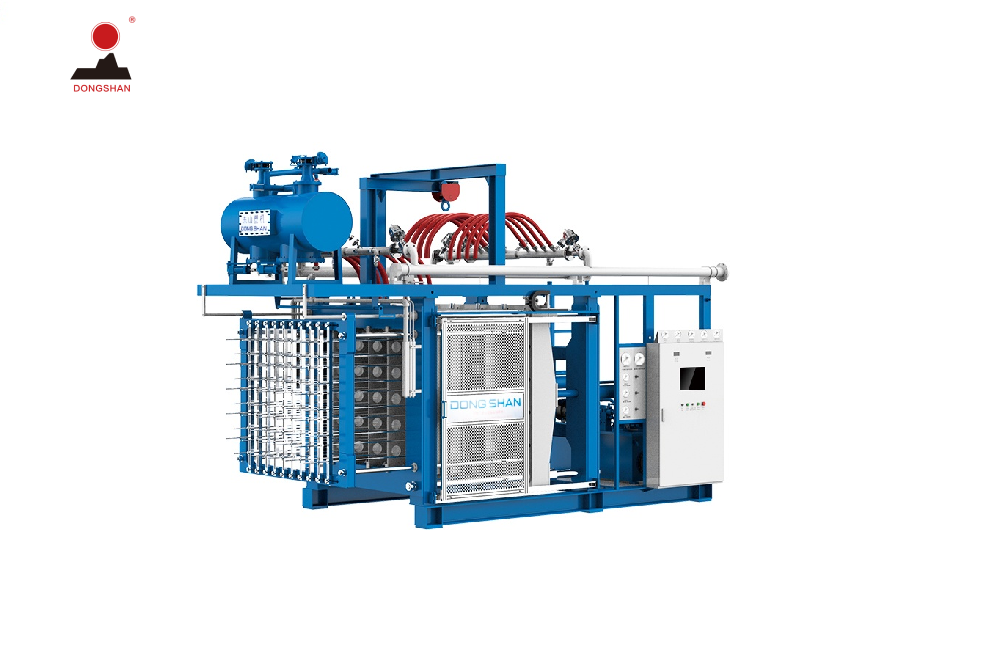

EPS Fully Automatic K-Type Shape Molding Machine for Packaging and Insulation

This EPS Fully Automatic K-Type Shape Molding Machine uses an advanced automated control system to achieve efficient and stable foam molding production. The equipment supports multiple mold sizes, making it particularly suitable for the manufacturing of electrical packaging, building insulation materials and customized EPS products.

The main advantages include:

Fully automatic operation: Reduce manual intervention and improve production efficiency;

Stable and reliable: ensure product molding consistency and high quality;

Energy-saving design: optimize energy consumption and reduce production costs;

Widely used: suitable for packaging products, building insulation board and customized EPS parts.

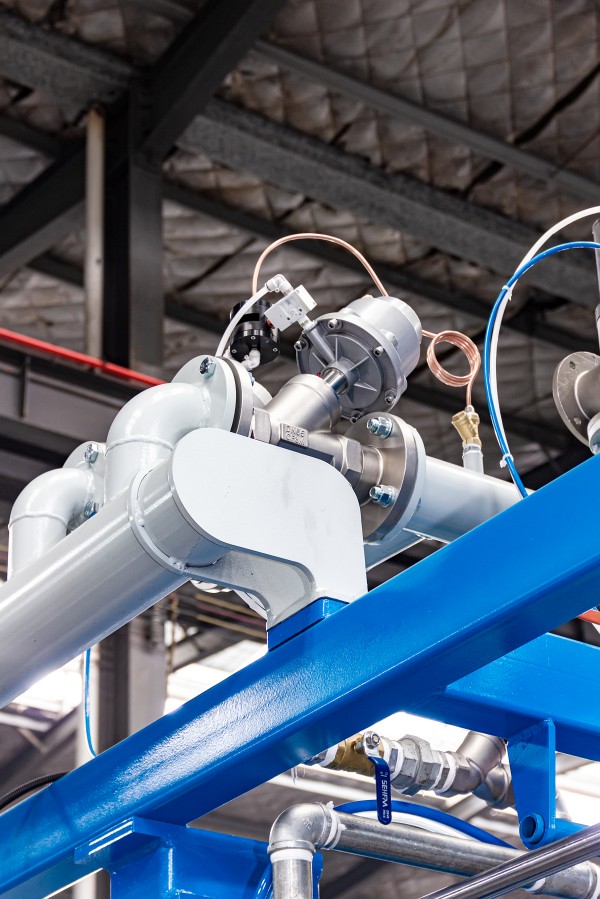

Products Detail

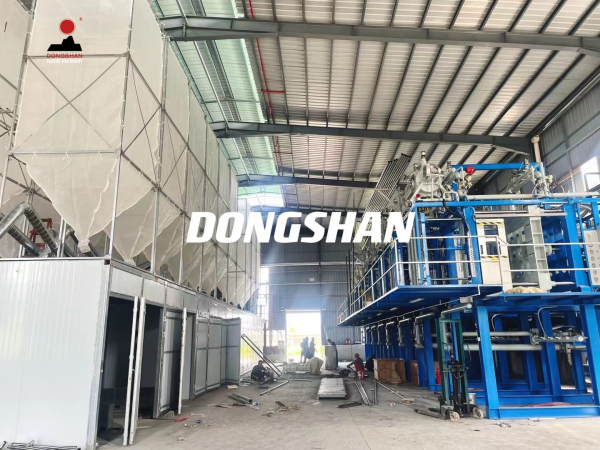

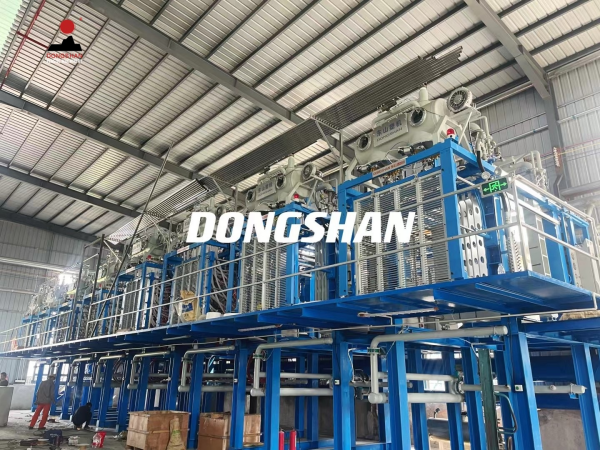

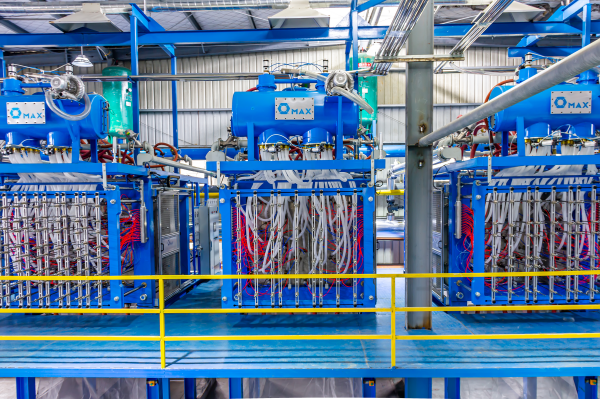

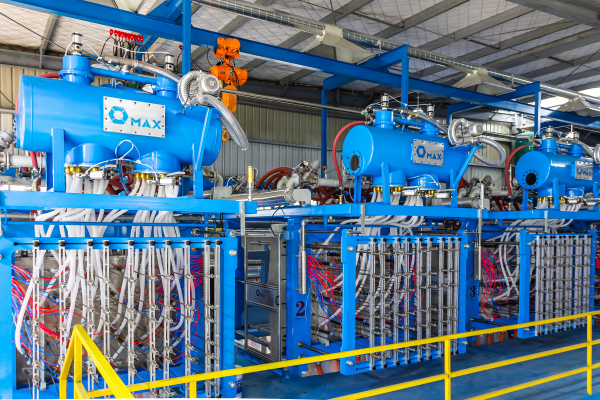

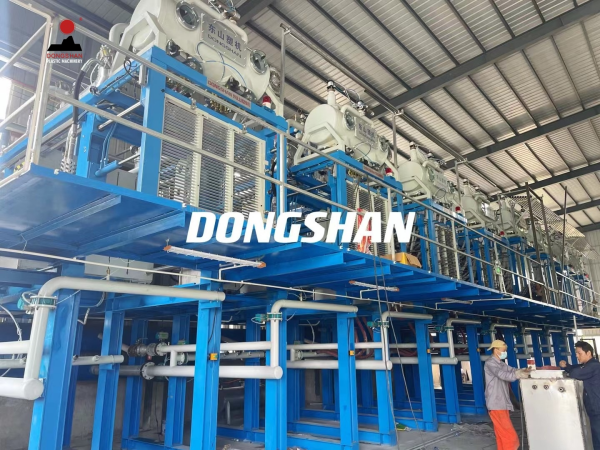

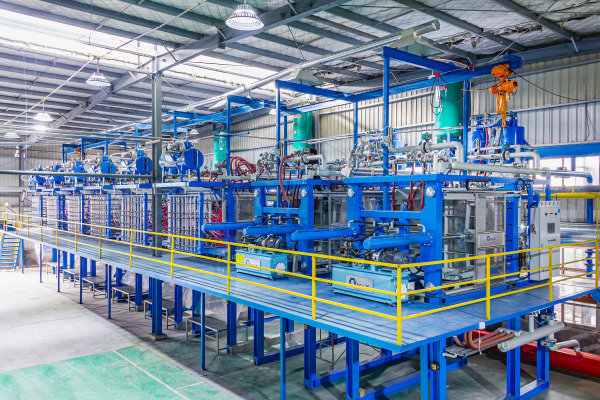

Application

Technical Data

ltem		Unit	EPS1210	EPS1412	EPS1513	EPS1750	EPS1816	EPS2216
OD of Mold		mm	1200×1000	1400×1200	1500×1300	1750×1450	1800×1600	2200×1600
Rear Window Size		mm	1100×900	1250×1100	1400×1200	1650×1350	1700×1450	2050×1450
Effective Forming Area		mm	1000×800	1200×1000	1300×1100	1550×1250	1600×1350	1950×1350
Max.Product Height		mm	400	400	400	400	400	400
Steam	Steam Pipeline	DN	100	100	100	125	125	125
	Mold Interface	DN	40×6	40×8	40×8	40×8	40×8	40×8
	Working Pressure	Kg/cm²	3~6	3~6	3~6	3~6	3~6	3~6
Air	Pipeline Interface	DN	65	65	65	80	80	80
Air	Working Pressure	Kg/cm²	4～5	4～5	4～5	4～5	4～5	4～5
Cooling Water	Pipeline Interface	DN	80	80	80	100	100	100
	Working Pressure	Kg/cm²	3～4	3～4	3～4	3～4	3～4	3～4
	Mold Interface	DN	25×6	25×8	25×8	25×8	25×8	25×8
Drainage	Vacuum Interface	DN	100	100	100	125	125	125
	Fixed and Movable Drainage	DN	80	80	80	100	100	100
	Sewage Pipe Interface	DN	100	100	100	100	125	125
	Mold Interface	DN	40X6	40X8	40X8	40X8	40X8	40X8
Hydraulic	Oil Pump Motor	Kw	5.5	5.5	5.5	7.5	7.5	11
	Size of Oil Pump	L/min	23+53	25+75	25+75	25+94	25+94	31+116
	Maximum Clamping Force	T	24	24	24	38	38	42
	Mold Opening and Closing Cylinder	mm	100×1360/2	100×1360/2	100×1360/2	125×1360/2	125×1360/2	150×1360/2
	Demoulding Cylinder	mm	50×30×450	50×30×450	50×30×450	50×30×450	50×30×450	70×40×450
Barrel	Material Barrel Capacity	m³	0.15	0.3	0.3	0.3	0.3	0.3
	Material Supplementary Blower	Kw	1.5	2.2	2.2	2.2	2.2	2.2
	Discharge Outlet	unit	32	50	50	50	50	64
Single Motor Power		Kw	7	7.7	7.7	9.7	9.7	13.2
Outer Size (LWH)		mm	5250×1750×3785	5250×1950×3785	5250X2050X3885	5430×2250×4000	5450×2230×4000	5632×2620×4100
Weight		T	4.5	5	6.5	7.5	8.5	9
