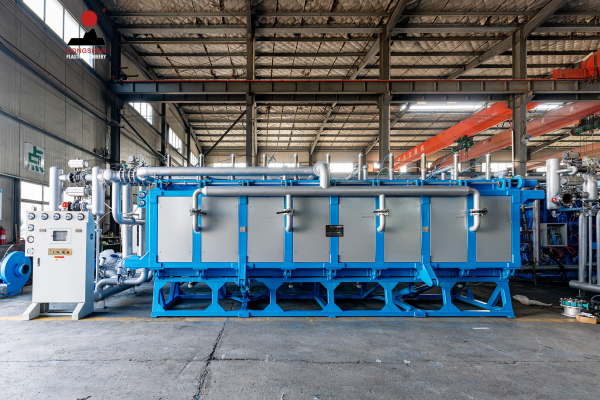

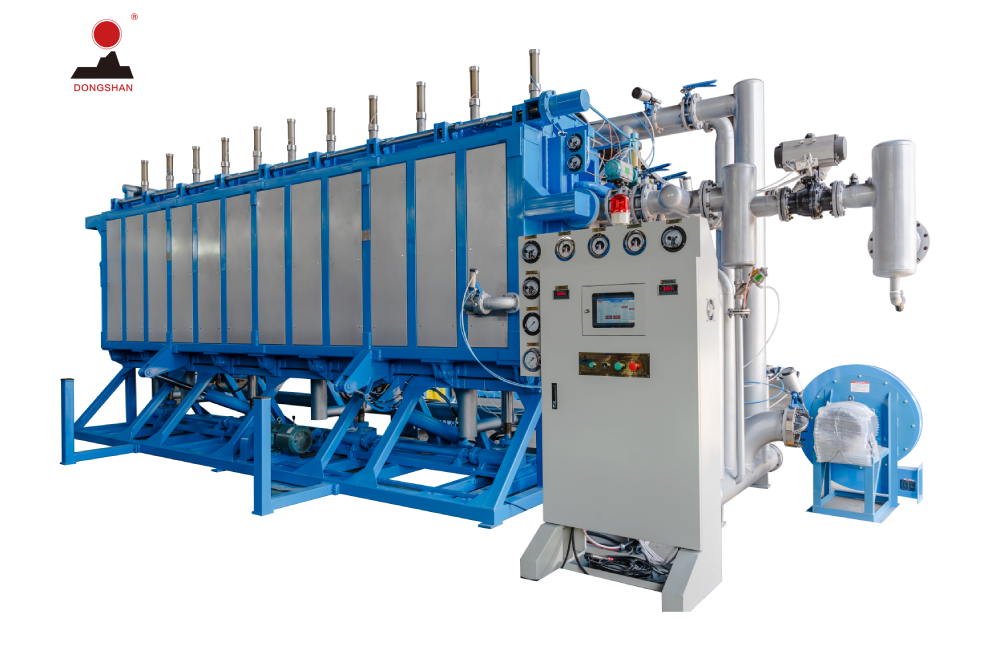

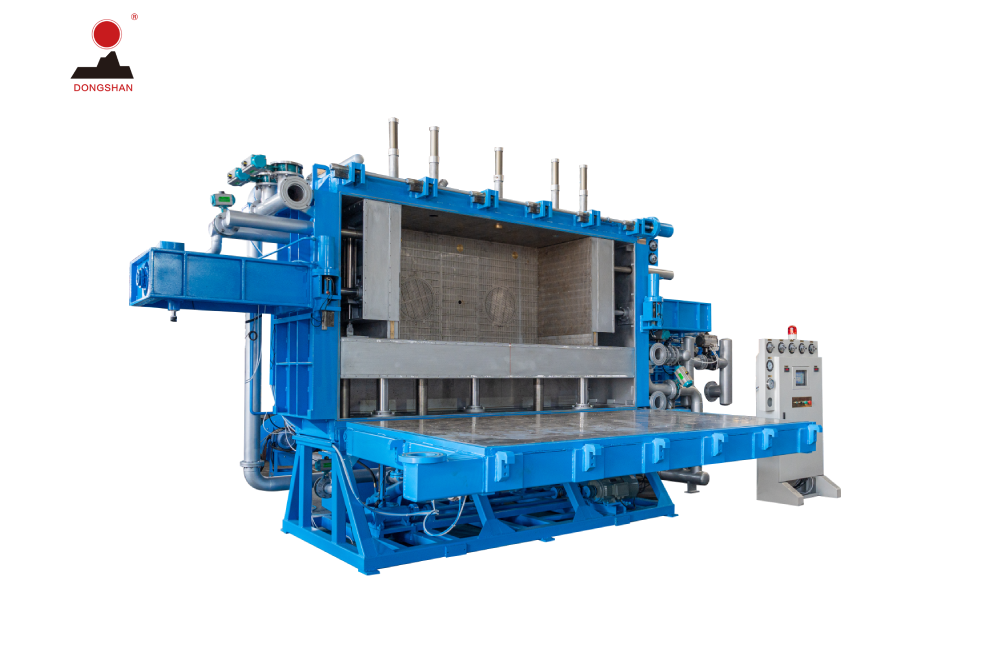

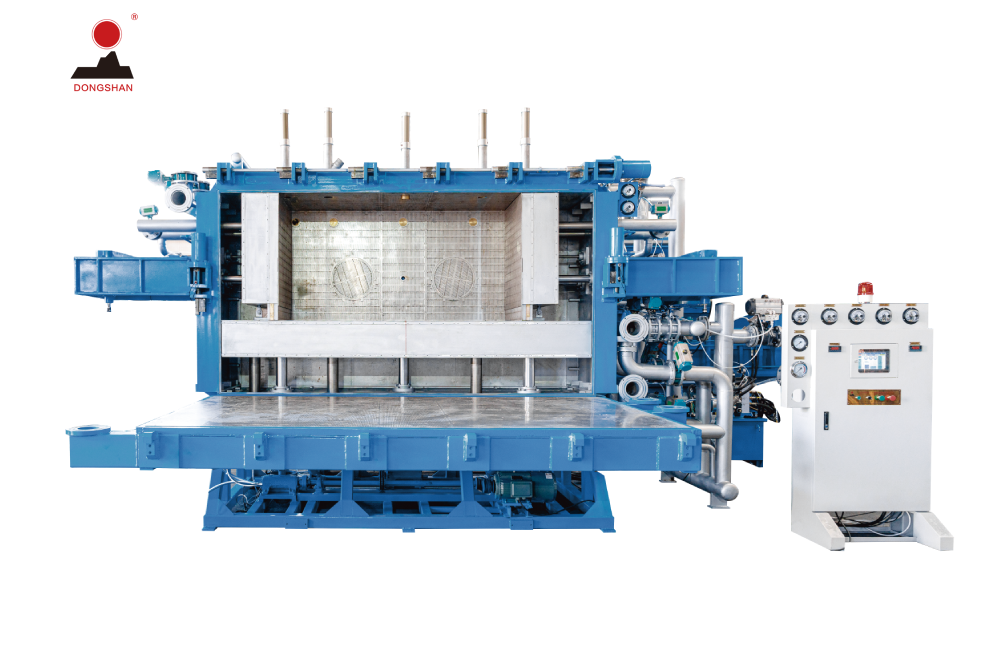

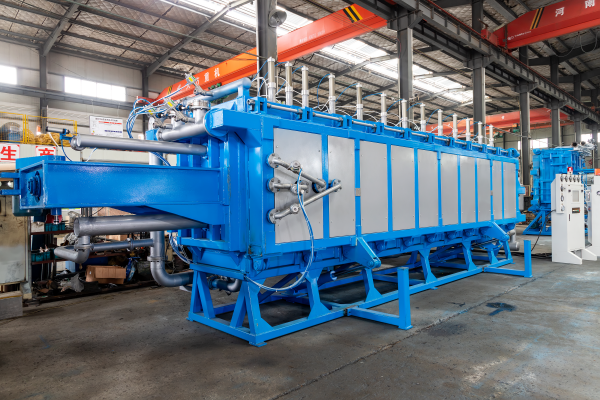

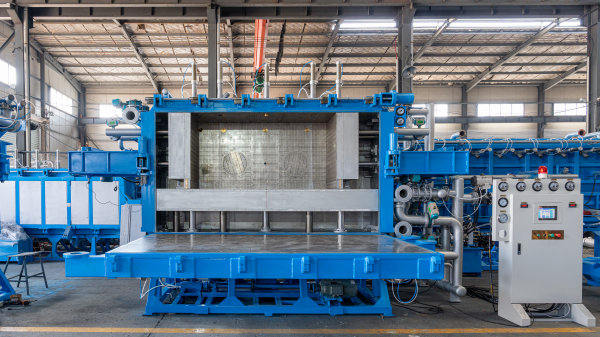

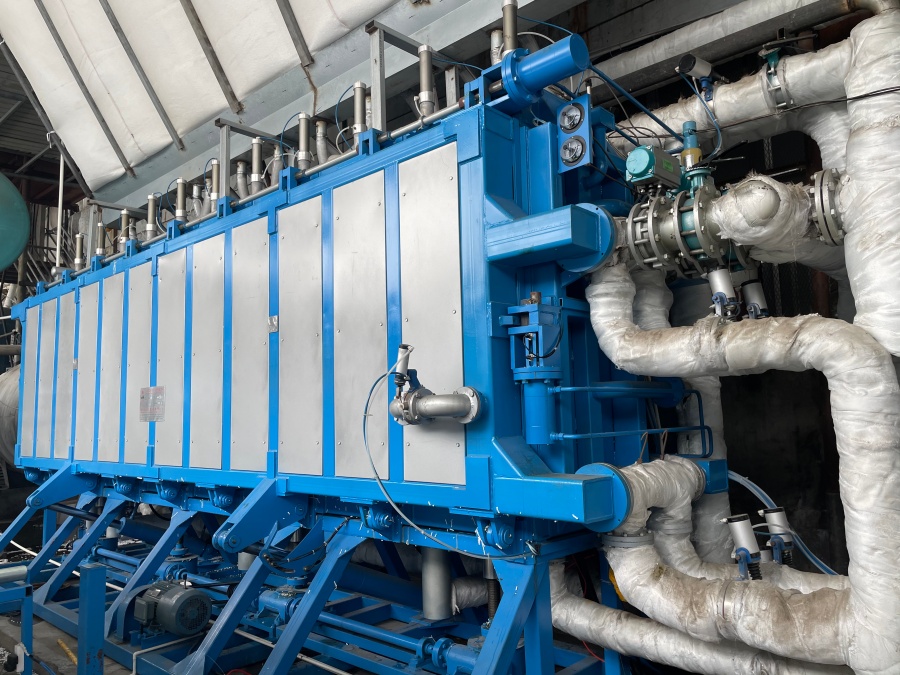

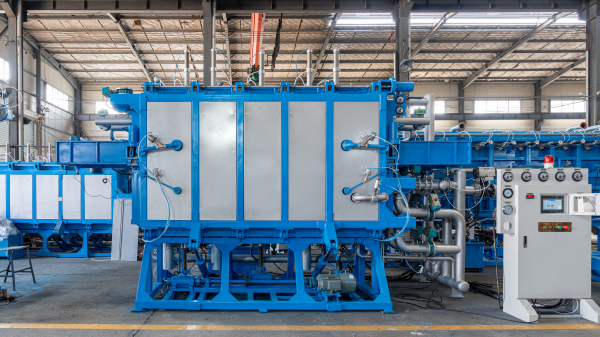

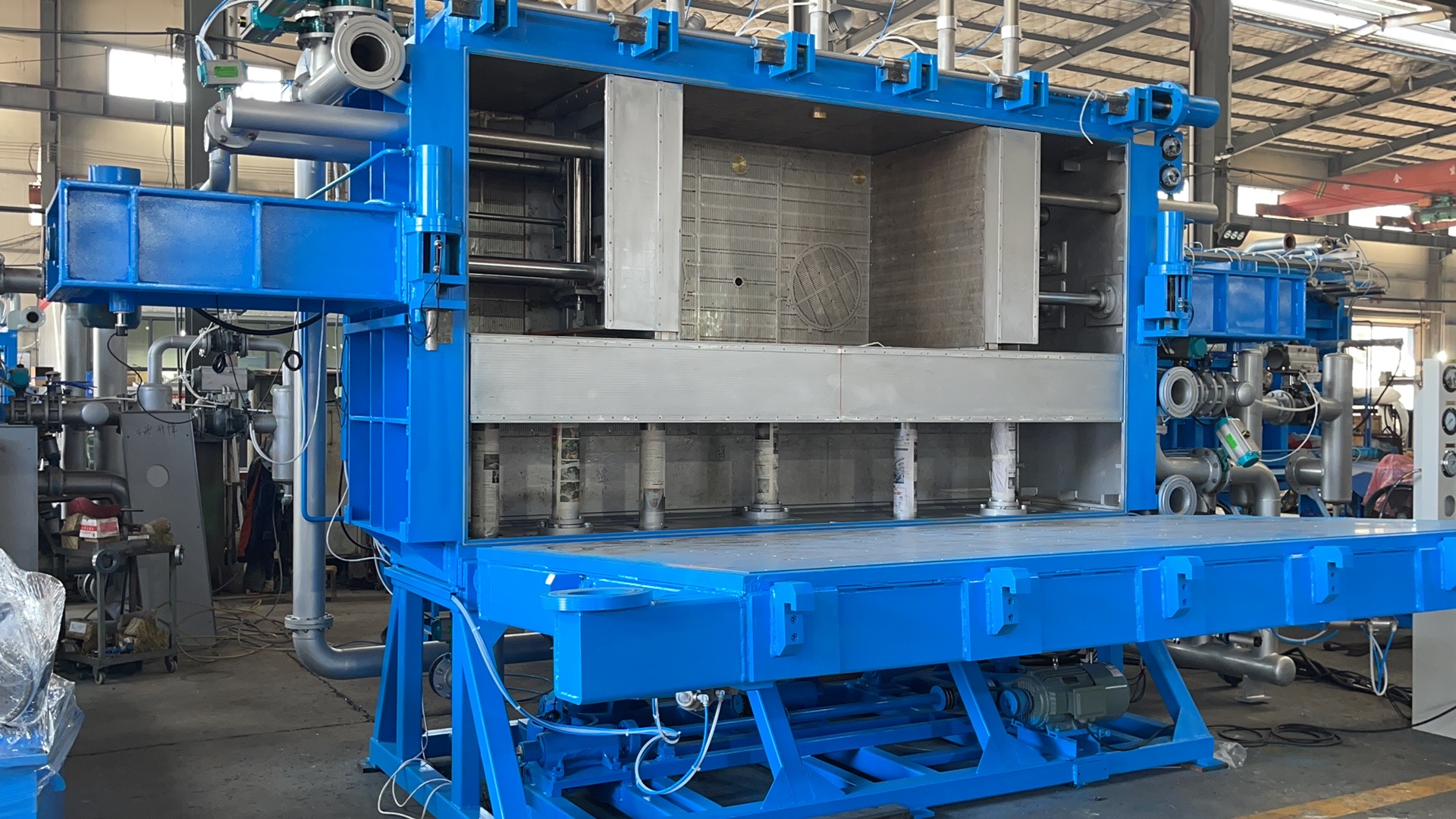

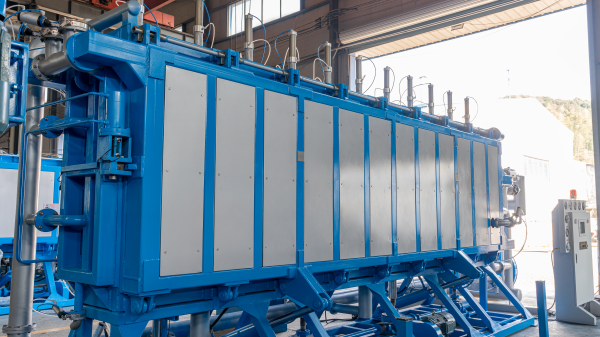

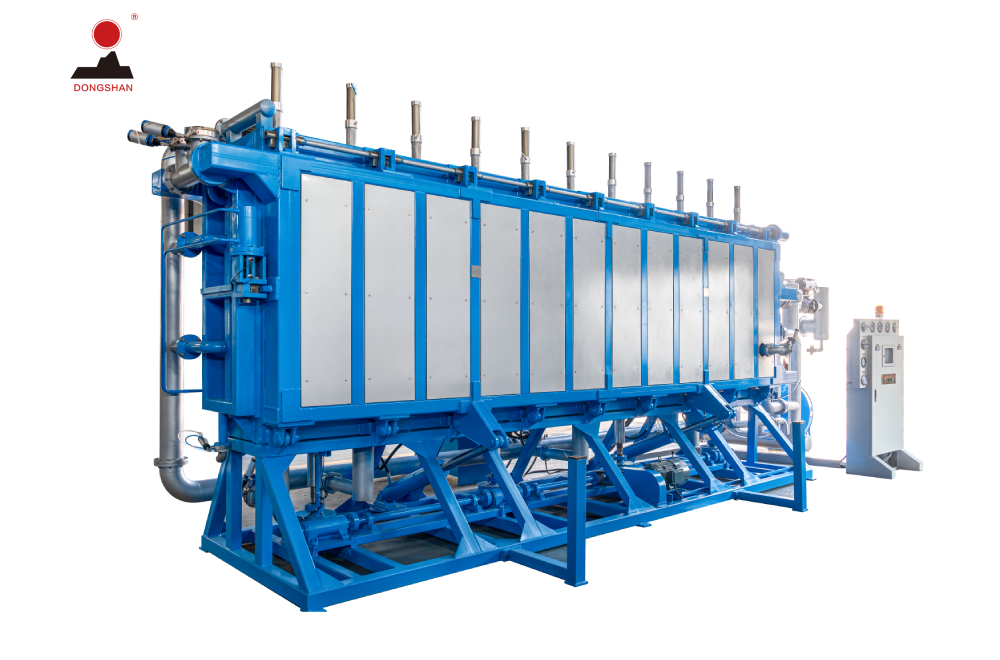

EPS Adjustable Block Molding Machine for Flexible Foam Production
This EPS adjustable foam block forming machine has been developed to meet diverse size and density needs.
The equipment supports flexible mold cavity adjustment and can quickly switch foam blocks of different specifications according to production requirements, reducing mold replacement time and cost.
The whole machine adopts an automated control system, covering feeding, heating, forming, cooling and demoulding. It has high production efficiency and simple operation.
Its energy-saving steam management and precise cooling method not only improve the strength and uniformity of the foam block, but also effectively reduce energy consumption.
Widely used in the production of insulation materials, packaging foams and lightweight filling products.
Products Detail
 |
 |
 |
 |
 |
 |
 |
 |
-
Specification
| Project | unit | SPB2000V | SPB3000V | SPB4000V | SPB6000V | SPB8000V | |
| Mold cavity specifications | mm | 2050×1240×630 | 3080×1240×630 | 4100×1240×630 | 6120×1240×630 | 8140×1240×630 | |
| Sheet size | mm | 2000×1200×600 | 3000×1200×600 | 4000×1200×600 | 6000×1200×600 | 8000×1200×600 | |
| Steam | inlet | inch(mm) | 5"(DN125) | 5"(DN125) | 6"(DN150) | 8"(DN200) | 8"(DN200) |
| consumption | kg/cycle | 25~45 | 45~65 | 60~85 | 95~120 | 115~160 | |
| pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Compressed air | inlet | inch(mm) | 1.5"(DN40) | 1.5"(DN40) | 2"(DN50) | 2.5"(DN65) | 3"(DN80) |
| consumption | m³/cycle | 1.5~2 | 1.5~2.5 | 1.8~2.5 | 2~3 | 2.5~3 | |
| pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water | Inlet | inch(mm) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) | 1.5"(DN40) |
| Consumption | m³/cycle | 0.4 | 0.6 | 0.8 | 1 | 2 | |
| Pressure | Mpa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | |
| Sewage | Vacuum drain | inch(mm) | 4"(DN100) | 5"(DN125) | 5"(DN125) | 5"(DN125) | 5"(DN125) |
| Drain outlet | inch(mm) |
4"(DN100) | 6"(DN150) | 6"(DN150) | 8"(DN200) | 8"(DN200) | |
| Cold air outlet | inch(mm) | 4"(DN100) | 5"(DN125) | 6"(DN150) | 8"(DN200) | 8"(DN200) | |
| Production capacity 15kg/m³ | min/cycle | 4 | 6 | 7 | 8 | 8 | |
| Installed power | KW | 23.75 | 26.75 | 28.5 | 37.75 | 45.75 | |
| Dimensions (L*W*H) | mm | 5700×4000×3300 | 7200×4000×3500 | 11000×4500×3500 | 12600×4500×3500 | 15700×4600×3500 | |
| weight | KG | 8000 | 9500 | 15000 | 18000 | 21000 | |
